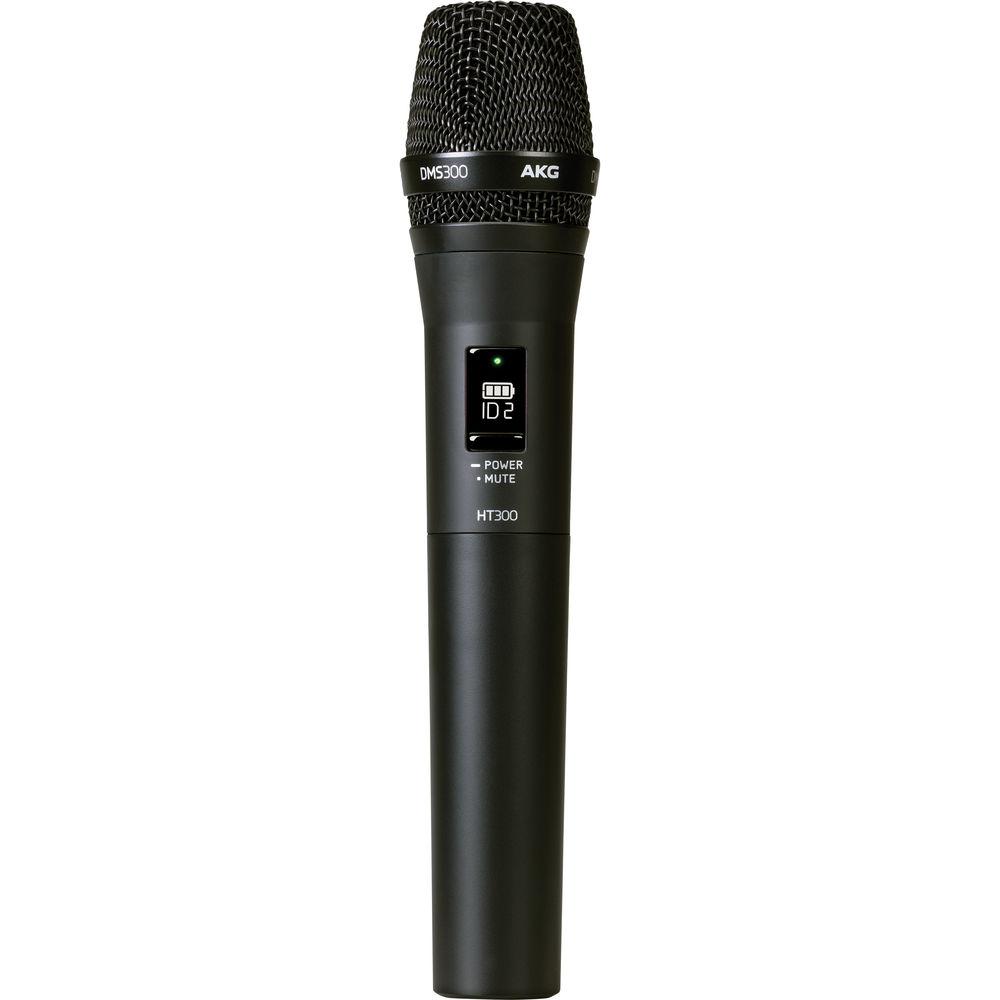

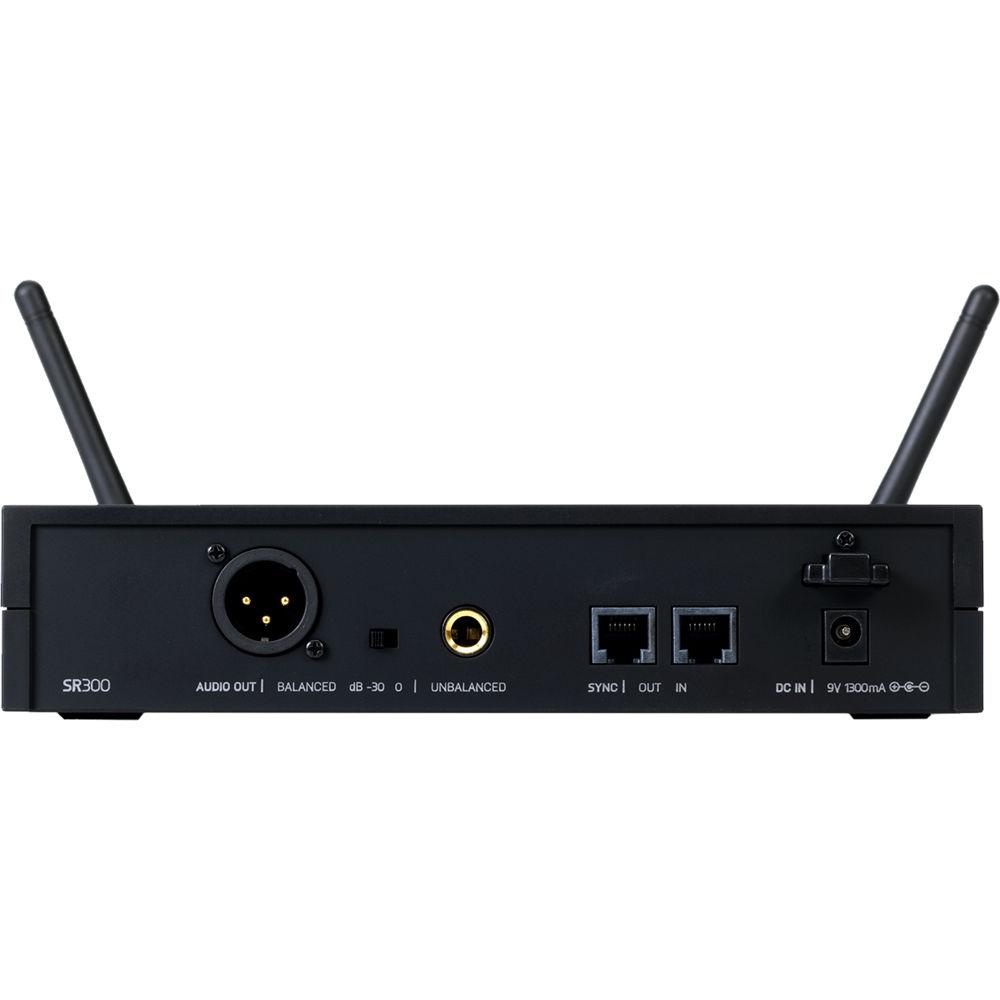

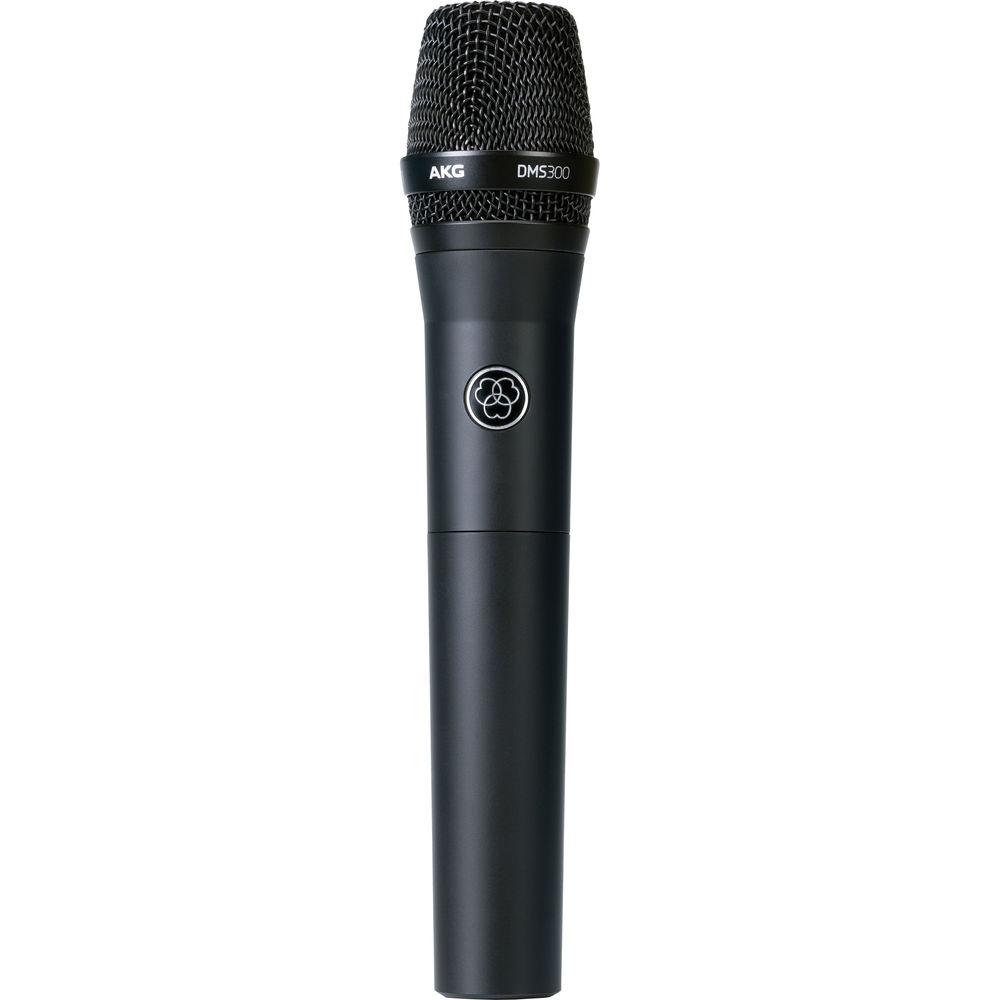

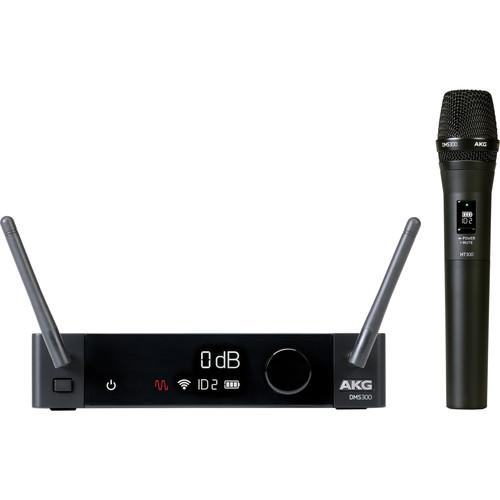

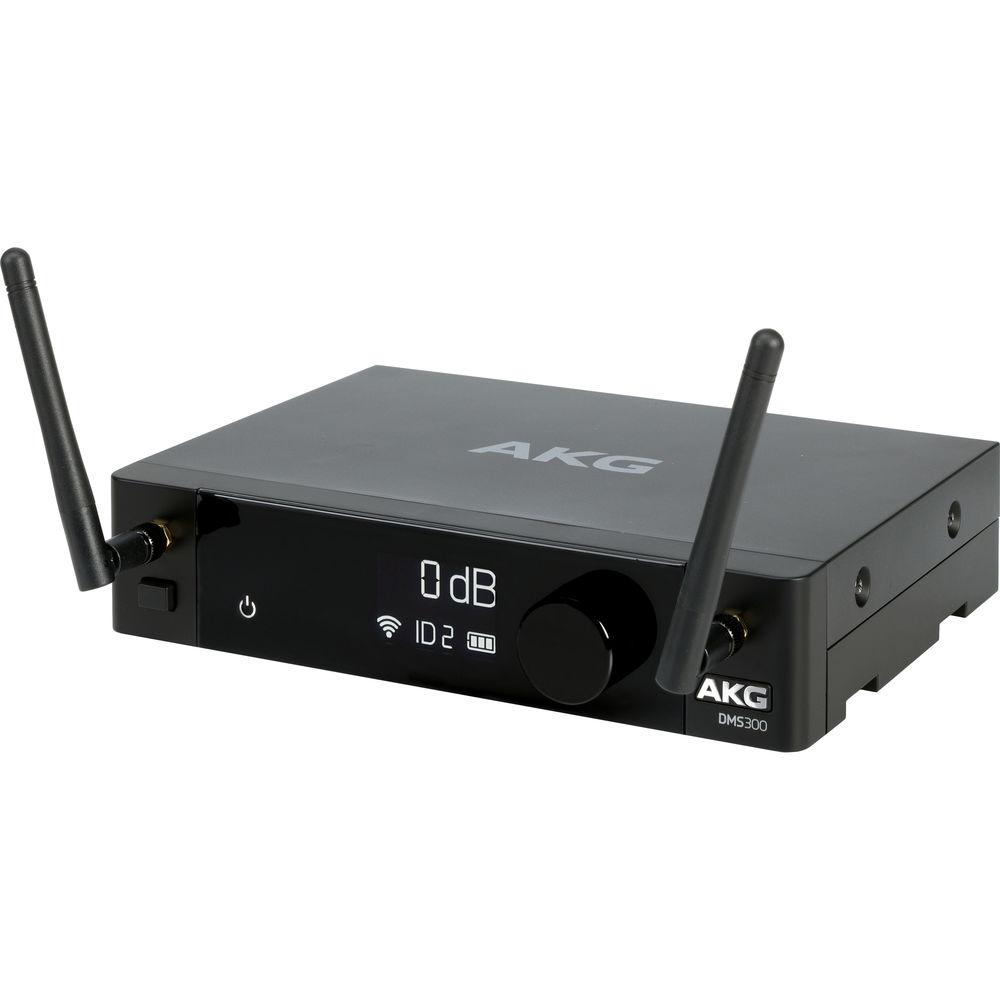

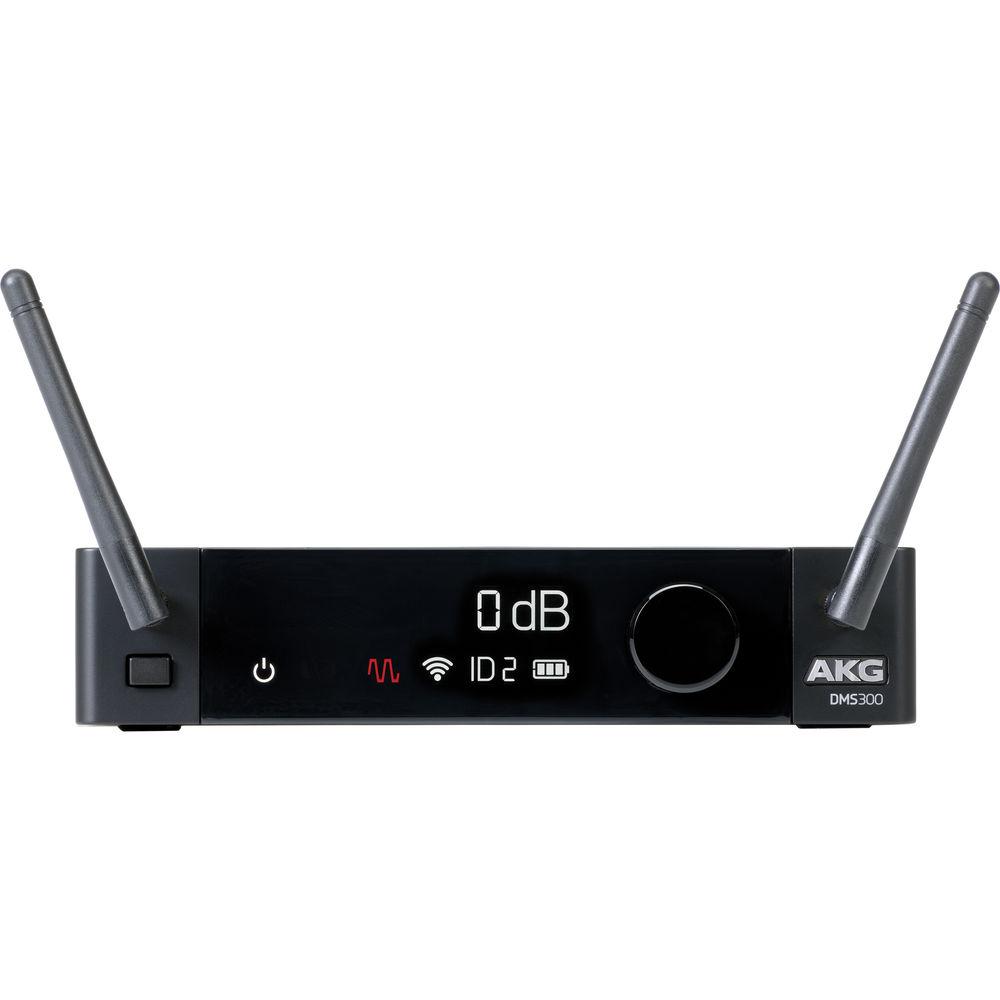

User Manual for AKG DMS300M 2.4 GHz Digital Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the AKG DMS300M 2.4 GHz Digital Handheld
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
 |
User manual for the AKG DMS300M 2.4 GHz Digital Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The DMS300M 2.4 GHz Digital Handheld Wireless Microphone System from AKG is a 24-bit/48 kHz uncompressed audio and license-free system with AES 256-bit encryption, extended battery life, and easy-to-use operation. It can be used by vocalists, public speakers, and educators to deliver wireless audio for live stage, boardroom, and rehearsal applications.The handheld, vocal-ready DMS300 wireless microphone can support up to eight co-existing wireless systems and has an operation range of 100'. It includes a universal AC power adapter and a stand clip to securely mount the microphone on a microphone stand. This makes it an ideal solution for performing musicians, houses of worship, fitness instructors, educators, and anyone who seeks both studio-quality sound and the freedom of movement. - Rock-Solid 2.4 GHz Operation
- The wireless universe is constantly posing challenges for operating analog wireless microphone systems within increasingly narrow frequency allocations. The AKG DMS300 digital wireless system operates in the 2.4 GHz band. It is a global, license-free space with less RF interference.
- Plug and Play
- The DMS300 system is designed from the ground up for intuitive operation. Channel pairing is push-button painless, with color coding to make for easy identification. Adaptive channel selection takes the guesswork out of locating available wireless channels. Up to eight DMS300 systems can be synced and used together simultaneously.
- A Focus on Fidelity
- Enjoy pristine, studio-quality sound: the handheld microphone offers 24-bit, 48 kHz resolution and a linear frequency response. Plus, digital transmission means you'll encounter none of the interference found in traditional analog wireless systems.
- Secure Communications
- If you're sharing sensitive information, trust the DMS300 built-in advanced AES 256-bit encryption to protect your signal and keep your wireless audio communications private. It is suitable for small-to-medium corporate and small-business users in need of private, secure wireless communications.
UPC: 885038040668 In the Box AKG DMS300M 2.4 GHz Digital Handheld Wireless Microphone System HT300 Handheld Microphone Transmitter SR300 Stationary Receiver 2 x AA Batteries Microphone Stand Adapter Universal AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG DMS300M 2.4 GHz Digital Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG DSM300 Specs | Carrier Frequency | Digital 2.4 GHz | | Encryption | 256-Bit AES | | Simultaneous Operation of Units | Yes, up to 8 x Coexisting Systems | | Working Range | 100' / 30 m | | Latency | <=2.9 ms | | Channel Assignment | Adaptive Channel Selection | | Diversity Method | Antenna, Time, and Frequency | | Frequency Response | 70 Hz to 20 kHz +1/-3 dB | | Dynamic Range | 116 dB @ 1 kHz | | Signal to Noise | >90 dBA | | Rack Mountable | Yes, with Optional Rackmount Kit | | Battery | 2 x AA Alkaline | | Battery Life | 12 hours | | Receiver Dimensions (L x W x D) | Receiver: 7.9 x 7.2 x 1.7" / 20.1 x 18.3 x 4.3 cm | | Transmitter Dimensions (W x L) | 2.0 x 9.8" / 5.1 x 24.9 cm | | Weight | Receiver: 0.89 lb / 0.40 kg
Transmitter: 0.65 lb / 0.29 kg (with batteries) |
