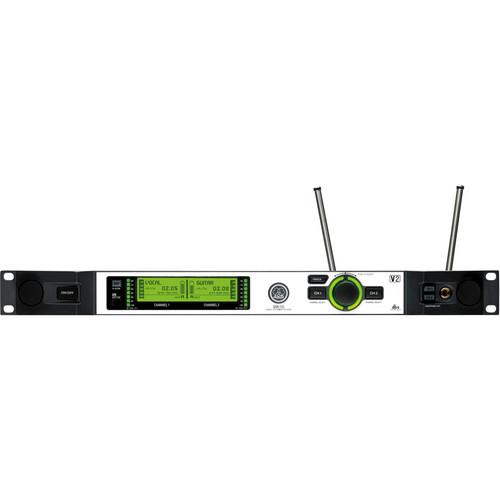

Product description The AKG DSR700 V2 Digital Wireless Stationary Receiver offers two channels and an ultra-wide bandwidth of up to 155MHz for reliable operation with great flexibility. It comes in a durable, 19" housing and works with all DMS700 V1 and V2 transmitters. The DSR700 V2 is designed for demanding theater, conference, live-production and rigorous tour-sound applications.
The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared. The environment scan converts the DSR700 V2 into a spectrum analyzer. It scans the receiver's entire frequency band for active radio frequencies and displays the spectrum. The receiver is designed to deliver dependable, high-quality digital audio with quick and easy operation, and with a bandwidth of up to 155 MHz, it gives the user the necessary flexibility for even a very crowded radio environment.
The 512-bit audio encryption offers high security for courtroom, boardroom and other confidential meeting environments. An optional network remote control allows frequency coordination and monitoring of multichannel systems by PC software System Architect, Apple iPhone/iPad/iPod or Soundcraft Vi consoles. For easy configuration of large systems, all components are available individually. - 19" rugged all-metal construction for secure rack-mounting and transportation
- Intuitive user interfaces simplifies system setup, spectrum analyzer usage and rehearsal function
- Graphic spectrum analyzer provides a clear overview of radio frequencies
- Integrated digital signal processing with low-cut filter, three-band equalizer, dbx compressor and dbx limiter
- Analog and digital audio outputs 2 x balanced XLR, 2 x unbalanced jack connectors
- AES/ EBU-output with world clock input
- 512-bit signal encryption provides a unique audio protection
- Infrared link of all setup data to the transmitter
In the Box AKG DSR700 V2 Digital Wireless Stationary Receiver (Band 1: 548.1 - 697.9) 2 x BNC UHF Antennas IEC Power Cord US IEC Power Cord EU Front-Mount Antenna Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG DSR700 V2 Digital Wireless Stationary Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG DSR700 V2 BD1 Specs | | | Audio Frequency Response | 25 to 20000 Hz (± 3 dB) | | Signal-to-noise | 120 dB-A | | THD | 0.05% at 1 kHz | | | | Operating Temperature Range | 14 to 131 °F (-10 to 55 °C) | | Radio Sensitivity | -98 dBm | | | | Frequency Range | Band 1: 548.1 to 697.9 MHz | | Switching Bandwidth | 155 MHz | | Recommended Simultaneous Channels | 40 | | Number of Selectable Frequencies | 6160 (selectable in 25 kHz steps) | | Frequency Selection | Selectable frequency in 25 kHz steps | | Range Coverage | 328' (100 m) (depending on antenna system) | | Switchable RF Power | Yes | | Modulation | Digital FSK | | Encryption | 512 bit | | Diversity | Digital Diversity | | Pilot Tone | No | | | | Number | 2 | | Type | BNC | | Gender | Female | | Note | Radio input for connection to remote antennas | | | | Number of Outputs | 2 | | Type | Balanced XLR | | Gender | Male | | Contacts | 3-pin | | Note | Balanced audio output | | | | Number of Outputs | 2 | | Type | Unbalanced Jack (1/4") | | Gender | Female | | Contacts | 3-pin | | Note | Unbalanced audio output | | | | Number of Outputs | 1 | | Type | Balanced XLR | | Gender | Female | | Contacts | 3-pin | | Note | AES/EBU digital audio out for both channels (48 kHz) | | | | Number of Outputs | 1 | | Type | Jack Stereo / TRS (1/4") | | Gender | Female | | Contacts | 3-pin | | Note | Headphone Output | | | | Number | 1 | | Contacts | 4-pin | | Gender | Female | | Note | Connector for optional HUB4000Q for remote computer control | | Type | RJ 10 data (4P4C) | | | | Power Supply | Internal | | Type | IEC Socket | | Voltage | 90 to 240 V | | | | Transmitter Synchronization | Infrared | | HiQnet Compatible | Yes (via HUB4000 Q) | | Rack Size | Full Racksize (19") | | Rack Height | 1 RU | | Body Material | Metal | | Dimensions (L x H x W) | 8.74 x 1.69 x 18.9" (222 x 43 x 480 mm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 21.9 x 10.5 x 4.6" |
