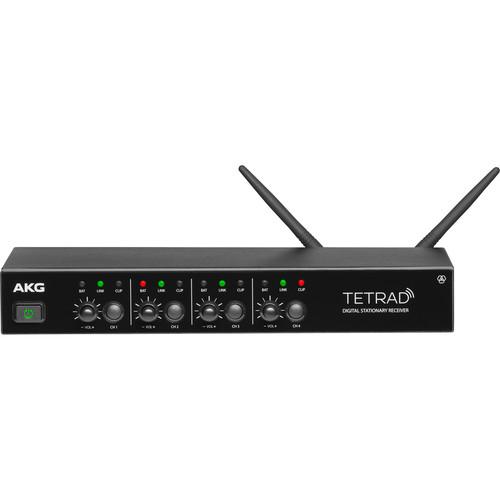

User Manual for AKG DSRTetrad Digital Wireless 2.4 GHz Multichannel Receiver Click to enlarge the picture
Contents of the user manual for the AKG DSRTetrad Digital Wireless 2.4 GHz
- Product category: Wireless Receivers AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Receivers
|
User manual for the AKG DSRTetrad Digital Wireless 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The DSRTetrad Digital Wireless 2.4 GHz Multichannel Receiver from AKG is a four-channel receiver that can work with up to four channels of audio simultaneously and can be mixed down directly to its balanced XLR summing output. It can be used when paired with a DHTTetrad handheld or DPTTetrad bodypack transmitter (sold separately) in applications for live sound, club music, conferences, presentations, seminars, and more. The DSRTetrad's dynamic frequency selection (DFS) guarantees that only the cleanest frequency bands are automatically selected for the connection between receivers and transmitters. DROCON is an AKG developed technology implemented in the system which is designed to conceal occurring dropouts and thus prevent the clicks they can cause. The one-click pairing function of the DSRTetrad receiver allows the system to be up and running quickly. The receiver is built with LEDs indicators to help you monitor battery and clipping status directly on the front panel. A rack mount kit with detachable antennas and antenna cables is included, allowing the receiver's antennas to be front mounted. The DSRTetrad wireless receiver can be used with four handheld or bodypack transmitters (sold separately). - Dynamic frequency selection in the 2.4 GHz ISM band
- Easy setup functions designed for less experienced operators
- Four channels can be run simultaneously
- Off function for all transmitters
- LEDs to monitor clipping and battery status
- Four balanced channel and one sum outputs
- Standalone 19" rack mount brackets
UPC: 885038038641 In the Box AKG DSRTetrad Digital Wireless 2.4 GHz Multichannel Receiver 2 x Detachable Antennas 2 x Antenna Cables Rack Mount Kit AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG DSRTetrad Digital Wireless 2.4 GHz Multichannel Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3455H00040 Specs | Carrier Frequency Range | 2.4 GHz | | Switching Bandwidth | DFS (2,404 - 2,420 GHz; 2,430 - 2,446 GHz; 2,454 - 2,470 GHz) | | RF Output | Max 100 mW | | Diversity | Digital diversity | | Modulation / Bandwidth | OFDM 16 MHz | | Gain | 0 - 1.4 Vrms | | Audio Transmission | Uncompressed, digital 24-bit/48 kHz | | Frequency Response | 20 Hz to 20 kHz (± 1 dB) | | Total Harmonic Distortion (THD) | ≤ 0.05% | | Dynamic Range | 120 dB(A) | | Encryption | 128-bit AES | | Audio Outputs | 5x XLR balanced, (4x channel, 1x sum) | | Range | Indoor: 98.4' (30 m) NLOS (Non-line-of-sight)
Outdoor: 164' (50 m) LOS (Line-of-sight) | | Power Requirements | 12 VDC, 0.5 A | | Dimensions (L x W) | Standalone: 12.0 x 1.8 x 7.3" (300 x 45 x 185 mm)
Rack: 19.0 x 1.8 x 7.3" (485 x 45 x 185 mm) | | Weight | 2.6 lb (1200 g) | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 20.3 x 10.2 x 2.9" |
