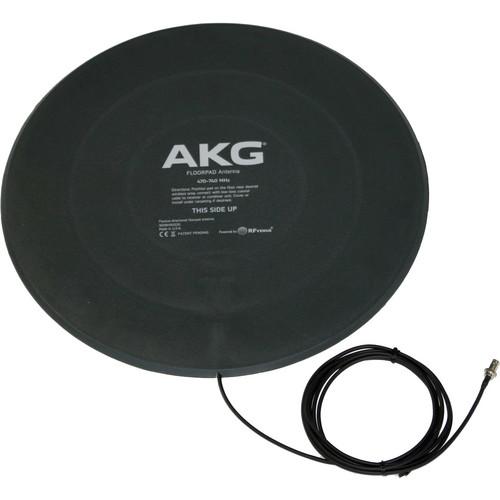

User Manual for AKG Floorpad Passive Circularly Polarized Directional Antenna Click to enlarge the picture
Contents of the user manual for the AKG Floorpad Passive Circularly Polarized Directional
- Product category: Antennas AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Antennas
|
User manual for the AKG Floorpad Passive Circularly Polarized Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The Floorpad Passive Circularly Polarized Directional Antenna from AKG is for applications when a relatively small coverage area is required. The Floorpad is designed to cover a radius of about 37' from the transmitter.
Since it is not a high-gain system and it is placed on the ground, the Floorpad is designed to maintain a high-quality RF link to the wireless audio device while reducing interference sources outside its range. This gives the wireless equipment tactical advantage against TV transmitters, devices in the venue, or systems operating nearby. The PVC molded pad is designed to withstand heavy weight. - Works with wireless microphone and IEM systems, UHF 470 - 740 MHz
- 19" diameter, 1/4" thick PVC floor pad can be hidden under carpeting, podium, or staging
- Designed for near field 37' (12m) radius in highly congested RF environment
- Increases signal quality while decreasing unwanted signals from out of range
- Water resistant for indoor and outdoor use
In the Box AKG Floorpad Passive Circularly Polarized Directional Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Floorpad Passive Circularly Polarized Directional Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3009H00220 Specs | Operating Frequency Range | 470 - 740 MHz | | Antenna Gain | -1 dBi | | Pattern | Floor Omni | | Angle of Coverage | 180 grad | | Average Return Loss | -7.04 dB | | Impedance | 50 Ω | | Connector | Female BNC | | Cable Length | 10' (3.2 m) | | Operating Temperature | -14° to 40° F (-10° to 40° C) | | Dimensions (Ø x H) | 19 x 0.26" (483 x 7 mm) | | Weight | 3.3 lb (1.5 kg) |
