User Manual for AKG GN30E5 - 12" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules with 5-pin XLR Connector and Large LED Ring

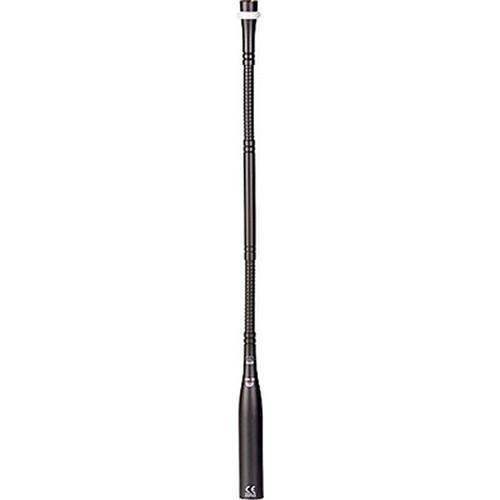

Click to enlarge the picture
AKG GN30E5 - 12" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules with 5-pin XLR Connector and Large LED Ring Contents of the user manual for the AKG GN30E5 - 12" Gooseneck with
  • Product category: Modular Microphone Components AKG
  • Brand: AKG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AKG Modular Microphone Components

User manual for the AKG GN30E5 - 12" Gooseneck with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AKG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!



Product description

Designed for permanent installation, the AKG GN series goosenecks are designed in 3 fixed lengths. The GN15 measures approximately 6 inches in length, the GN30 is 12 inches and the GN50 is 20 inches. The goosenecks are completely compatible with AKG CK series microphone capsule modules.This model features a 5-pin XLR male output and large LED ring for enhanced visibility. The LED ring indicates an active microphone and the 5-pin XLR connection will carry audio signal as well as power to the LED ring from a separate power supply, e.g., a Logic out from the AS 16 x 12 automatic mixer. The goosenecks feature a bass roll-off switch and quiet gooseneck positioning. The bass roll-off filter eliminates low frequency noise caused by ambiance, ground and structure noise.
    5-pin XLR and Large LED Ring
  • A 5-pin XLR male output and large LED ring are provided. The LED ring indicates an active microphone and the 5-pin XLR connection will carry audio signal as well as power to the LED ring from a separate power supply.
    Modular Design
  • The GN series goosenecks are completely compatible with the CK series modular microphone capsules.
    Bass Roll-Off
  • Low frequency roll-off filter switch reduces low frequency noise caused by ambiance, structure noise, etc.
    Quiet Positioning
  • The gooseneck provides silent microphone positioning.
In the Box AKG GN30E5 - 12" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules with 5-pin XLR Connector and Large LED Ring
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AKG GN30E5 - 12" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules with 5-pin XLR Connector and Large LED Ring in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AKG GN30 E 5 Specs

    Length 12" (305mm)
    Low Frequency Roll-Off 250Hz, -10dB @ 50Hz
    Impedance <= 600 ohms
    Recommended Load: >= 2k ohms
    Phantom Power 9 to 52V Phantom Power
    Current Consumption <3 mA
    Connector 5-pin male XLR extra pins carry power to LED ring from external power source
    Cable Length 5ft (1.5m)
    Weight 5.6 oz (160 g)
    Package Weight 1.1 lb
