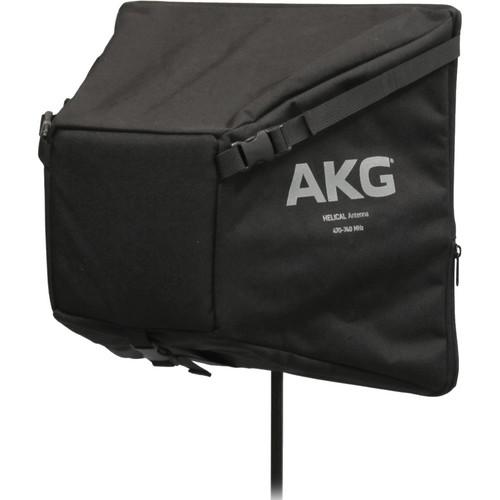

User Manual for AKG Helical Passive Circularly Polarized Directional Antenna Click to enlarge the picture
Contents of the user manual for the AKG Helical Passive Circularly Polarized Directional
- Product category: Antennas AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Antennas
|
User manual for the AKG Helical Passive Circularly Polarized Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG Helical Passive Circularly Polarized Directional Antenna is designed to operate hundreds of feet away from the action. This high-gain antenna, placed in FOH (Front Of House) positions away from the stage area, is ideal for microphone or in-ear monitor links. The UHF operating frequency range is 470 to 740 MHz.
The Helical Antenna is lightweight at 2.6 lb, and it's rapidly deployed and easily stored. The durable, water-resistant nylon cover compresses down and buckles closed to easily fit inside a rack drawer. To install, simply unbuckle the straps, extend the Helical, and mount it on a stand. For best performance connect the Helical to the microphone receiver or IEM transmitter via a low-loss coaxial cable and aim the antenna toward the stage. - Works with wireless microphone and IEM systems, UHF 470 - 740 MHz
- Circular polarized for high directionality and strong signal reception
- Fits 1/4"-20 lighting stands, 3/8"-16 EU mic stands, and 5/8"-27 international mic stands
- Strong and water-resistant nylon cover for indoor and outdoor use
- Foldable from 12" extended to 3" compressed
UPC: 885038034414 In the Box AKG Helical Passive Circularly Polarized Directional Antenna N to BNC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Helical Passive Circularly Polarized Directional Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3009H00210 Specs | Operating Frequency Range | 470 - 740 MHz | | Antenna Gain | -1 dB | | Pattern Type | Beam | | Polarization | RHCP | | Average Return Loss | -13.15 dB | | Impedance | 50 Ω | | Azimuth | Azimuth X & Y:
F/B Ratio: 15 dB
F/S Ratio: 12 dB
Squint: < 2 | | Beam Width | Azimuth X: 63°
Azimuth Y: 70° | | Mounting Compatibility | 1/4"-20
3/8"-16
5/8"-27 | | Operating Temperature | 10 to 130° F (-23 to 54° C) | | Connector | N female | | Dimensions (WxHxD) | Unfolded: 14 x 14 x 12" (355 x 355 x 305 mm)
Folded: 14 x 14 x 3" (355 x 355 x 76 mm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 16.3 x 15.4 x 5.4" |
