User Manual for AKG HSC15 Conference Headset Click to enlarge the picture
Contents of the user manual for the AKG HSC15 Conference Headset
- Product category: Components & Accessories AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Components & Accessories
 |
User manual for the AKG HSC15 Conference Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

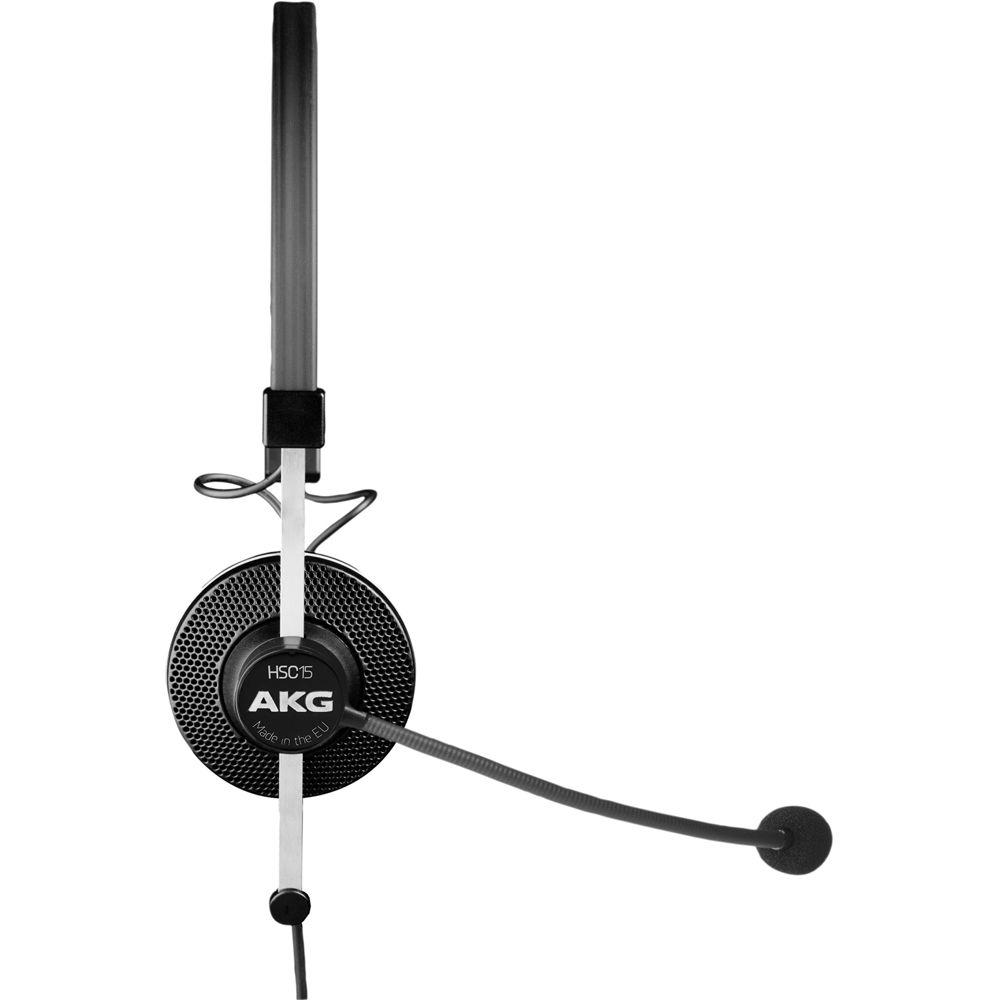

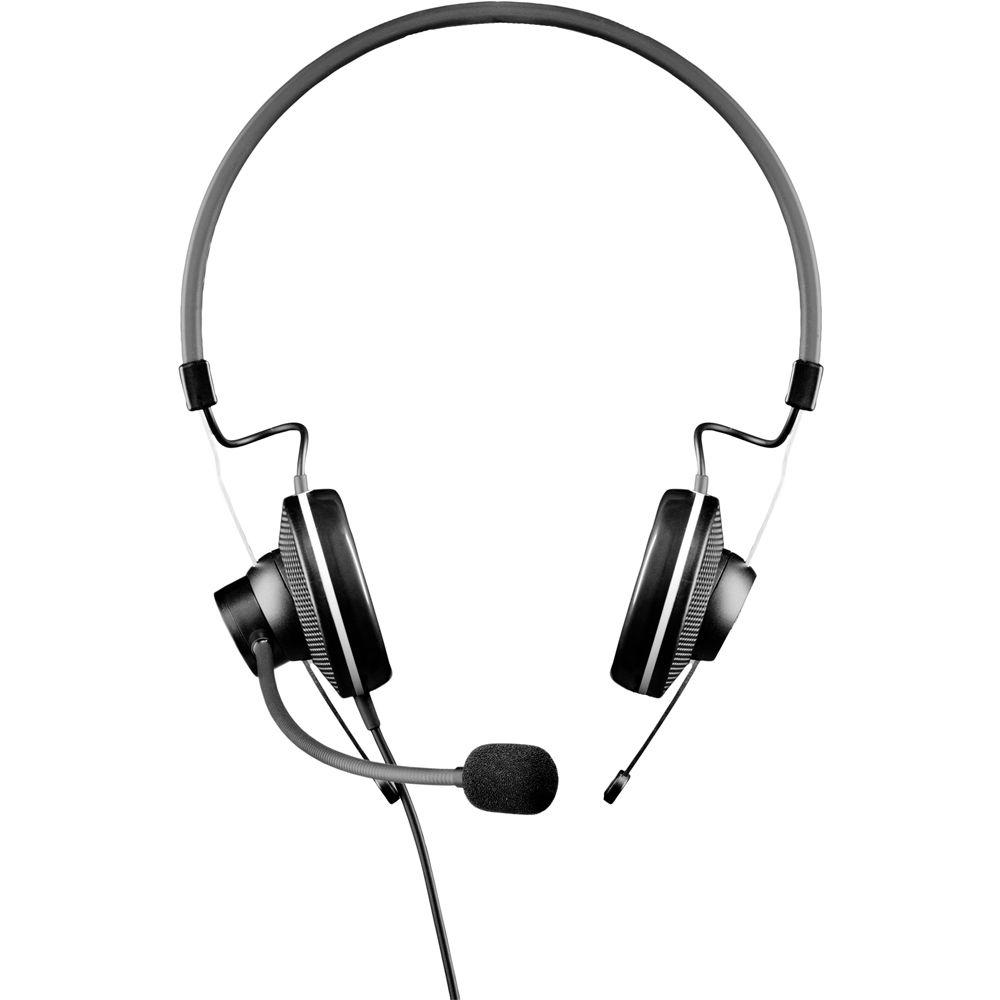

Product description The HSC15 from AKG is a professional conference headset for phone conferencing, VOIP, assistive listening, interpreters and school applications. An adjustable and lightweight design allow for hours of comfortable use. The bow is made of stainless spring-steel, designed to keep it´s shape, but also flexible enough to for different wearing positions. The microphone features an omnidirectional condenser capsule, designed for a wide pickup range. It features dual 3.5mm connectors, which are common to most interpreter desks, and also allows use with a PC/laptop. -
- On-ear, lightweight design and wide adjustment range for maximum wearing comfort
- Omnidirectional condenser mic for high SPL, wide pickup range and optimal voice intelligibility
- High-gloss polished plastic ear cups
- Soft headband
- Slim-line gooseneck for optimal positioning of the microphone
UPC: 885038036791 In the Box AKG HSC15 Conference Headset Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG HSC15 Conference Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG HSC15 Specs | | | Type | Open | | Contact Pressure | 2.2 N | | Adjustment | Ear adjustment: ±10° in each direction
Head adjustment range for head size: 63 mm / side | | Acoustics | 40 mm speaker | | Frequency Bandwidth | 20 Hz to 20 kHz | | Sensitivity | 113 dB +/-3 dB SPL/V | | Maximum Input Power | 200 mW | | Impedance | 32 ohms | | Type | 3.5 mm stereo | | Gender | Male | | THD | <1% @ 1 kHz @ 1 mW | | Contacts | 6-pin | | Finish | Gold | | | | Polar Pattern | Omnidirectional | | Frequency Bandwidth | 20 to 20 kHz | | Sensitivity | 8.5 mV/Pa | | Equivalent Noise Level | 32 dB-A | | Impedance | Electrical impedance (mic): < 1 kOhm
Recommended load impedance: > 2 kOhm | | | | Cable Length | 4.9' / 1.5 m | | Diameter | 0.1" / 2.6 mm, cable
2.1" / 53.0 mm, ear caps | | Dimensions (L x W x H) | 6.1 x 2.0 x 7.8" / 156.0 x 50.0 x 199.0 mm | | Weight | 3.8 oz / 108.0 g (without cable)
4.2 oz / 118.0 g (with cable) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.3 x 7.5 x 2.5" |
