User Manual for AKG HSD 171 Professional Headset with Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the AKG HSD 171 Professional Headset with
- Product category: Headsets AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Headsets
|
User manual for the AKG HSD 171 Professional Headset with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

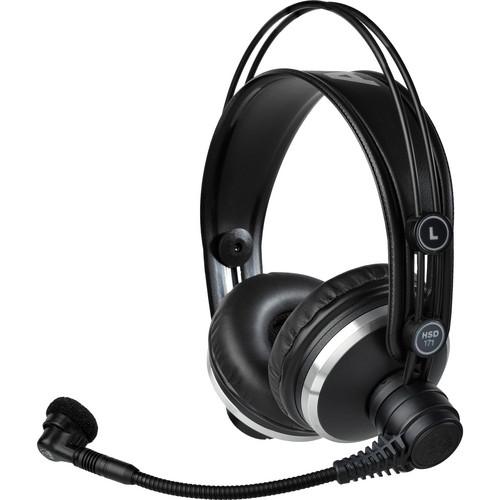

Product description The HSD 171 Professional Headset with Dynamic Microphone from AKG is designed to be rugged and ready for recording, intercom, ENG/EFP, and video production. The HSD 171 professional closed, on-ear studio headset provides high noise insulation, which is well-suited for use in loud environments. The headset combines the K171 MKII studio headphones with a rugged dynamic microphone. The flexible microphone arm swivels through a 270º arc and mutes the microphone automatically as it is moved up. The microphone can be mounted to the left or right side, depending on personal preference and available space. The HSD 171 headset features a switch in the headband that mutes the audio just as soon as the headphones are taken off. The rugged 6-pin mini XLR connector allows quick replacement of the cable. If a cable should become defective under the enormous stress of day-to-day broadcast work, it can be replaced quickly and without any tools. The headset is not supplied with a connecting cable (sold separately). - On-Ear, Closed Design
- For high noise attenuation
- Dynamic Microphone
- For maximum robustness
- Self-Adjusting Headband
- Allows extended wear without discomfort
In the Box AKG HSD 171 Professional Headset with Dynamic Microphone W HSD Windscreen for Microphone 2 x Velour Ear Pad for Headphones Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG HSD 171 Professional Headset with Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG HSD 171 Specs | | | Headphone | Design: Closed-Back, Supraaural
Type: Dynamic | | Frequency Bandwidth | 18 to 26,000 Hz | | Sensitivity | 107 dB SPL/V | | Impedance | 55 Ω | | Power Rating | 200 mW | | Ear Pads | Leatherette; velvet | | Cable Type | Detachable | | Cable Support | Supported Cable Set:
MK HS Studio D (For studio, moderators, commentators)
Connectors: Microphone: 3-pin XLR male, Headphones: 1/4" jack
MK HS XLR 4D (Intercom, Broadcasting)
Connectors: 4-pin XLR female (Microphone and Headphones)
MK HS XLR 5D (Cameras, Intercom)
Connectors: 5-pin XLR male (Microphone and Headphones) | | | | Type | Mini XLR | | Gender | Male | | Contacts | 6-pin | | Finish | Gold | | | | Polar Pattern | Hypercardioid | | Type | Dynamic | | Frequency Bandwidth | 60 to 17,000 Hz | | Sensitivity | 1 mV/Pa (-60 dBV) | | Maximum SPL | 124 / 128 dB (1% / 3% THD) | | Equivalent Noise Level | 15 dB-A | | Impedance | Electrical: 600 Ω | | Load Impedance | Recommended: 2000 Ω | | | | Dimensions (L x W x H) | 3.3 x 8.0 x 7.8" (85.0 x 205.0 x 200.0 mm) | | Weight | 7.8 oz (221.1 g) |
