User Manual for AKG HT 470 Handheld Wireless Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the AKG HT 470 Handheld Wireless Microphone
- Product category: Wireless Transmitters AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Transmitters
|
User manual for the AKG HT 470 Handheld Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

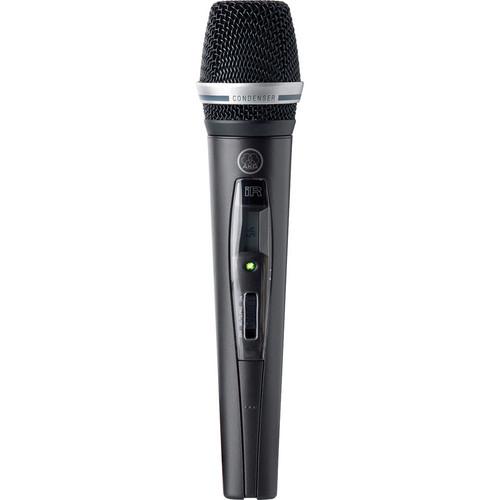

Product description The AKG HT 470 Handheld Wireless Microphone Transmitter may be bought separately or as part of the AKG WMS 470 wireless microphone system. The HT 470 features a built in wireless transmitter, C5 condenser capsule and operates in a single AA lithium battery for up to 14 hours. The transmitter is capable of up to 50mW of RF output power, features an off/standby/on switch and an LCD display for channel and frequency, battery status and more. - Up to 50mW output power for long range
- Powered by a single dry or rechargeable AA size battery
- Long battery life (14 hours with lithium batteries, 6 hours with single AA size dry battery, 8 hours with optional high performance rechargeable battery) for low operating cost
- Infrared data download from receiver for instant setup
- Battery status information transmitted to receiver
- Integrated charging contacts for charging batteries inside transmitter
- C 5 condenser microphone element
UPC: 885038029625 In the Box AKG HT 470 Handheld Wireless Microphone Transmitter AA LR6 Battery Stand Adapter Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG HT 470 Handheld Wireless Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG HT 470 Specs | Carrier Frequency | Band 8: 570.1 - 600.5MHz | | Switching Bandwidth | < / - 30.5 MHz (country dependent) | | RF Output Power | 10 or 50mW (ERP, country dependent) | | Modulation | Wideband FM | | Capsule | C 5 - condenser (cardioid) | | Max Input Signal | < / - 144 dB SPL | | Audio Bandwidth | 35 - 20 000 Hz (± 3 dB) | | Signal to Noise Ratio | 120 dB(A) | | Battery Life | > / - 7 hours with one 1.5 V LR6 AA alkaline battery
> / - 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh) > / - 14 hours with one 1.5 V FR6 AA lithium battery | | Dimensions (Diam. x L) | 2 x 9.3" (51 x 237mm) | | Weight | 8.5 oz. (240 g) without batteries |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
