User Manual for AKG HT420 Professional Wireless Handheld Transmitter Click to enlarge the picture
Contents of the user manual for the AKG HT420 Professional Wireless Handheld Transmitter
- Product category: Wireless Transmitters AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Transmitters
|
User manual for the AKG HT420 Professional Wireless Handheld Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

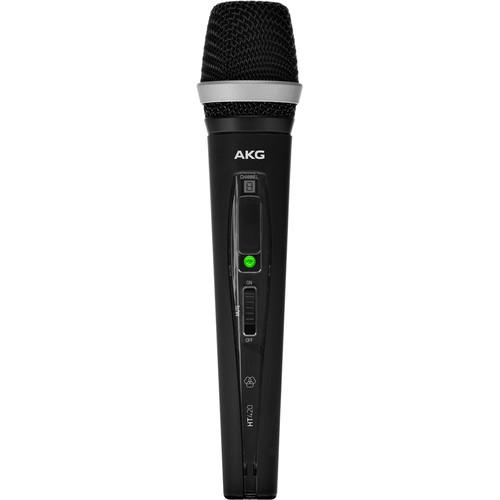

Product description The HT420 Professional Wireless Handheld Transmitter from AKG features a dynamic microphone capsule that is designed to reject audio feedback, a noiseless on/off/mute switch, a gain control knob, and an LED indicator light. It can be used when paired with a SR420 receiver (sold separately) in applications for live stage, theater, conferences, rehearsals, lectures, and more. The microphone is powered by a single AA battery which provides between six and eight hours of operating time with a range of approximately 98'. The transmitter also includes charging contacts for use with rechargeable batteries and the optional AKG CU400 rechargeable base station (sold separately). - D5 Dynamic Capsule
- The cardioid polar pattern ensures maximum gain before feedback and lets your voice cut through any mix
- Six to Eight Hours with a Single AA Battery
- Long operation time and a low battery indicator guarantee a secure operation
- Noiseless On/Off/Mute Switch
- Provides for easy operation
- Gain Control on Transmitter
- Allows for immediate volume adjustment and provides full control of your performance
UPC: 885038036166 In the Box AKG HT420 Professional Wireless Handheld Transmitter (A: 530.25 to 559.00 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG HT420 Professional Wireless Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG HT420 Specs | Carrier Frequency | Band A: 530.25 to 559.00 MHz | | Range | 98' (30 m) | | Capsule | Dynamic D5 | | Polar Pattern | Supercardioid | | Signal to Noise Ratio | 105 dB-A | | THD | 0.8% at 1 kHz | | Audio Bandwidth | 70 Hz to 20 kHz (±3 dB) | | Transmitter Synchronization | Manual | | Battery Type | AA battery (LR 6 AA alkaline battery or HR 6 AA (NiHM) rechargeable battery) | | Battery Operating Time | Six to eight hours on one AA battery | | Dimensions (L x Diam) | 9.33 x 2.01" (237 x 51 mm) | | Weight | 7.55 oz (214 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 14.0 x 9.3 x 2.5" |
