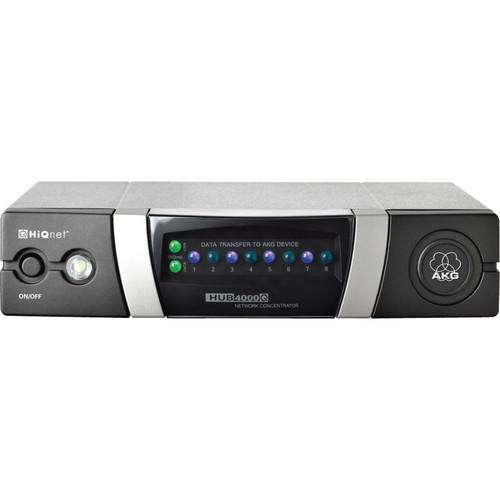

User Manual for AKG HUB4000 Q HiQnet Ethernet Interface Click to enlarge the picture
Contents of the user manual for the AKG HUB4000 Q HiQnet Ethernet Interface
- Product category: Networked Audio Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Networked Audio Systems
|
User manual for the AKG HUB4000 Q HiQnet Ethernet Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG HUB4000 Q HiQnet Ethernet Interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB4000 Q connects to your network via a standard CAT-5 cable. For large wireless systems, several HUB 4000 Qs can be cascaded using standard Ethernet switches, routers, or wireless hubs, allowing you to configure and monitor complex systems from a single application. HUB4000 Q connects the wireless system to the applications Harman System Architect, AKG Wireless app and VM2.
The HUB4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address. It supports the DMS700, WMS4000/4500 and IVM4/4500. - Connects up to 8 wireless devices to HiQnet network, enabling remote control via System Architect, AKG wireless app, and VM2
- Cascadable via standard Ethernet switches for setup of large system configurations
- Central 10 LED operating display for full control on data transfer status
- Covered DIP switches on front panel for quick and safe setup of the IP address
- Rugged half-rack metal housing for flexible, space efficient system configurations
In the Box AKG HUB4000 Q HiQnet Ethernet Interface 8 x Ethernet Data Cables Rackmounting Kit Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG HUB4000 Q HiQnet Ethernet Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG HUB4000 Specs | | | Amount | 8 | | Type | RJ 10 data (4P4C) | | Gender | Female | | Contacts | 4-pin | | Compatibility | For connection with AKG Wireless devices such as SR4500, SST4500, DSR700 | | | | Amount | 1 | | Type | RJ 45 Ethernet | | Gender | Female | | Compatibility | For connection with HiQnet Ethernet network | | | | Internal Power Supply | No | | Power Supply | 12 VDC +/-2 V | | Current Consumption | 200 mA, maximum | | Ambient Temperature | 14 to 140°F (-10 to 60°C) | | Type | Lockable DC Socket | | Voltage | 12 to 12 V | | | | Construction Material | Metal | | Dimensions (L x H x W) | 5.4 x 17.3 x 7.9" (136 x 440 x 200 mm) | | Weight | 34.2 oz (970 g) |
