User manual

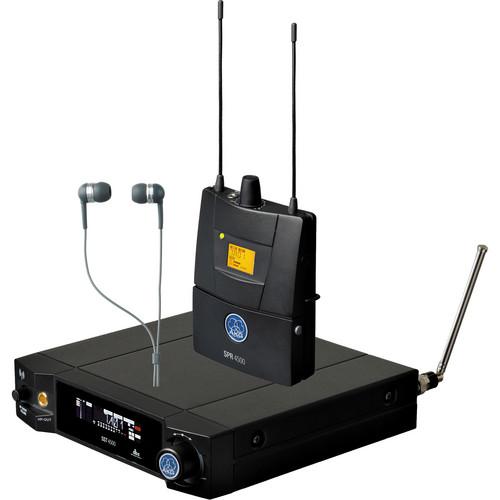

AKG IVM4500 In Ear Monitoring System

User Manual for AKG IVM4500 In Ear Monitoring System BD8-50mW

• Product category: In-Ear Monitoring Systems AKG
• Brand: AKG
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AKG In-Ear Monitoring Systems

Product description

Wireless iPhone App
• Want to check your multichannel wireless system from your iPhone? With the AKG Wireless iPhone App, you can monitor and control an AKG wireless system from your iPhone or iPod touch via Wi-Fi. The AKG Wireless iPhone App is the fastest and easiest way to check the wireless connection between a transmitter and a receiver on stage. It actually lets you check and detect radio shadow areas directly on the stage with the RF monitor. If you rotate the iPhone/iPod touch from portrait mode of a stripe into landscape mode, the RF monitor graph shows the radio frequency level over time

HiQnet Protocol and Harman System Architect (Optional)
• HiQnet is a communications protocol or language with which all device types can communicate within the full audio signal path. HiQnet provides efficient configuration and control of complex audio systems as well as convenient monitoring of important parameters of all audio devices on the network. The HiQnet protocol enables compatible devices from different manufacturers to be connected to the same HiQnet network. For this purpose, HiQnet uses standard network technology such as the Ethernet protocol or commercial CAT-5 network cables. Today's HiQnet system is built from flagship products from Harman Pro brands AKG Acoustics, BSS Audio, Crown International, dbx Professional, JBL Professional, Lexicon Pro, Soundcraft and Studer

IP 2 Earphones
• The IP 2 earphones connect to the SPR4500 bodypack receiver. These high quality earphones provide a wide-range sound with sharply contoured bass reproduction as well as excellent isolation to suppress high ambient noise levels encountered, e.g., on a loud concert stage. An integrated sliding cable tie and the supplied soft-rubber earmolds in three different sizes enable the earphones to adapt to every shape of ear and head. The IP 2 earphones are included in the IVM4500 IEM sets and in the SPR4500 IEM sets and are also available single packed

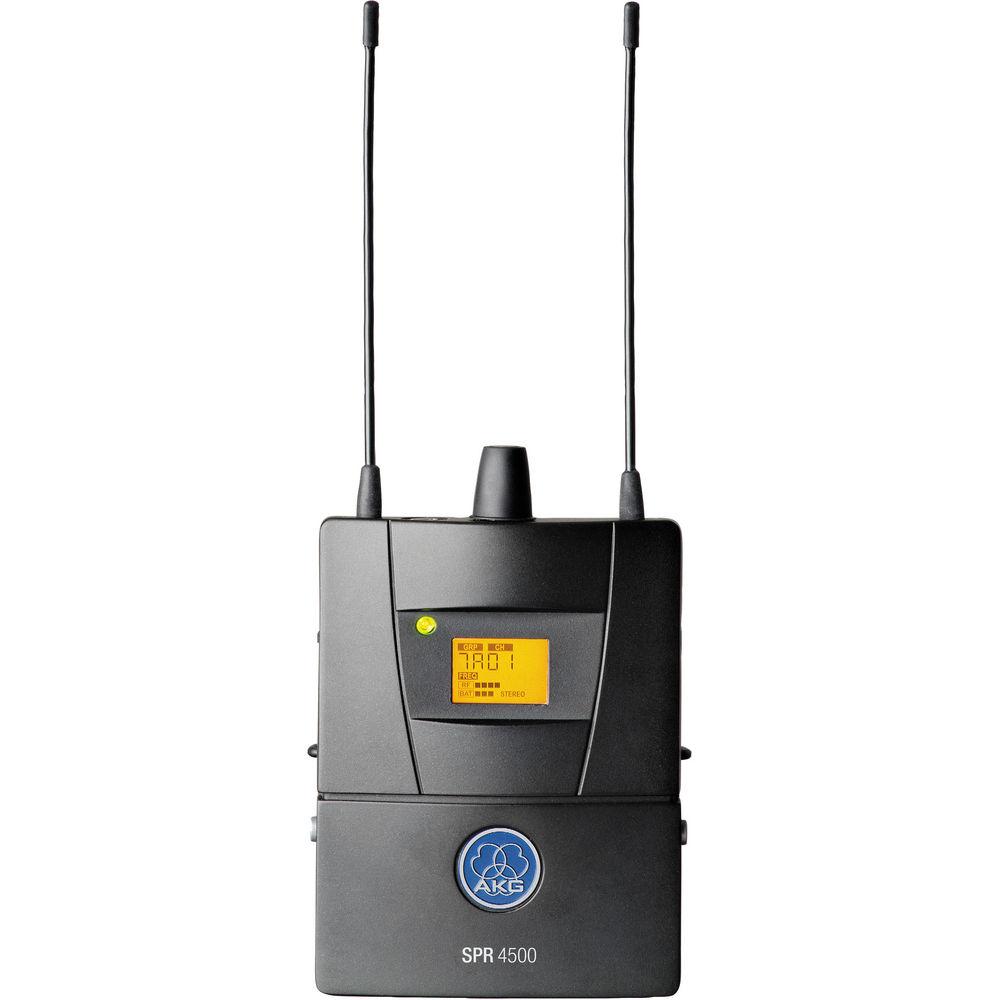

SPR4500 IEM Bodypack Receiver
• The SPR4500 IEM bodypack receiver features a rugged die-cast aluminum case. The auto setup function for finding clean frequencies make setting up extremely easy. Pre-programmed frequency preset groups support TV channels and ensure an easy and reliable system setup. Up to 14 intermodulation-free channels can be used within a 30MHz wide UHF band. In addition, up to 1200 frequencies can be selected manually. The enhanced frequency setup shows the number of free channels, and new preset groups support TV channels. The quick frequency change function supports monitor engineers throughout performances to make their projects easily adjustable. The only control the artist needs to operate is an ergonomically shaped volume control with integrated on/off switch. Placed in the center of the SPR4500 IEM top panel, the volume control with its clearly discernible detents can be operated intuitively even if it is positioned outside the user's field of vision. The SPR4500 IEM provides a backlit display and jog control for ease of use. The display indicates the received signal strength and battery status along with other parameters. Receivers are powered by two AA size alkaline (LR6), lithium (FR6), AKG BP 4000 µC controlled battery pack or Ni-MH rechargeable (HR6) batteries and provide up to 10 hours of continuous operation. Integrated charging contacts allow the optional BP4000 battery pack to remain inside the receiver whilst being charged on the CU4000 charger (optional). The BP4000 will be charged to full capacity in only one hour, and can power the SPR4500 IEM for about seven hours. To accommodate the individual preferences of users, the SPR4500 IEM has been designed to drive a large number of different types of low impedance earphones

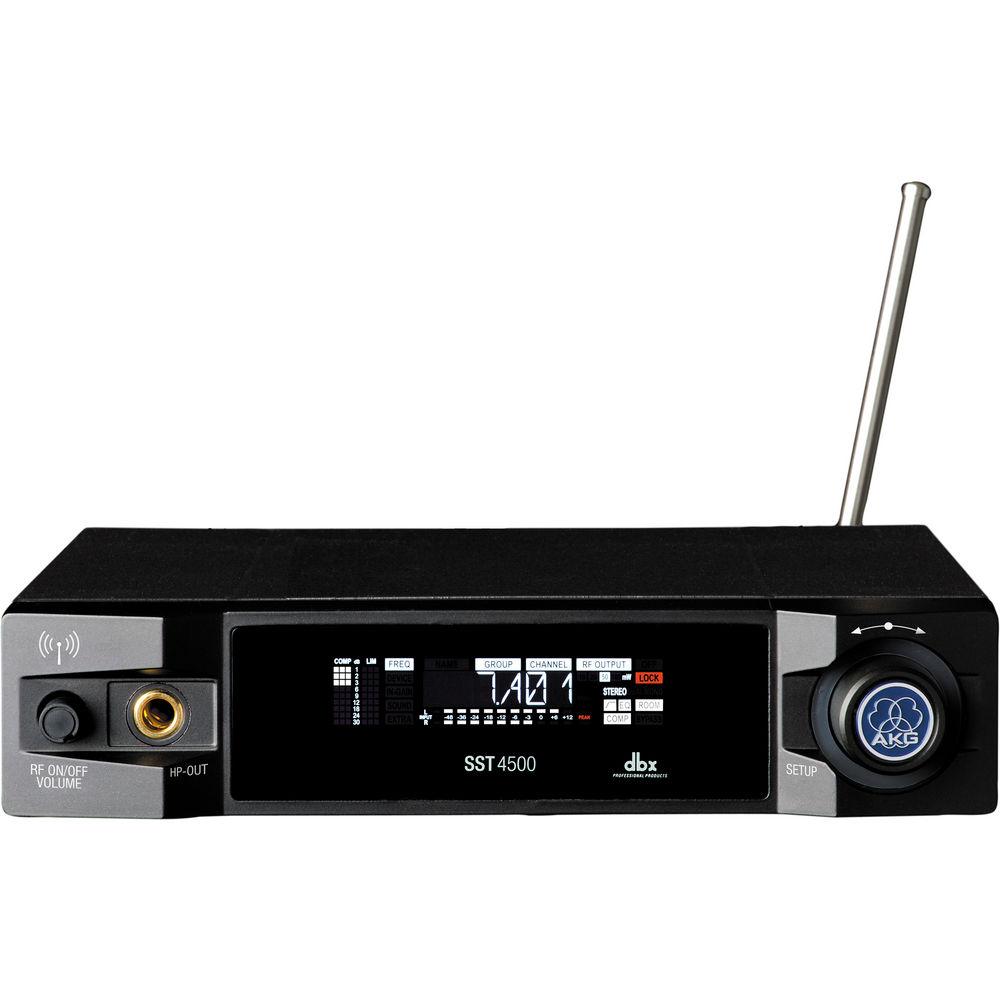

SST4500 IEM Stereo Transmitter
• The SST4500 IEM stereo transmitter combines all the features required for professional in-ear monitoring in a single, compact device. The SST4500 IEM allows the input signal to be processed individually to meet the requirements of both the artist and the sound system environment. An integrated dbx compressor, many equalizer settings, and optimized binaural room simulation algorithms provide outstanding high performance signal processing flexibility. The patented digital MPX audio signal generation allows the SST4500 IEM transmitter to support the receiver with premium sound performance. IVM4500 IEM supports the actor with a clear and transparent sound and an ultra linear frequency response. Even loud audio is transmitted. Preprogrammed frequency preset banks support TV channels and ensure an easy and reliable system setup. Up to 14 intermodulation-free channels can be used within a 30MHz wide UHF band. In addition, up to 1200 frequencies can be selected manually. The SST4500 IEM transmitter lets you adjust the RF output within the approved range, which is particularly important when the in-ear monitor system is used together with a complex wireless microphone system. This allows optimum system matching for improved reliability. A large, backlit display gives a clear picture of all important settings and levels. When used in dark environments, the brightness of the display can be reduced. The input signal level is digitally adjustable within a range of ±20 dB. A pair of loop out jacks carries the unprocessed input signal for daisy-chaining several SST4500 IEMs. A complete line of accessories and antennas are available for multichannel applications. Additionally, the SST4500 allows to set up a stationary wireless high-end mono transmission with the SR4500 wireless receiver, so that a wireless connection of 1000' (304.8 m) and more can be easily realized
