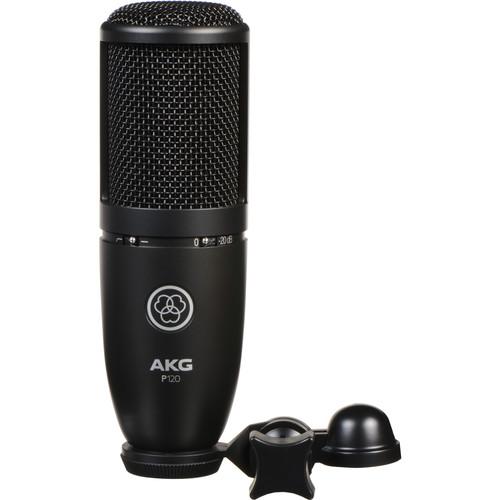

User Manual for AKG P120 Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG P120 Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
|
User manual for the AKG P120 Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The black P120 from AKG is a side-address condenser microphone with a cardioid pattern designed to capture vocals, acoustic guitars, percussion, and amplified instruments in project studios, home recordings and live situations. The low-mass 0.66" gold-sputtered diaphragm delivers a clear sound with accurate details, and it is capable of handling sound-pressure levels up to 150 dB without introducing perceptible distortion.A switchable low-cut filter at 300 Hz helps reduce rumble or wind noise, and a switchable 20 dB pad enables distortion-free recording of very loud sound sources associated with proximity miking.The all-metal body improves rejection of RF interference so you can use the microphone near transmitter stations and along with wireless microphones.The P120 is built to resist high temperatures and humidity. The rugged body and sturdy front grille protect it from tough handling. -
- Side-address microphone with cardioid pattern and gold-sputtered diaphragm to prevent shorting to the back electrode at high sound-pressure levels
- Capable of handling sound-pressure levels up to 150 dB with no apparent distortion
- Switchable low-cut filter at 300 Hz and switchable 20 dB pad
- All-metal body for rejection of RF interference
- Sturdy front grille protects microphone from tough handling
- Built to resist high temperatures and humidity
UPC: 885038037033 In the Box AKG P120 Cardioid Condenser Microphone (Black) Stand Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG P120 Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG P120 Specs | | | Diaphragm | 0.667" / 16.94 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB A-Weighted | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 150 dB SPL | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 24 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 300 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 44 to 52 V
48 V | | Operating Temperature | 14.00 to 140.00°F / -10 to 60°C | | Length | 6.50" / 165 mm | | Diameter | 2.13" / 54 mm | | Weight | 16.05 oz / 455 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.6 x 7.5 x 3.2" |
