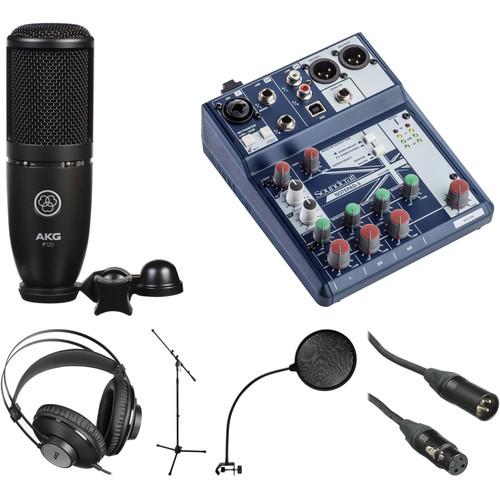

Product description The B&H P120 Condenser Microphone Starter Recording Kit includes the black AKG P120 Cardioid Condenser Microphone, a 5-channel analog mixer with USB I/O, closed-back studio headphones, a tripod mic stand with a telescoping boom, one nylon pop-filter, and a balanced XLR 3-pin microphone cable. The mixer supplies 48V phantom power for microphones through the XLR input. With high SPL handling, a wide frequency response, a -20 dB pad, and a 300 Hz low-cut filter, the microphone is well suited for vocals and a variety of instruments. The supplied pop filter reduces problematic plosives and easily attaches to the mic stand. The mixer's XLR, RCA, and 1/4" inputs allow connection of mic, instrument, and line sources, while the USB I/O enables operation as an audio interface, allowing your to record to a computer. For singers, musicians, and podcasters, this kit makes setting up a home studio simple. - AKG P120 Cardioid Condenser Microphone (Black) The black P120 from AKG is a side-address condenser microphone with a cardioid pattern designed to capture vocals, acoustic guitars, percussion, and amplified instruments in project studios, home recordings and live situations. The low-mass 0.66" gold-sputtered diaphragm delivers a clear sound with accurate details, and it is capable of handling sound-pressure levels up to 150 dB without introducing perceptible distortion.A switchable low-cut filter at 300 Hz helps reduce rumble or wind noise, and a switchable 20 dB pad enables distortion-free recording of very loud sound sources associated with proximity miking.The all-metal body improves rejection of RF interference so you can use the microphone near transmitter stations and along with wireless microphones.The P120 is built to resist high temperatures and humidity. The rugged body and sturdy front grille protect it from tough handling.
-
- Side-address microphone with cardioid pattern and gold-sputtered diaphragm to prevent shorting to the back electrode at high sound-pressure levels
- Capable of handling sound-pressure levels up to 150 dB with no apparent distortion
- Switchable low-cut filter at 300 Hz and switchable 20 dB pad
- All-metal body for rejection of RF interference
- Sturdy front grille protects microphone from tough handling
- Built to resist high temperatures and humidity
UPC: 885038037033 - Soundcraft Notepad-5 Small-Format Analog Mixing Console with USB I/O The Notepad-5 from Soundcraft is a small-format, 5-channel analog mixing console with an integrated 2x2 USB audio interface, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as a microphone preamp with a combo XLR-1/4" input, 2-band EQ, and a 100 Hz high-pass filter. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.
Channels 1-3 include gain/trim controls, a monitor send, and level controls. Channels 2/3 utilize 1/4" line-level inputs, while channels 4/5 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" monitor send, and a dedicated 1/4" monitor output button to select between mono line output or stereo headphone output. The master section offers a master control knob and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-5 features a durable metal enclosure and ships with an external power supply. -
- Soundcraft-quality sound from the professional microphone preamp
- Easily record, edit, and play back from your Mac or Windows computer with an integrated USB audio interface. Simply plug-and-play with your Mac (Windows computers require Soundcraft driver installation)
- Getting a great mix is easy with a familiar channel-strip layout that includes EQ, monitor send, master level, and rotary headphone-volume control
- Durable metal enclosure that’s built to last
UPC: 668705003018 - AKG K72 Closed-Back Studio Headphones The K72 from AKG is a closed-back and over-the-ear studio headphone that features professional-grade 40mm drivers and a self-adjusting headband that is light and comfortable. It can be used with a broad range of playback devices in applications for rehearsals, recording studios, live stages, and more. The K72 headphones are built with a single-sided non-detachable 1/8" TRS 9.8' cable and include a 1/4" screw-on adapter. The frequency response is 16 Hz to 20 kHz and provides an accurate monitoring solution, which delivers extended low-frequency that gives definition to kick drums and bass guitars. Furthermore, since earpads are usually the first components to show wear, these are replaceable to protect your investment over time. Finally, whether you're tracking the hook or mixing background harmonies, the K72 is designed to provide hours of comfort.
- Professional Drivers
- The 40mm drivers deliver high sensitivity for a powerful output, plus an extended frequency response that reveals every detail. The K72s also feature a low-impedance design for compatibility with a broad range of playback devices, from professional studio gear to portable music players
- Closed-Back Design
- The K72 headphones' closed-back design eliminates audio leakage and delivers sound to your ears only. A microphone won't pick up the sound of the click track in your headphones - and you'll always be able to mix peacefully without being distracted by outside noise
- Comfortable Listening
- The self-adjusting headband automatically creates the perfect fit for every band member. No need to mess with delicate sizing mechanisms, which have the potential to break over time. Breathable, lightweight earpads encircle your ears, rather than putting pressure on them. And a single-sided cable gives you freedom to move
- Professional Build Quality
- Replaceable earpads are usually the first components to wear, so to protect your investment over time these earpads are replaceable
UPC: 885038038788 - Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
- Auray PFNY-6 Nylon Pop Filter with Gooseneck Designed for use with microphones, the Auray PFNY-6 is a pop filter that minimizes vocal plosives and reduces errant breath noise. It's suitable for home and pro studios alike, and lends itself to all sorts of recording applications, including sung vocals, voice-overs, broadcasts, and podcasts.
The PFNY-6 utilizes a double-layered nylon screen, affording a clear view of the capsule; thus, the PFNY-6 won't impede a vocalist from giving a robust-sounding performance, captured on-axis. Additionally, this screen protects your microphone capsule from corrosive moisture.
Its 13" flexible gooseneck will give you plenty of room to maneuver, allowing you to place the screen as close to the capsule as you'd like. A sturdy C-clamp with a thumbscrew fastener protects against slippage, while a rubber grommet and padding protect your mic stand's finish. General Features - Prevents Vocal Plosives
- Anyone who has recorded vocal tracks knows what the sound of p and b can do to the take when a microphone is left unprotected. This double-layered nylon screen dissipates the rush of air caused by vocal plosives, thus minimizing the popping sounds that can compromise your recording.
- Robust Vocal Tracks
- By minimizing vocal plosives, vocalists can move closer to the microphone and train their voice directly on the mic capsule for a more rich, centered, warm, and robust track.
- Protects Against Corrosive Moisture
- In addition to protecting your take from vocal plosives, the PFNY-6 protects your mic capsule from corrosive moisture.
- Easy to Attach
- The PFNY-6 is outfitted with a sturdy C-clamp that attaches easily to a mic stand or mic boom. Its thumbscrew fastener adjusts to most sizes, and the rubber grommet won't scratch your mic stand's finish.
UPC: 847628000858 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558274 In the Box - P120 Cardioid Condenser Microphone (Black) dayxscfdbzrvyfyvuexyrrxrzrfzsytesfvxws
- Stand Adapter
- Limited 2-Year Warranty
- Soundcraft - Notepad-5 Small-Format Analog Mixing Console with USB I/O
- K72 Closed-Back Studio Headphones
- Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom
- Auray - PFNY-6 Nylon Pop Filter with Gooseneck
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG P120 Condenser Microphone Starter Recording Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AKG P120 Cardioid Condenser Microphone (Black)
| | | Diaphragm | 0.667" / 16.94 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB A-Weighted | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 150 dB SPL | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 24 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 300 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 44 to 52 V
48 V | | Operating Temperature | 14.00 to 140.00°F / -10 to 60°C | | Length | 6.50" / 165 mm | | Diameter | 2.13" / 54 mm | | Weight | 16.05 oz / 455 g | | | | Box Dimensions (LxWxH) | 9.6 x 7.5 x 3.2" | - Soundcraft Notepad-5 Small-Format Analog Mixing Console with USB I/O
| Inputs | Mic/Line (Channel 1): 1 x combo XLR-1/4" / 6.35 mm
Line (Channels 2/3): 2 x 1/4" / 6.35 mm
Line (Channels 4/5): 2 x RCA | | Outputs | Master (L/R): 2 x XLR
Monitor: 1 x 1/4" / 6.35 mm
| | Controls | Gain (Channel 1): 1 x Gain knob
Trim (Channels 2/3): 1 x Trim knob
Monitor Send (Channels 1, 2/3, 4/5): 3 x Monitor send knobs
Level (Channel 1, 2/3, 4/5)): 3 x Level knobs
Master Level: 1 x knob
Monitor Master: 1 x Monitor master knob
Output Type: Button for mono line out or stereo headphones
| | EQ Controls | 2-Band EQ (Channel 1)
HF: ±12 at 12 kHz
LF: ±12 at 80 Hz | | Indicator LEDs | Meters: 4 x LED (-20, 0, +6 dB, Peak) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 10.3 x 9.0 x 3.5" | - AKG K72 Closed-Back Studio Headphones
| | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 16 Hz to 20 kHz | | Sensitivity | 112 dB | | Impedance | 32 Ohms | | Maximum Power Handling | 200 mW | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | 1/4" (6.3 mm) | | | | Material of Construction | Leatherette | | Weight | 0.44 lb / 200 g | | | | Box Dimensions (LxWxH) | 9.65 x 8.9 x 4.35" | - Auray MS-5230T Tripod Microphone Stand with Telescoping Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Length | 19.3 to 33.9" / 49 to 86 cm | | | | Material | Steel | | Weight | 4.6 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - Auray PFNY-6 Nylon Pop Filter with Gooseneck
| Diameter | Screen: 6" / 15.2 cm | | Gooseneck Length | 13" / 33 cm | | Total Length | 22" / 55.9 cm | | Weight | 0.45 lb / 204.1 g | | | | Box Dimensions (LxWxH) | 14.4 x 6.4 x 0.4" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 10' / 3 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 5.7 x 2.2 x 1.0" |
