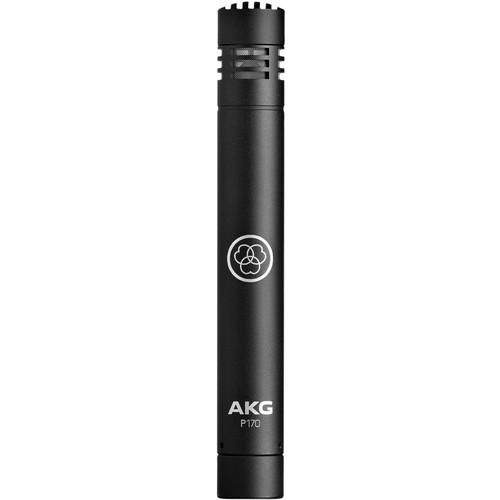

User Manual for AKG P170 Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG P170 Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Small Diaphragm Condenser
|
User manual for the AKG P170 Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The black P170 from AKG is a small-diaphragm condenser microphone with a cardioid pattern designed to capture the sound of various acoustic and amplified instruments in project studios, home recordings and live situations. Offered as a cost-effective alternative to the classic AKG C451 B, this microphone is well suited for capturing guitars & strings, drums, hi-hats and percussion among others. The lightweight 0.5" gold-sputtered diaphragm delivers a clear sound with fast transients, and is capable of handling sound-pressure levels up to 155 dB without introducing perceptible distortion. A switchable 20 dB pad enables distortion-free recording of very loud sound sources often associated with proximity miking. The all-metal body improves rejection of RF interference so you can use the microphone near transmitter stations and along with wireless microphones. The P170 is built to resist high temperatures and humidity. The rugged body and sturdy front grille protect it from the rigors of day-to-day use. -
- Gold-sputtered small-diaphragm prevents shorting to the back electrode at high sound-pressure levels
- Capable of handling sound-pressure levels up to 155 dB with no apparent distortion
- Switchable 20 dB pad for distortion-free close-miking
- All-metal body for rejection of RF interference
- Sturdy front grille protects microphone from tough handling
- Built to resist high temperatures and humidity
UPC: 885038037040 In the Box AKG P170 Small-Diaphragm Condenser Microphone (Black) Stand Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG P170 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG P170 Specs | | | Transducer | Condenser | | Diaphragm | 0.5" / 12.70 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB A-Weighted | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 15 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V | | Operating Temperature | 14.00 to 140.00°F / -10 to 60°C | | Length | 6.30" / 160 mm | | Diameter | 0.87" / 22 mm | | Weight | 4.59 oz / 130 g | | | | Package Weight | 1.035 lb | | Box Dimensions (LxWxH) | 9.7 x 7.6 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
