User Manual for AKG P820 Multi-Pattern Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG P820 Multi-Pattern Tube Condenser Microphone
- Product category: Tube Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Tube Microphones
 |
User manual for the AKG P820 Multi-Pattern Tube Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

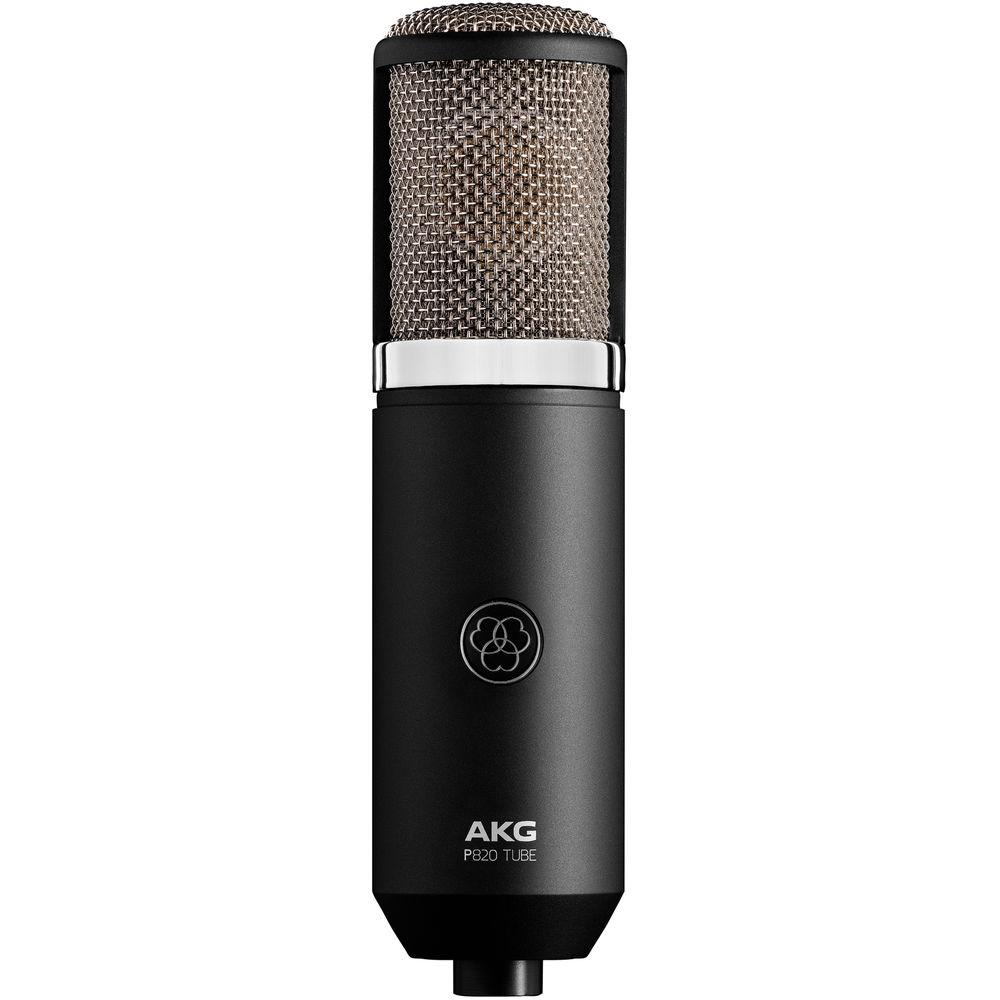

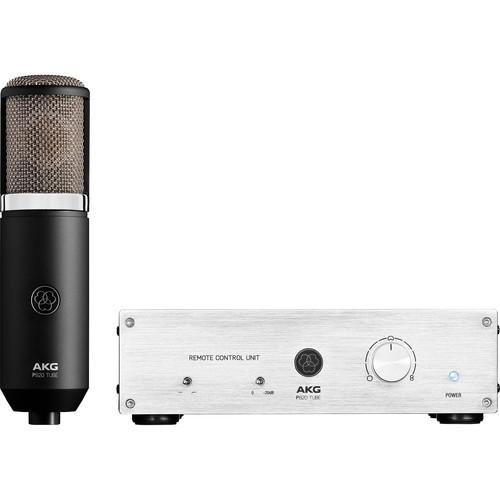

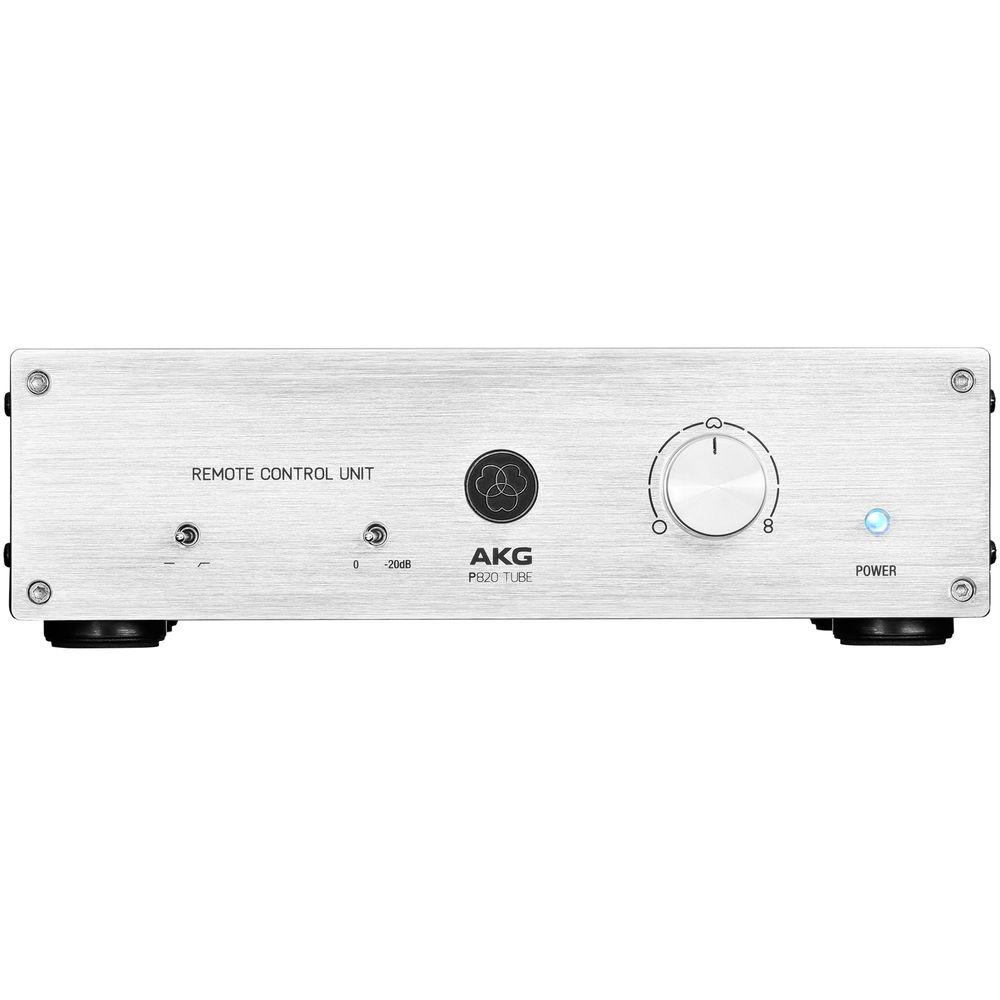

Product description The P820 from AKG is a multi-pattern side-address condenser microphone with a tube preamp well suited to record female & male vocals, brass instruments, guitars, and drums, in professional and project-studio settings. With a large 1" gold-sputtered dual-diaphragm capable of handling sound-pressure levels up to 155 dB and ECC83 dual-triode circuitry that adds even-order harmonics to the signal, this microphone delivers the typical warmth and three-dimensional sound tube microphones are famous for. The P820 connects to its remote control via a dedicated 7-pin XLR audio/control cable. Nine discreet polar patterns can be selected from the control unit. These patterns are virtually frequency-independent so that reflected sound is reproduced accurately and without coloration. Also located on the control unit you will find a switchable low-cut filter at 80 Hz to help reduce rumble & wind noise, and a switchable 20 dB pad for distortion-free recording of loud sound sources when close-miking. The P820 is built to resist high temperatures and humidity. The all-metal body and sturdy front grille improve rejection of RF interference and protect the microphone from the rigors of studio handling. -
- Side-address tube microphone with dual 1” gold-sputtered large diaphragm to prevent shorting to the back electrode at high sound-pressure levels
- Nine polar patterns: omnidirectional, cardioid, hypercardioid, figure-8, wide cardioid, and the intermediate patterns in between (selectable on remote-control unit)
- Capable of handling sound-pressure levels up to 155 dB with no apparent distortion
- Low-cut filter at 80 Hz and 20 dB pad (selectable on remote-control unit)
- All-metal body for rejection of RF interference
- Sturdy front grille protects microphone from tough handling
- Built to resist high temperatures and humidity
- US-type, UK-type & European-type power cords included
- Spider-type shockmount and metal carrying case included
UPC: 885038037071 In the Box AKG P820 Multi-Pattern Tube Condenser Microphone Remote-Control Unit Audio/Control Cable Spider Shockmount US-Type Power Cord UK-Type Power Cord European-Type Power Cord Metal Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG P820 Multi-Pattern Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG P820 Specs | | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 155 dB SPL | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 125 mA | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 14.00 to 140.00°F / -10 to 60°C | | Length | 8.35" / 212 mm | | Diameter | 2.13" / 54 mm | | Weight | 26.98 oz / 765 g | | | | Package Weight | 13.95 lb | | Box Dimensions (LxWxH) | 16.5 x 14.2 x 6.6" |
