User Manual for AKG PAE5 M Reference Phantom Power Module for DAM Series Capsules Click to enlarge the picture
Contents of the user manual for the AKG PAE5 M Reference Phantom Power
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG PAE5 M Reference Phantom Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

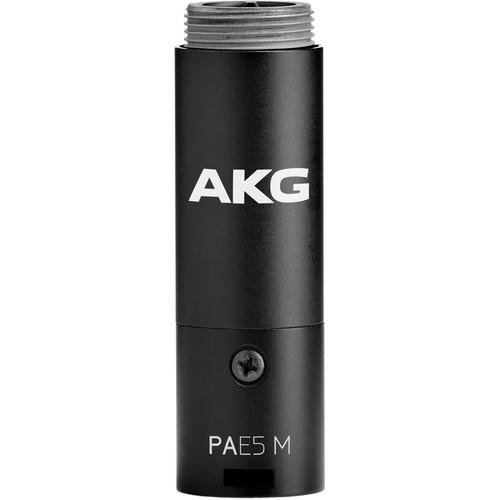

Product description The AKG PAE5 M is a phantom power module that fits DAM+ series mic capsules for fixed and mobile installations. It features a five-pin XLR connector, allowing the audio signal and the control voltage for an LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the "mic on" status. With its wide voltage range, the module will fit most available microphone mixers.
The PAE5 M features a bass roll-off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series, as well as the HM1000 M hanging module. - Extra feeding of LED ring to show mic status for use with automixers that feature logic outputs
- RFI Shield technology provides increased immunity to radio-frequency interference
- Feeds all DAM+ Series capsules
- Switchable bass roll off for reduction of body noise and proximity effect
In the Box AKG PAE5 M Reference Phantom Power Module for DAM+ Series Capsules Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PAE5 M Reference Phantom Power Module for DAM Series Capsules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG PAE5 M Specs | Frequency Range | 20 to 20000 Hz | | HPF | 150 Hz | | Recommended Load Impedance | 2000 Ohms | | Voltage | 9 to 52 V | | Current | 3.5 mA | | Audio Output | XLR male 5-pin | | Dimensions | 2.6 x 0.75" (65.5 x 19.1 mm) | | Weight | 1.5 oz (43 g) |
