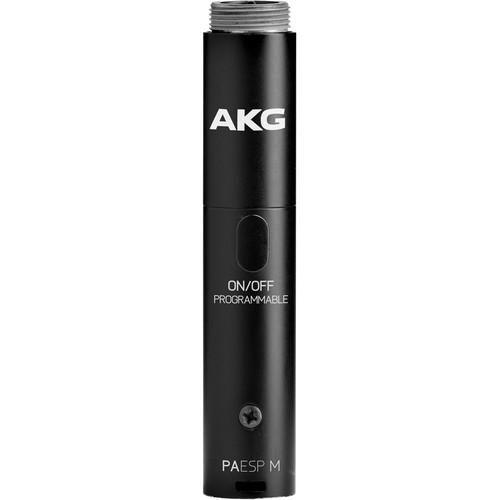

User Manual for AKG PAESP M Phantom Power Adapter Module with Programmable Switch Click to enlarge the picture
Contents of the user manual for the AKG PAESP M Phantom Power Adapter
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG PAESP M Phantom Power Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG PAESP M Phantom Power Adapter is a programmable phantom power module which feeds and powers all DAM+ Series microphone capsules. It features a BCD (binary code decimal) switch, which recalls an operating mode. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The programmable switch offers noiseless switching and rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling.
With its wide voltage range the PAESP M will fit most available microphone mixers and is suitable for fixed and mobile installation in theaters, houses of worship, and in conference rooms. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series. - Programmable on/mute/off switch offers noiseless switching
- Selectable operating modes for switchable bass roll off and light-ring function
- Silently switchable 26 dB mute
- RFI Shield technology provides high immunity to radio-frequency interference
- Accepts 9-52V input for almost any available mixer inputs
- Integrated system connector with gold-plated contacts
- Feeds all DAM+ Series capsules for increased flexibility
In the Box AKG PAESP M Phantom Power Adapter Module with Programmable Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PAESP M Phantom Power Adapter Module with Programmable Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG PAESP M Specs | Audio Frequency Response | 20 to 20000 Hz | | Bass Cut Filter | 150 Hz | | Recommended Load Impedance | 2000 Ω | | Voltage | 9 to 52 V | | Current | 4 mA | | Type | Balanced XLR | | Gender | Male | | Contacts | 3-pin | | Dimensions (HxD) | 4 x 0.8" (100.5 x 19.1 mm) | | Weight | 0.14 lb (63 gm) |
