User Manual for AKG PCC160 Phase Coherent Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the AKG PCC160 Phase Coherent Cardioid Microphone
- Product category: Boundary Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Boundary Microphones
 |
User manual for the AKG PCC160 Phase Coherent Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

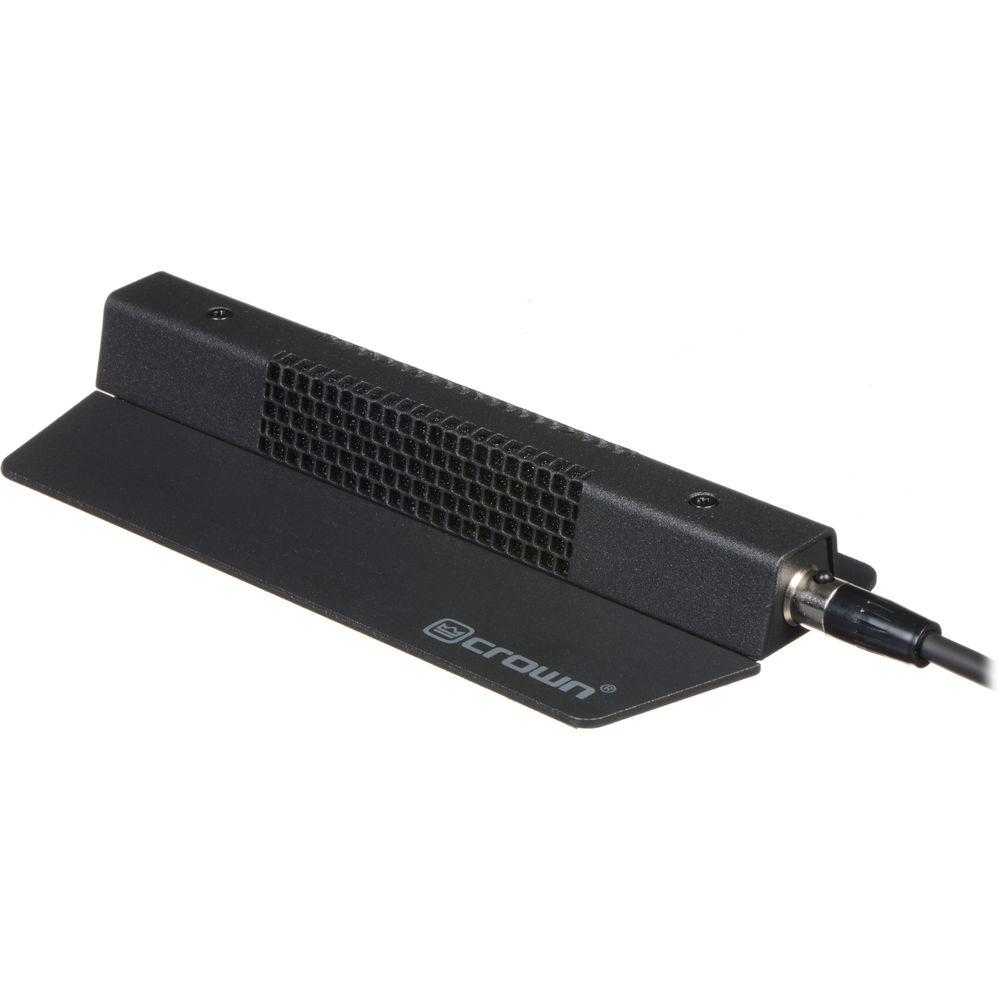

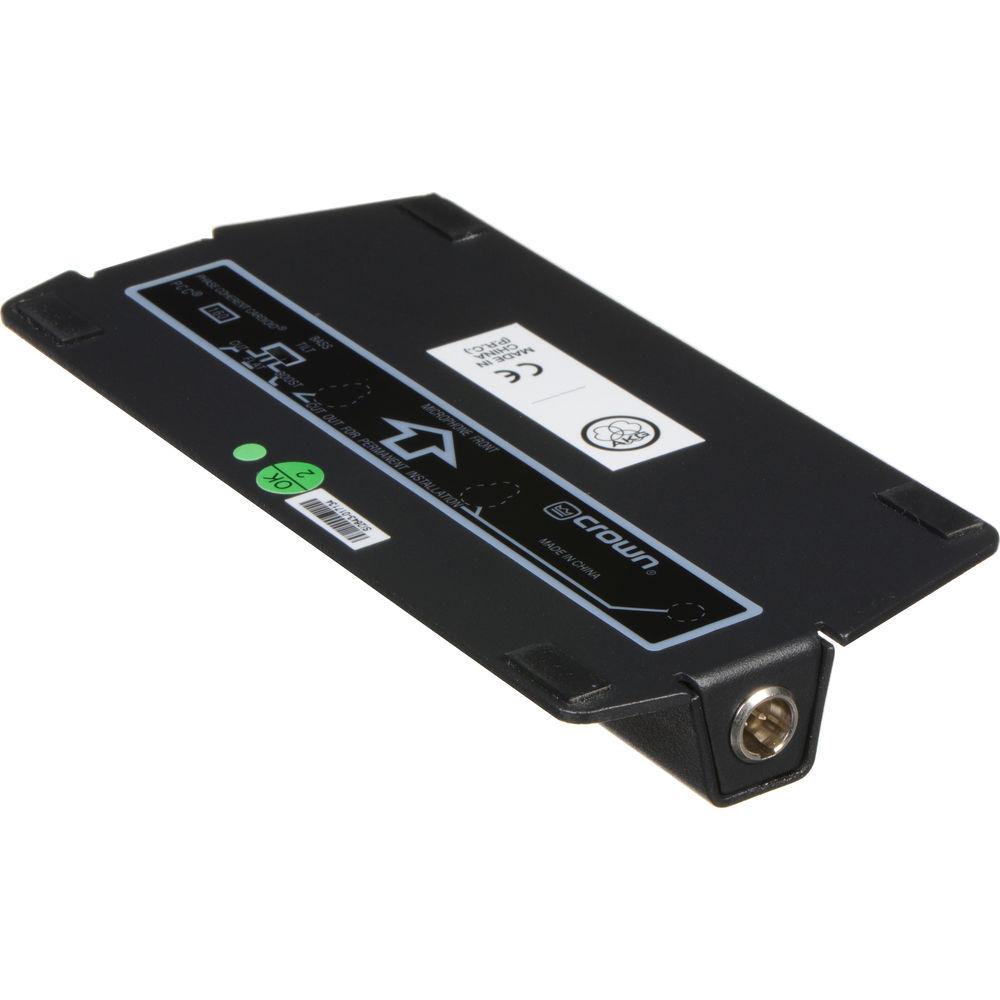

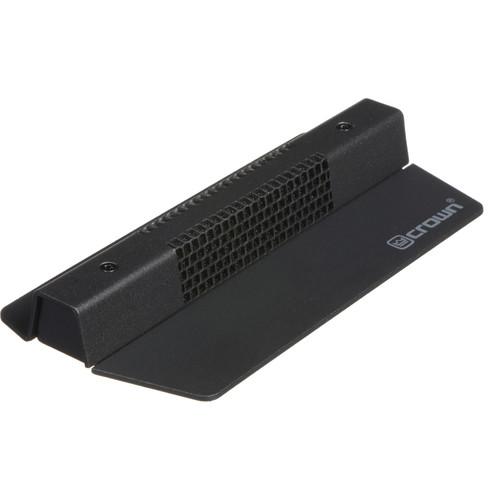

Product description The PCC160 Microphone from Crown Audio is a rugged phase coherent, surface mountable boundary microphone designed for accurate pickup and signal reproduction on stages, lecterns, news desks, conference tables and more. The microphone features a phase coherent, half-supercardioid pickup that minimizes pickup behind the capsule, resulting in high gain-before-feedback.The PCC160's surface mounting increases directivity by 3 dB, and its increased sensitivity provides accurate signal reproduction at long range. A frequency response of 50 Hz to 18 kHz provides accurate signal reproduction, with minimal low-frequency noise and rumble. A "Bass Tilt" switch further reduces low-frequency noise. The PCC-160 microphone features a rugged steel body, able to withstand accidental abuse. The PCC160 requires 12-48V phantom power and includes a 15' cable with switchcraft TA3-female and XLR-male connections. - Industry Standard Stage Microphone
- The PCC160's performance, range, and reliability make it a favorite for theatrical and performance capturing. Its increased sensitivity provides accurate signal reproduction, with frequency response tailored to give minimal low-frequency noise and rumble. A "Bass Tilt" switch further reduces low-frequency noise.
- Half-Supercardioid Polar Pattern
- The half-supercardioid polar pattern effectively eliminates signal at off-axis positions, such as orchestra pits.
- Phase Coherent Pick Up
- Boundary mounted miniature capsule provides accurate, phase coherent signal reproduction.
- Low Profile, Rugged Design
- The surface mountable, rugged steel construction is designed to withstand accidental abuse.
UPC: 885038024897 In the Box AKG PCC160 Phase Coherent Cardioid Microphone 15' Mini XLR to 3-Pin XLR Cable Carrying Pouch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PCC160 Phase Coherent Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG PCC160 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 18 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 120 dB SPL | | Impedance | 150 Ohms | | Load Impedance | 2000 Ohms | | Sensitivity | 22 mV/Pa | | | | Output Connectors | 1 x TA3F | | Operating Voltage | 12 V
24 V
48 V | | Length | 6.7" / 170.18 mm | | Weight | 6 oz / 170 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.5 x 4.8 x 2.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
