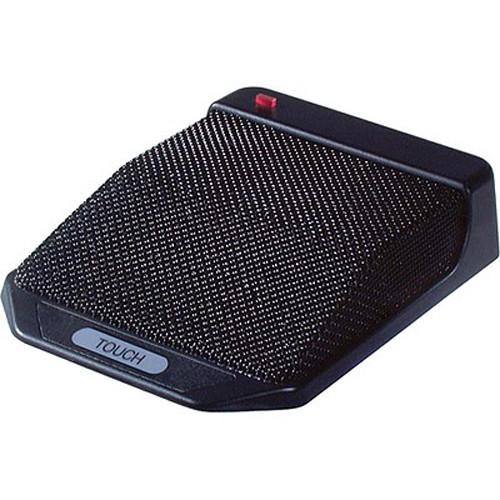

User Manual for AKG PCC170 SW Conference Microphone with Silent-Operating Switch Click to enlarge the picture
Contents of the user manual for the AKG PCC170 SW Conference Microphone with
- Product category: Boundary Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Boundary Microphones
|
User manual for the AKG PCC170 SW Conference Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The PCC170 SW from Crown Audio is a half-supercardioid boundary microphone designed for use in conferences, boardrooms, courtrooms etc. The supercardioid polar pattern provides a highly directional pick up, minimizing noise and ambiance at the off-axis sections of the microphone. A wide frequency response of 50 Hz to 20 kHz accentuates the midrange frequencies associated with the human voice while minimizing low frequency noise. A "Bass Tilt" switch further eliminates low frequency hum and noise. The microphone is powered via 12 to 48V phantom power source, such as a Crown PH-1A or PH-4B power supplies. The PCC170 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on, or momentary off. - Super-Cardioid Polar Pattern
- The super-cardioid polar pattern is effective in minimizing noise at the off-axis sections of the microphone, providing high gain before feedback and pick up at long range.
- Phase Coherent Pick Up
- Although mounted on a surface, direct and reflected signals are reproduced in phase.
- Wide Frequency Response
- The 50 Hz to 20 kHz frequency response accentuate frequencies associated with the voice, while minimizing low frequency noise.
- Bass Tilt Switch
- A Bass Tilt switch further minimizes noise born at low-frequencies.
- Silent-Operating On/Off Switch
- Reduces the number of simultaneously open mics
UPC: 885038024873 In the Box AKG PCC170 SW Conference Microphone with Silent-Operating Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PCC170 SW Conference Microphone with Silent-Operating Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG PCC-170 Specs | | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 120 dB SPL Peak | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 22 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4 mA | | Operating Voltage | 12 V
24 V
48 V | | Length | 4.84" / 123 mm | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.5 x 4.7 x 2.7" |
