Product description

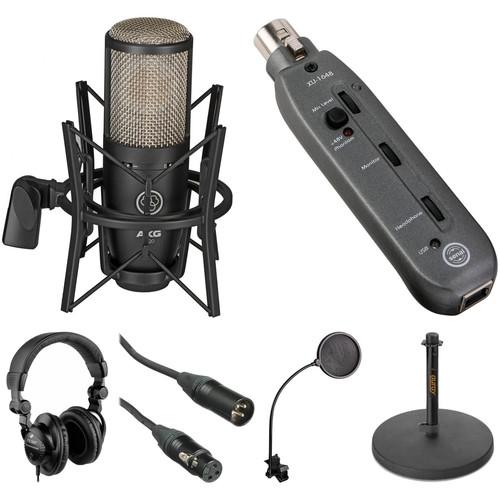

• AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black) For a variety of miking applications including lead vocals, acoustic guitar, and brass instruments, the black Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone from AKG features a 1" true condenser capsule with a cardioid polar pattern. The cardoid pattern helps focus audio capture in front of the capsule, reducing unwanted ambient sound from the other sides and back. A low-cut filter at 300 Hz allows you to cut unwanted low end from your sources, while its selectable -20 dB pad allows the mic to handle SPLs up to 155 dB, allowing it to be placed in front of a variety of sources. A spider shockmount and aluminum carry case are included. UPC: 885038037057
• Senal XU-1648 XLR-to-USB Interface The XU-1648 from Senal is a compact XLR-to-USB adapter interface that allows you to plug your microphone into the USB port of any Mac or Windows computer for use with your favorite digital recording software. Its rugged build and plug-and-play operation make it perfect for bands, recording artists, podcasters and more.

  For use with dynamic or condenser microphones, the XU-1648 delivers 16-bit/48-kHz studio-quality sound. It also features a microphone preamp with gain control and switchable 48V phantom power. Its 1/8" headphone output features a volume control and allows for zero-latency monitoring. There is also a monitor level control to adjust the balance between the audio playback from your computer and the sound of your microphone.

  In addition, the XU-1648 features a tough, all-metal chassis with non-slip neoprene feet on the bottom to prevent it from slipping.
  • Plug-and-play XLR-to-USB adapter
  • Rugged metal chassis
  • 16-bit/48-kHz studio-quality sound
  • Low-noise mic preamp with gain control
  • 1/8"(3.5mm) latency-free headphone output with level control
  • Monitor output adjusts balance between audio playback and live mic
  • Peak level indicator to help avoid clipping
  • USB bus powered
  • 6.25' USB cable included
  UPC: 847628569874
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281
• Auray PFSS-55 Pop Filter with Gooseneck The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249
• Auray TT-6110-BL Desktop Microphone Stand (Black) The black TT-6110-BL Desktop Microphone Stand from Auray features a round-cast metal base and has a fixed 5.5" height. It can be used for podcasting, voice-overs, video conferencing, and other home- or project-studio applications. With five non-slip rubber feet to ensure that the stand doesn't move or shift on smooth or polished surfaces, the desktop microphone stand is designed with a thicker shaft to support heavier condenser microphones. Built with a 5/8"-27 threaded mount, it is compatible with most shockmounts and microphone clips.
  Compact
  • The compact mic stand is ideal for tabletop audio applications such as podcasts, voice-overs, and video conferences—this mic stand is small enough to take with you to remote locations and easily fits into a gear bag or briefcase
  Standard 5/8"-27 Mount
  • The microphone mount features a 5/8"-27 thread, which is compatible with most microphone clips and shockmounts
  Fixed-Height Shaft
  • At a fixed height of 5.5", the mic shaft is the ideal height for desktop applications, and is suitable to support heavy, studio condenser microphones
  Weighted Base and Non-Slip Rubber Feet
  • Built for stability, the round-cast metal base provides steadiness for a microphone and shockmount, and the five non-slip rubber feet ensure the mic stand won't move, even when placed on smooth, highly-polished surfaces
  UPC: 847628598409

• Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black) zqvftvyezzutzdfrrtzyfz
• Spider Shockmount
• Aluminum Carry Case
• Limited 2-Year Warranty

• Senal - XU-1648 XLR-to-USB Interface

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

• Auray - PFSS-55 Pop Filter with Gooseneck

• Auray - TT-6110-BL Desktop Microphone Stand (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black)

  Capsule	1" True Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	20 MV/PA (-34 dBV)
  Maximum SPL	Without Pad: 135 dB (0.5% THD) With Pad Engaged: 155 dB (0.5% THD)
  Equivalent Noise Level	16 dB(A) (IEC 60286-4)
  Signal to Noise Ratio	78 dB(A), Re 1 PA
  Pad	-20 dB
  Low Cut Filters	300 Hz, 12 dB/Octave
  Impedance	Electrical Impedance: ≤ 200 Ohms Recommended Load Impedance: ≥ 1 kOhms
  Connector	3-pin XLR (pin 2 hot)
  Phantom Power	48 V ± 4 V to (IEC 61938)
  Current Consumption	≤ 3 mA
  Temperature Range	14 to 140° F / -10 to 60° C

  Box Dimensions (LxWxH)	9.4 x 8.9 x 5.2"

• Senal XU-1648 XLR-to-USB Interface

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Input 1 x 1/8" (3.5 mm) TRS Headphone Output
  Phantom Power	+48 V ± 2 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	25 Hz to 20 kHz
  Gain Range	Inputs: 35 dB
  Headphone Output Power	50 mW into 16 Ohms
  Impedance	Inputs: 1.2 kOhms

  Sample Rates	32, 44.1, and 48 kHz (D/A Conversion) 8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz (A/D Conversion)
  Bit Depth	16-Bit

  Power Consumption	2.2 W
  Phantom Power Current	15 mA per Channel

  Dimensions	5.1 x 1.2 x 1.1" / 13 x 3.1 x 2.8 cm
  Weight	3.3 oz / 94.0 g

  Box Dimensions (LxWxH)	6.7 x 6.6 x 1.7"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"

• Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"

• Auray TT-6110-BL Desktop Microphone Stand (Black)

  Material of Construction	Steel
  Base Type	Round cast-metal base
  Thread Size	5/8"-27 thread for microphone mounts
  Base Diameter	6.0" (15.2 cm)
  Height Range	9" (22.9 cm) with base
  Weight	2.1 lb (0.95 kg)

  Box Dimensions (LxWxH)	7.3 x 7.15 x 1.8"
