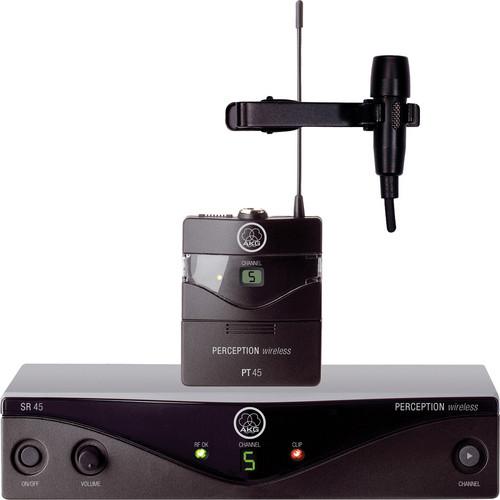

User Manual for AKG Perception Wireless Presenter Set - Frequency A 530 - 560MHz Click to enlarge the picture
Contents of the user manual for the AKG Perception Wireless Presenter Set -
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG Perception Wireless Presenter Set - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG Perception Wireless Presenter Set - Frequency A / 530 - 560MHz is intended to provide lightweight, quality wireless lavalier miking for theater performances, presentations, talk shows and other applications at an affordable price. The system includes the SR 45 wireless receiver, PT 45 bodypack transmitter and the CK 99 L lavalier microphone. Made to be inconspicuous, the CK 99 lavalier microphone clips on quickly and easily, and is designed to provide optimum vocal intelligibility. Choose between one of the 8 available UHF frequencies, and you're ready to speak or perform wirelessly on stage, in rehearsals, or during recordings or broadcasts. The PT 45 bodypack is designed to be compact and is powered with a single AA battery for up to 8 hours. - 8 hours of operation with a single AA size battery
- PT 45 bodypack transmitter compatible with all AKG MicroMics
- PT 45 bodypack designed to be compact and lightweight
- CK 99 L clip-on lavalier mic designed to be inconspicuous. Also desgined for a natural, airy sound with a cardioid polar pattern for high ambient noise rejection
UPC: 885038027942 In the Box AKG Perception Wireless Presenter Set - Frequency A / 530 - 560MHz PT 45 WirelessTransmitter AA Battery CK 99 L Miniature Lavalier Microphone W 444 Windshield SR 45 Receiver SMPS Switched Mode Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Perception Wireless Presenter Set - Frequency A 530 - 560MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3249H00010 Specs | | | Receiver Type | SR45 Receiver | | Carrier Frequency | A / 530 - 560MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | Squelch | -100 to -70 dBm Adjustable | | Connections | Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms | | Dimensions | 7.87 x 7.48 x 1.73" (200 x 190 x 44 mm) | | Weight | 0.80 lb (360 g) | | | | Transmitter Type | PT45 Bodypack | | Carrier Frequency | A / 530 - 560MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | RF Output | 10 mW | | Power | 1x 1.5V AA Battery
Up to 10 Hours | | Dimensions | 2.36 x 2.91 x 1.18" (60 x 74 x 30 mm) | | Weight | 0.13 lb (60 g) | | | | Microphone Type | CK 99 L Lavalier Microphone | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 15 to 18,000 Hz | | Signal to Noise Ratio | Equivalent noise level: 34dB-A | | Maximum Input Sound Level | 118dB (k=1 %) | | Power Requirements | 1.5 to 10VDC or 9 to 52V phantom power to IEC 61938 using MPA V L | | Output Impedance | 200 ohms
Recommended load impedance >2000 ohms | | Output Connectors | Mini XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Cable Length: 5' 4" (1.6m) | | Weight | 0.08 oz (2.5 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 16.9 x 13.2 x 3.1" |
