User Manual for AKG Perception Wireless Sports Set - Frequency U2 614 - 634 MHz Click to enlarge the picture
Contents of the user manual for the AKG Perception Wireless Sports Set -
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
 |
User manual for the AKG Perception Wireless Sports Set - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

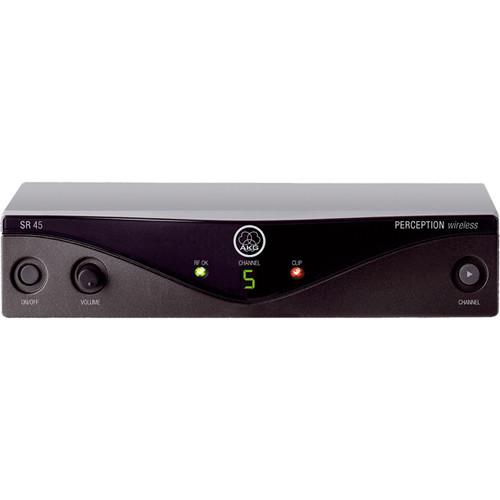

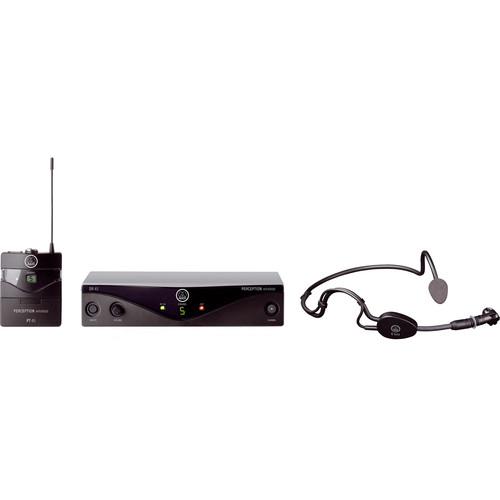

Product description The AKG Perception Wireless Sports Set is a lightweight, headworn wireless microphone system that allows for maximum user mobility during sports class instruction and all other hands-free applications. The system includes the SR 45 wireless receiver, PT 45 bodypack transmitter and the C 544 L headworn microphone. The C 544 L is a headworn miniature condenser microphone with a cardioid polar pattern and convenient behind-the-neck headband. The microphone body containing the condenser transducer is shock mounted on the microphone arm in order to suppress cable and mechanical noise. The microphone arm places the mic in front of the corner of your mouth, rather than directly in front of your mouth. This is to minimize pop noise and protect the microphone from contamination. Furthermore, a moisture shield on the microphone capsule is designed to make it difficult for sweat and makeup to penetrate into the microphone.To help you find an interference-free channel to use, the Perception Wireless Sports Set has 8 UHF frequencies to choose from. Designed for long-lasting continuous use, the compact PT 45 bodypack is powered with a single AA battery for up to 8 hours. The SR 45 receiver provides XLR and 1/4" jack outputs for connection to your mixer and amplification system. - 8 hours of operation with a single AA size battery
- PT 45 bodypack transmitter also compatible with all AKG MicroMics
- PT 45 bodypack designed to be compact and lightweight

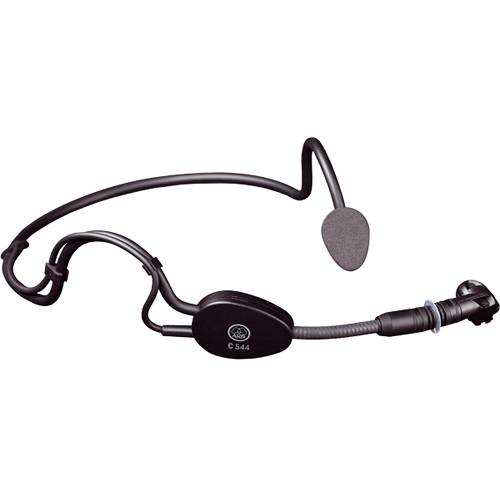

- C 544 L headworn microphone comes with moisture shields protecting the transducer from perspiration for sports instruction and other active applications. The C 544 L uses the transducer of the C 555 L and is designed to be quick and easy to put on or replace if necessary
UPC: 885038030829 In the Box AKG Perception Wireless Sports Set - Frequency U2 / 614 - 634 MHz Perception PT 45 Wireless Pocket Transmitter - Frequency U2 / 614 - 634 MHz AA Battery C544L Headworn Cardioid Microphone Perception SR 45 Wireless Receiver - Frequency U2 / 614 - 634 MHz Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Perception Wireless Sports Set - Frequency U2 614 - 634 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3248X00090 Specs | | | Receiver Type | SR 45 Receiver | | Carrier Frequency | U2 / 614 - 634 MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | Squelch | -100 to -70 dBm Adjustable | | Connections | Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms | | Dimensions | 7.87 x 5.90 x 1.73" (200 x 150 x 44 mm) | | Weight | 12.7 oz (360 g) | | | | Transmitter Type | PT 45 Bodypack | | Carrier Frequency | U2 / 614 - 634 MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | RF Output | 10 mW | | Power | 1x 1.5 V AA Battery
Up to 10 Hours | | Dimensions | 2.36 x 2.91 x 1.18" (60 x 74 x 30 mm) | | Weight | 2.1 oz (60 g) | | | | Microphone Type | C 544 L Headworn Microphone | | Transducer | Pre-polarized condenser microphone | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 40 mV/Pa (-28 dBV re 1 V/Pa) @ 1000 Hz | | Signal to Noise Ratio | 22 dB(A) | | Maximum Input Sound Level | 126 dB / 130 dB (for 1%/3% THD) | | Supply Voltage | 9 V battery supply through B 29 L or bodypack transmitter, or 9 to 52 V universal phantom power through MPA V L adapter | | Current Consumption | Approx. 2 mA | | Impedance | Electrical Impedance @ 1000 Hz: 200 ohms, electronically balanced
Recommended Load Impedance: > 2000 ohms | | Connector | Mini XLR 3-pin female | | Operating Temperature | 4 to 140°F (-20 to +60°C), R.H. at 68°F (+20°C): 99% | | Dimensions | 5.2" (130 mm) Diameter | | Cable Length | 5' (1.5 m) | | Net Weight | 1.1 oz (30 g) without connector | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 16.9 x 13.3 x 3.2" |
