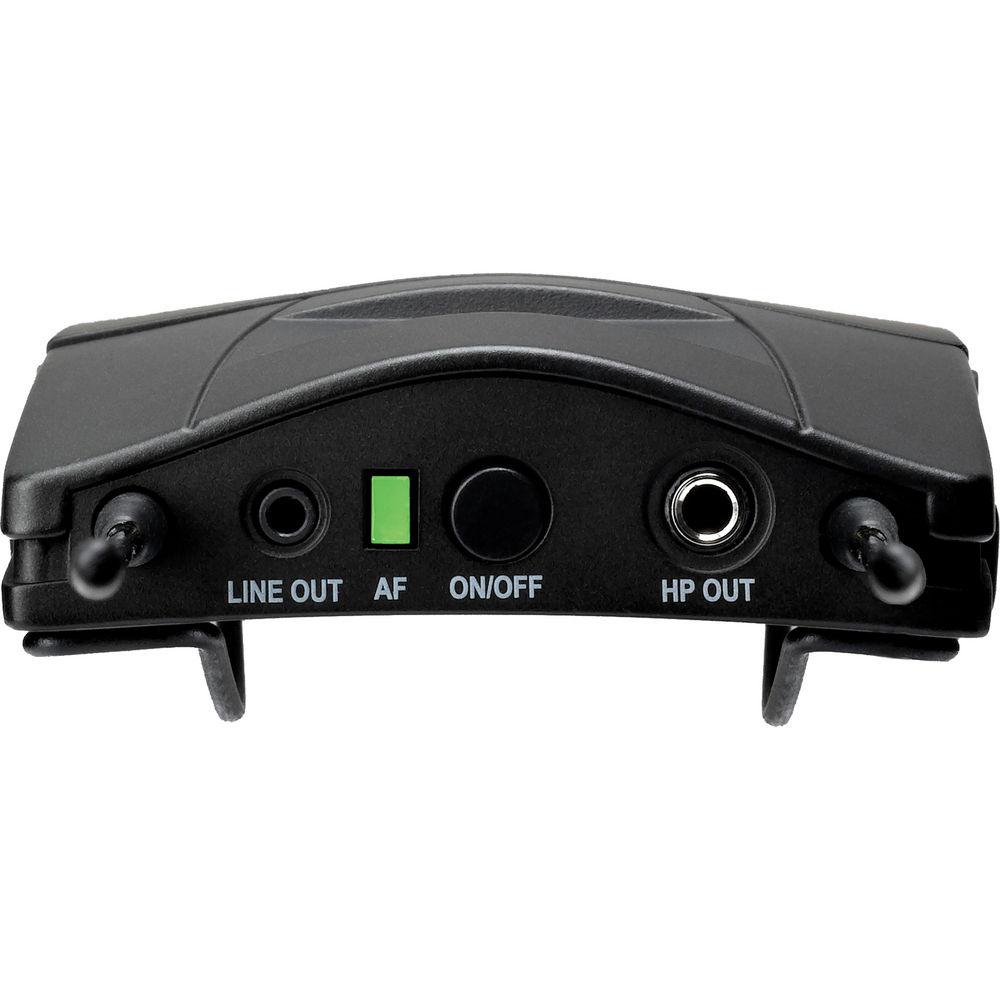

Product description The AKG PR4500 ENG Pocket Receiver (Band 8) is a two AA battery powered wireless receiver that can be camera mounted and operates on band 8 between 570 to 600 MHz. It features an all-metal body and backlit display that shows a remaining battery life readout. The PR4500 is capable of broadcasting on up to 18 channels simultaneously, which allows for a maximum channel count in bandwidth that increases signal strength.

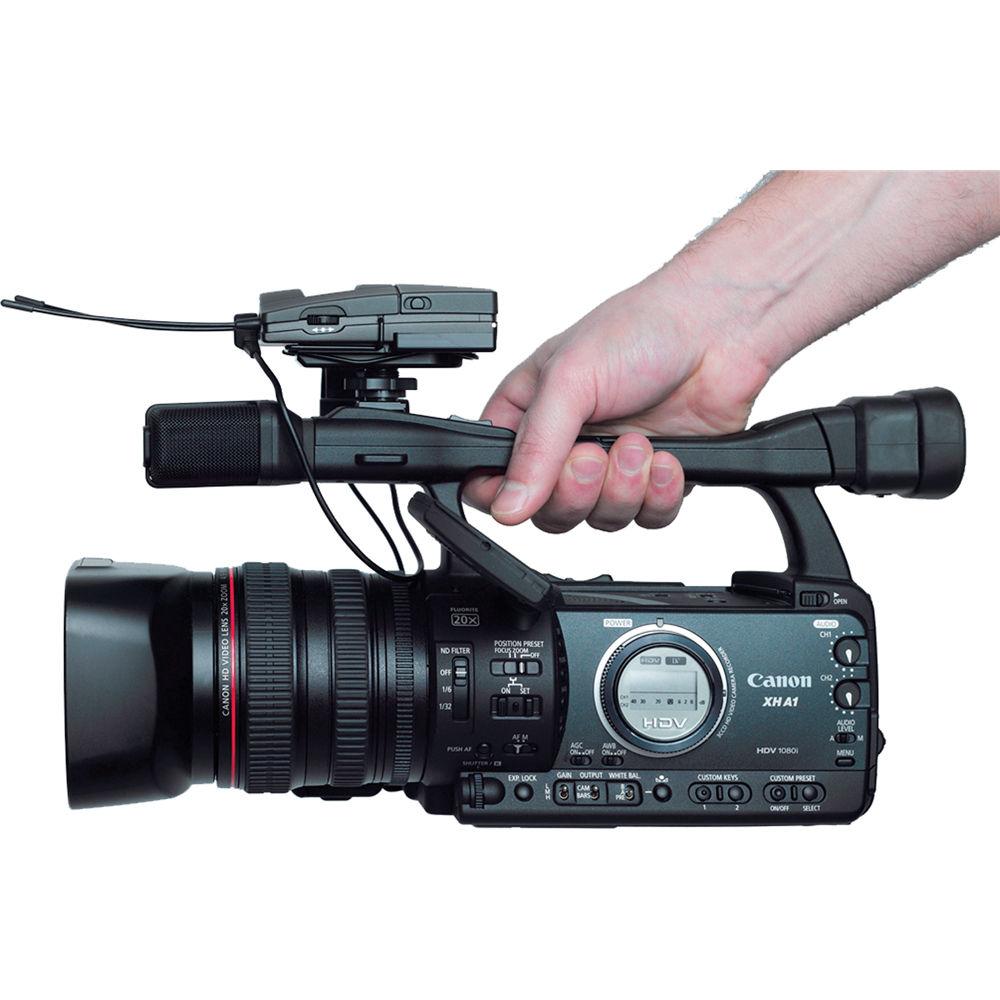

The lightweight, six-ounce body was designed for audio for video applications, and the included hot shoe adapter allows the PR4500 to be mounted to a variety of camcorders, DSLR cameras, or other A/V gear. It also features a 1/8" headphone output that allows you to monitor your audio input. - Lock mode prevents accidental changes to settings
- Auto setup and environment scan for fast setup
- Powered by 2 AA size dry batteries or optional BP4000 battery pack
- Designed specifically for use with the WMS4500 Series transmitters from AKG
- The Squelch feature has a variable threshold and allows you to mute the audio when the signal falls below that threshold
In the Box AKG PR4500 ENG Pocket Receiver (Band 8) Belt Clip 2 x AA Batteries Hot Shoe Adapter 2.5mm Jack to XLR Cable 2.5mm Jack to 1/8" Jack Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PR4500 ENG Pocket Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3203H00300 Specs | Carrier Frequency Range | Band 8: 570 to 600 MHz | | Switching Bandwidth | ≤ 31.5 MHz depending on band / 25 kHz | | Audio Bandwidth | 35 Hz to 20 kHz | | Total Harmonic Distortion | < 0.8% | | Modulation | FM | | Audio Formats | Mono | | Expander | Compatible with WMS4500 | | Headphone Output | 1 x 1/8" TRS jack
Rated output level: 387 mV = 10 mW into 150 Ω
Maximum power: 100 mW/channel
Signal to noise ratio: 90 dB(A) | | Line Output | 1x 2.5 mm TS jack
Rated output level: 316 mV rms (-10 dBV)
Output impedance: 600 Ω
Total harmonic distortion: < 0.5%
Signal to noise ratio: 100 dB(A) | | De-Emphasis | 150 µs | | Power Supply | 2x AA size dry batteries
Optional BP4000 battery pack | | Battery Life | 6 to 12 hours | | Squelch Threshold | Selectable: 100, -94, -88, -82 dBm | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (L x H x W) | 3 x 4 x 1" (70 x 90 x 25 mm) | | Weight | 6 oz (165 g) |
