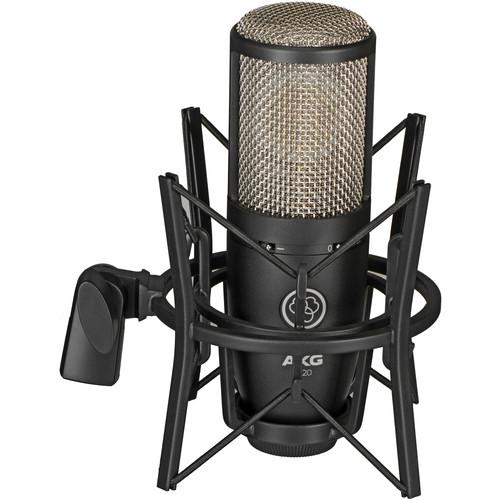

User Manual for AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG Project Studio P220 Large-Diaphragm Cardioid
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
|
User manual for the AKG Project Studio P220 Large-Diaphragm Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description For a variety of miking applications including lead vocals, acoustic guitar, and brass instruments, the black Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone from AKG features a 1" true condenser capsule with a cardioid polar pattern. The cardoid pattern helps focus audio capture in front of the capsule, reducing unwanted ambient sound from the other sides and back. A low-cut filter at 300 Hz allows you to cut unwanted low end from your sources, while its selectable -20 dB pad allows the mic to handle SPLs up to 155 dB, allowing it to be placed in front of a variety of sources. A spider shockmount and aluminum carry case are included. UPC: 885038037057 In the Box AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone (Black) Spider Shockmount Aluminum Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Project Studio P220 Large-Diaphragm Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG P220 Specs | Capsule | 1" True Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 20 MV/PA (-34 dBV) | | Maximum SPL | Without Pad: 135 dB (0.5% THD)
With Pad Engaged: 155 dB (0.5% THD) | | Equivalent Noise Level | 16 dB(A) (IEC 60286-4) | | Signal to Noise Ratio | 78 dB(A), Re 1 PA | | Pad | -20 dB | | Low Cut Filters | 300 Hz, 12 dB/Octave | | Impedance | Electrical Impedance: ≤ 200 Ohms
Recommended Load Impedance: ≥ 1 kOhms | | Connector | 3-pin XLR (pin 2 hot) | | Phantom Power | 48 V ± 4 V to (IEC 61938) | | Current Consumption | ≤ 3 mA | | Temperature Range | 14 to 140° F / -10 to 60° C | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 9.4 x 8.9 x 5.2" |
