User Manual for AKG Project Studio P420 Multi-Pattern Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG Project Studio P420 Multi-Pattern Large-Diaphragm
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
 |
User manual for the AKG Project Studio P420 Multi-Pattern Large-Diaphragm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

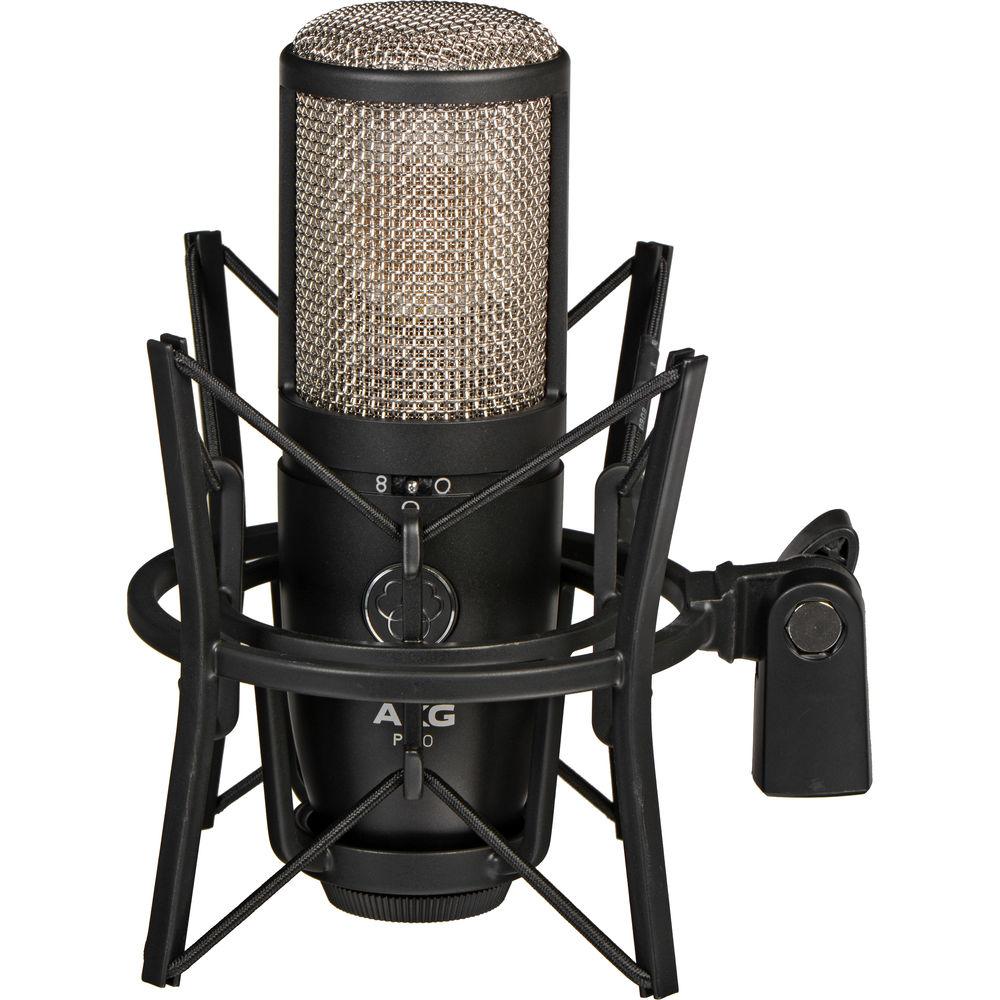

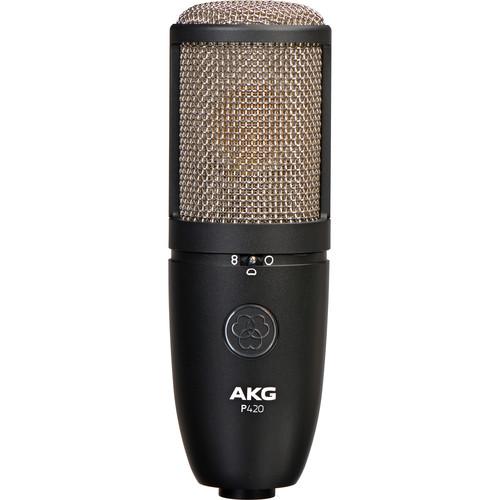

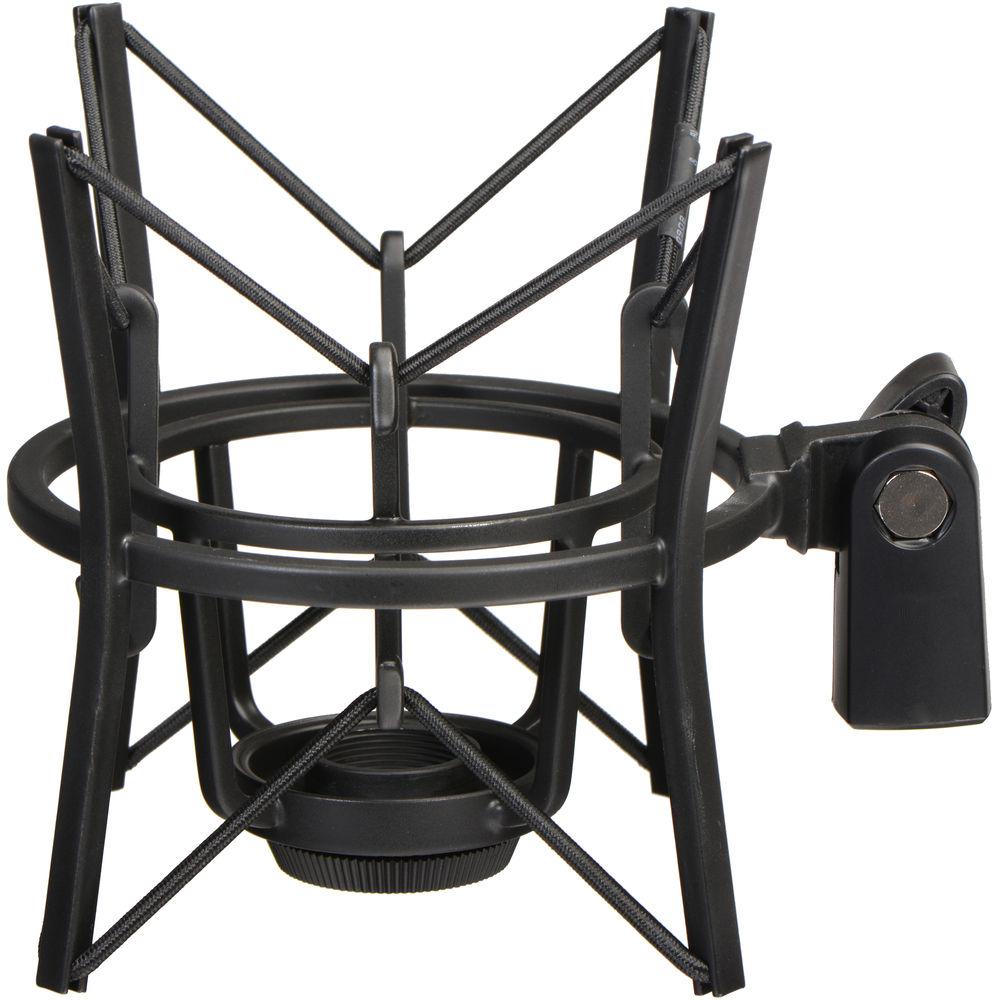

Product description Providing you with multiple recording patterns for demanding project studio applications, the Project Studio P420 Multi-Pattern Large-Diaphragm Condenser Microphone from AKG features a 1" dual-diaphragm construction optimized for use on a variety of sources including vocals, ensembles, grand piano, woodwind and brass instruments, and drums and percussion. You can select among cardioid, omnidirectional, or figure-8 polar patterns, while the -20 dB pad allows the P420 to handle up to 155 dB SPL, making it suited for louder sources. It is housed in an all-metal body, and includes a spider shockmount and aluminum carry case. UPC: 885038037064 In the Box AKG Project Studio P420 Multi-Pattern Large-Diaphragm Condenser Microphone Spider Shockmount Aluminum Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Project Studio P420 Multi-Pattern Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG P420 Specs | Capsule | 1" dual-capsule condenser | | Polar Pattern | Cardioid, omnidirectional, figure-8 | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | Cardioid: 28 MV/PA (-31 dBV) | | Maximum SPL | 135/155 dB (0/-20 dB Pad), 0.5% THD | | Equivalent Noise Level | 15 dB (A), (IEC 60286-4) | | Signal to Noise Ratio | 79 dB (A) Re 1 PA | | Pad | -20 dB | | Bass Cut Filter | 300 Hz, 12 dB/Octave | | Impedance | Electrical: ≤ 200 Ohms
Recommended Load Impedance: ≥ 1000 Ohms | | Connector | 3-Pin XLR (Pin 2 Hot) | | Phantom Power | 48 V +/- 4 V (To IEC 61938) | | Current Consumption | ≤ 3 MA | | Temperature Range | 14 to 140°F / -10 to 60°C | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 9.528 x 9.134 x 5.591" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
