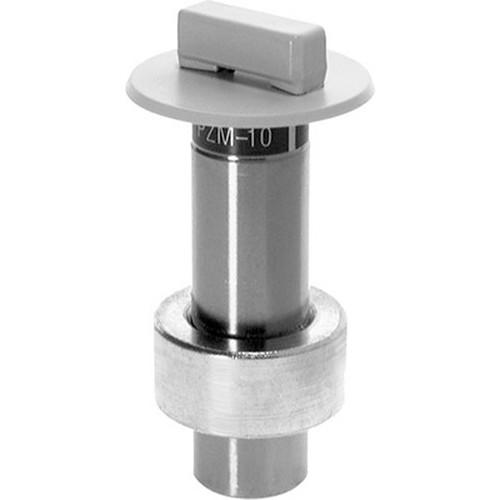

User Manual for AKG PZM10 LL Hemispherical Flush-Mount Boundary Layer Microphone with Line-Level Output Click to enlarge the picture
Contents of the user manual for the AKG PZM10 LL Hemispherical Flush-Mount Boundary
- Product category: Paging & Security Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Paging & Security Microphones
|
User manual for the AKG PZM10 LL Hemispherical Flush-Mount Boundary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The white AKG PZM10 LL is a hemispherical flush-mount boundary layer microphone designed for security, surveillance, and concealed operation. The inconspicuous low-profile design features a tubular steel housing that mounts in a 25/32" diameter hole, making it ideal for installation in a ceiling panel, wall, or table. The electret condenser capsule offers a hemispherical polar pattern and a wide frequency response of 80 Hz to 20 kHz. It outputs a balanced line-level signal to an unterminated pigtail lead and is powered via 12 to 24 VDC phantom power. - Inconspicuous Design
- The inconspicuous design features a miniature, concealed profile for surveillance and hidden operation.
- Optimized Frequency Response
- The PZM10 LL features an optimized frequency response, ideal for capturing vocals while minimizing low-frequency ambient noise.
- Line-Level Output
- This model features a balanced line-level output with an unterminated pigtail output. The PZM10 LL is powered via 12 to 24 VDC phantom power.
- Convenient Mounting
- The tubular steel housing mounts in a 25/32" diameter hole in a ceiling panel, wall, or table.
UPC: 885038024842 In the Box AKG PZM10 LL Hemispherical Flush-Mount Boundary Layer Microphone with Line-Level Output (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG PZM10 LL Hemispherical Flush-Mount Boundary Layer Microphone with Line-Level Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG PZM10LL Specs | Transducer | Electret condenser | | Polar Pattern | Hemispherical | | Frequency Response | 80 Hz to 20 kHz | | Impedance | 240 Ohms, balanced | | Sensitivity | Open Circuit: 2.5 mV/Pa (-52 dBV/Pa)
Power: -52 dBm/Pa | | Equivalent Noise Level | 26 dBA SPL typical | | Recommended Load Impedance | 1000 Ohms minimum | | Signal-to-Noise Ratio | 68 dB at 94 dB SPL | | Maximum SPL | 120 dB SPL (produces 3% THD) | | Power Requirements | 12 to 24 VDC phantom power | | Current Drain | 400
