User Manual for AKG SE-300B Power Supply for Blue Line Microphone Capsules Click to enlarge the picture
Contents of the user manual for the AKG SE-300B Power Supply for Blue
- Product category: Modular Microphone Components AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Modular Microphone Components
 |
User manual for the AKG SE-300B Power Supply for Blue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

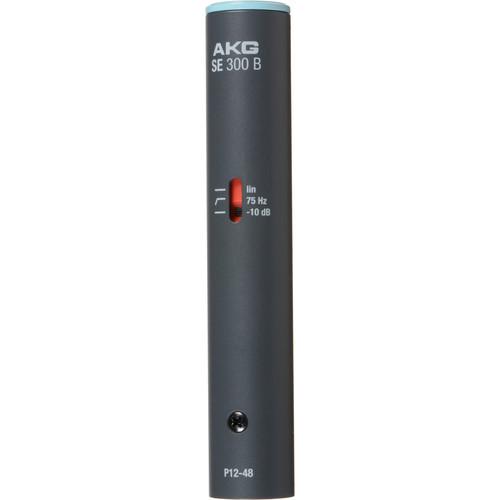

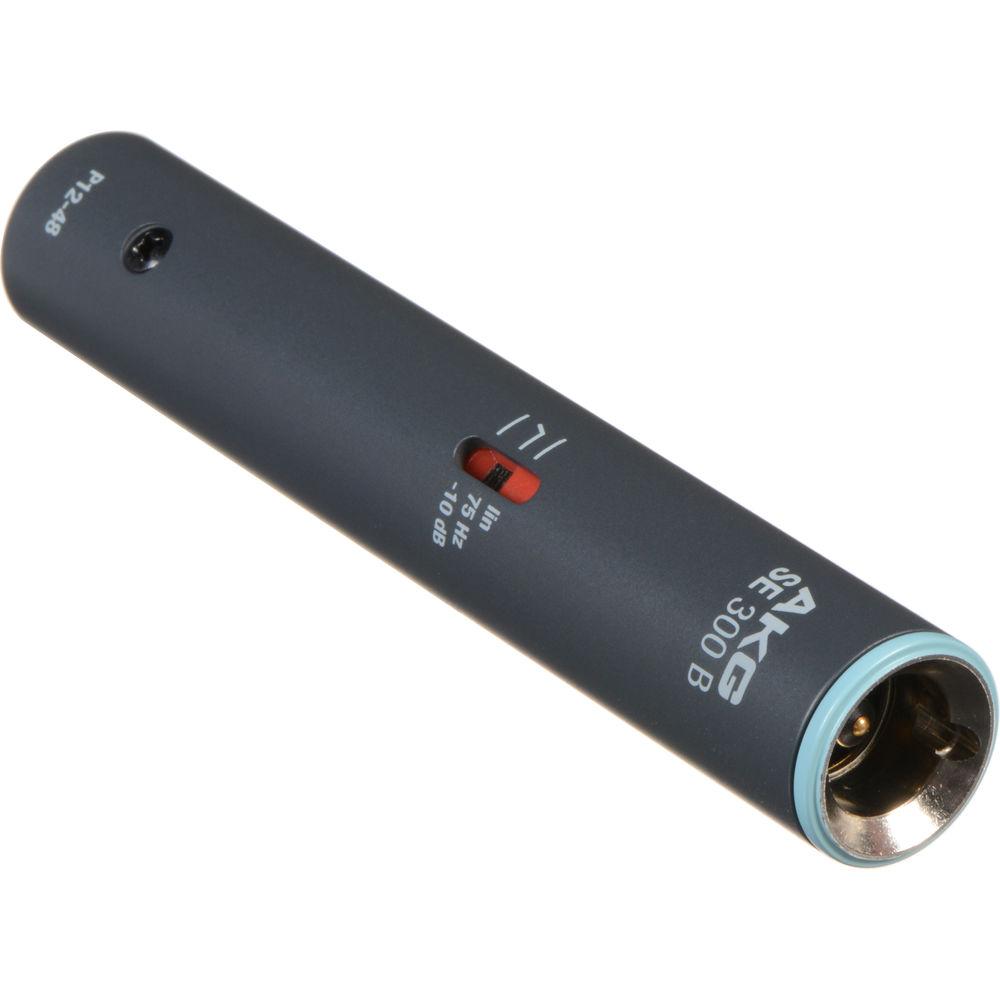

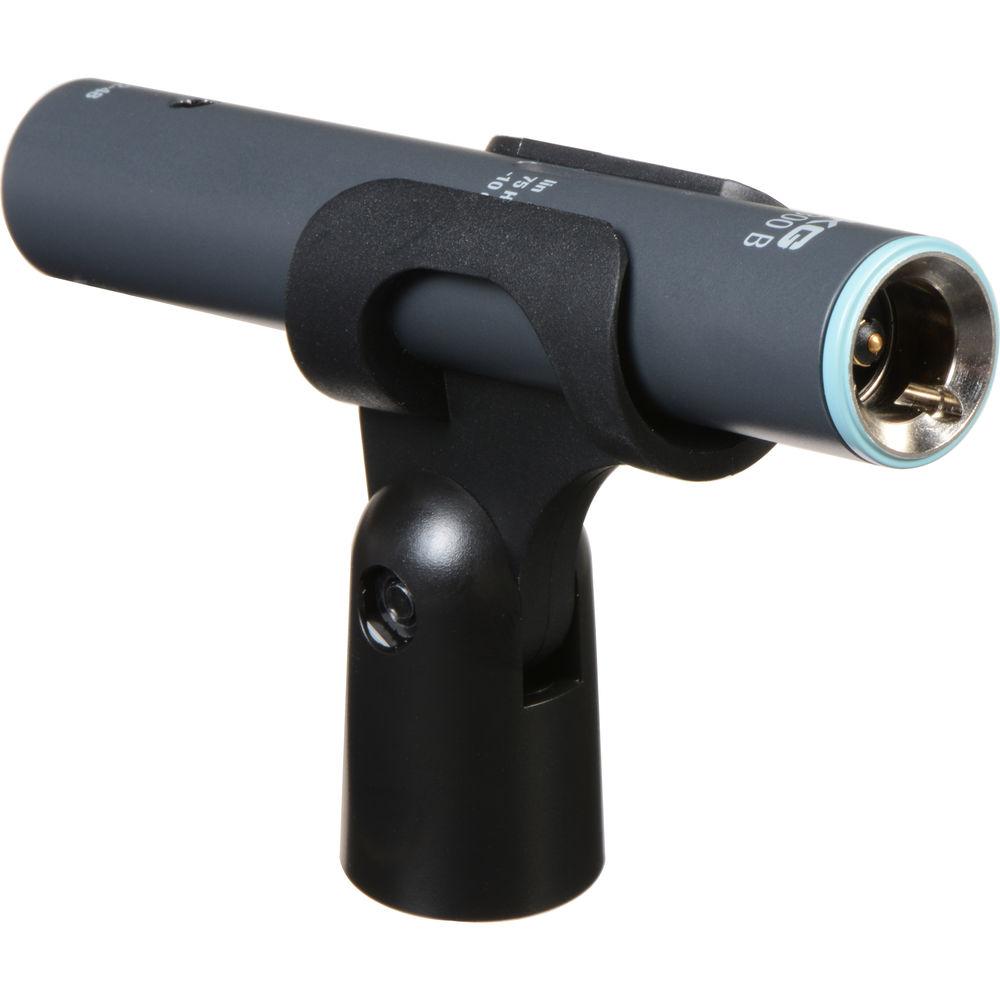

Product description The AKG SE-300B is a power supply and signal output stage for all AKG Blue Line series microphone capsules. The power supply is designed as the back-bone of the Blue Line series, allowing a variety of interchangeable capsules to be used as applications change.The SE-300B is a lightweight, rugged unit with an output stage that preserves the integrity of the audio signal while providing a very low noise floor and high output gain. A preattenuation switch provides extra headroom and eliminates distortion caused by overload when reproducing excessively loud signals. A low frequency roll-off switch reduces low frequency noise caused by wind, ambiance, bad grounds etc. The SE-300B is powered with an external 9 to 52 V phantom power source. - Blue Line Series Power Supply
- The SE-300B is designed for use with all AKG Blue Line series microphone capsules.
- Transformerless Output Stage
- Quiet noise-free signal at high output gain are a result of the transformerless output circuitry Incorporated in the SE-300B.
- Pad Switch
- A preattenuation pad switch enhances head room and prevents overload caused by excessively loud signals.
- Low Frequency Roll-Off
- A low frequency roll-off switch removes low frequency rumble and noise caused by wind, ambiance, etc.
UPC: 885038026822 In the Box AKG SE-300B Power Supply for Blue Line Microphone Capsules 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SE-300B Power Supply for Blue Line Microphone Capsules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SE-300B Specs | Frequency Response | 20Hz to 20kHz | | Pad | 10 dB, switchable | | Filter Type | Low Frequency Roll-Off: 12 dB/octave at 75 Hz | | Impedance | < 200 ohms | | Recommended Load Impedance | > 1000 ohms | | Connector | 3-pin XLR | | Power | Current consumption: <2 ma
Supply voltage: 9 to 52 V phantom power to DIN 45596 | | Dimensions | 0.7 x 4.3" (19 x 110mm) (Diameter x Length) | | Weight | 80g (2.8oz) | | | | Package Weight | 0.805 lb | | Box Dimensions (LxWxH) | 11.55 x 5.4 x 3.25" |
