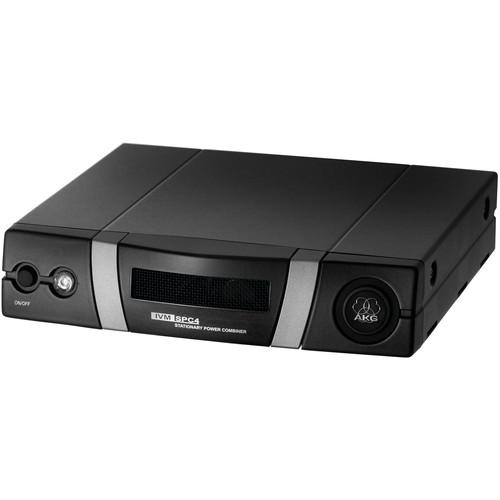

User Manual for AKG SPC4 - Wide-Band Antenna Combiner for IVM4 Click to enlarge the picture
Contents of the user manual for the AKG SPC4 - Wide-Band Antenna Combiner
- Product category: Accessories AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Accessories
|
User manual for the AKG SPC4 - Wide-Band Antenna Combiner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The SPC4 from AKG is a wide-band antenna combiner that combines the signals from up to four SST4 transmitters into a single signal. It has four BNC inputs and a single BNC output for connecting the transmitters and an antenna.
It has an easy-to-use front-panel interface with a power button, status LEDs, and a ventilation grill. The unit can run on a 12V power adapter (sold separately), or it can be connected to the PSU4000 power supply to power the SPC4 as well as any SST4 transmitters that are connected. Note: The SPC4 requires either the SRA2W passive directional antenna or the RA4000W passive omnidirectional antenna to operate. - Combines the signals from up to four SST4 transmitters
- Compact housing can be desk or rack mounted
- All I/O connections are made via BNC connectors
- Status LEDs and ventilation grill on front panel
- Can run on 12VDC stand-alone, or can be used with the PSU4000 power supply to provide power for all connected transmitters
In the Box AKG SPC4 - Wide-Band Antenna Combiner for IVM4 Rack Mounting Kit 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SPC4 - Wide-Band Antenna Combiner for IVM4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SPC4 Specs | Type | 4 to 1 Antenna Combiner | | Carrier Frequency Range | 500-865MHz | | System Gain | 0dB | | Inputs/Outputs | 4 x BNC Input Connectors, 50 Ohms
1 x BNC Output Connector, 50 Ohms | | Power | 12VDC/900mA (Combiner Only)
12VDC/2A (Powers SST4 Units) | | Dimensions (WxDxH) | 7.8 x 7.5 x 1.7" (200 x 190 x 44mm) | | Weight | 2.6 lbs (1.2kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
