User Manual for AKG SPR4500 IEM Bodypack Receiver Click to enlarge the picture
Contents of the user manual for the AKG SPR4500 IEM Bodypack Receiver
- Product category: Receivers AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Receivers
|
User manual for the AKG SPR4500 IEM Bodypack Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

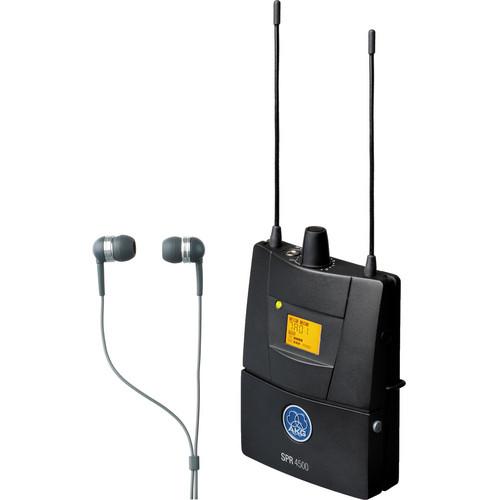

Product description The SPR4500 IEM Bodypack Receiver (BD8) from AKG is a bodypack receiver with two matched antennas that provides a backlit display and jog control for ease of use. The SPR4500 IEM Bodypack Receiver has a frequency range of 570.1 to 600.5MHz. The SPR4500 is powered by two AA batteries and provides up to 10 hours of continuous operation so you will never have to worry about running out of power at critical times. Plus the display indicates the received signal strength and battery status along with other parameters. The auto setup function makes finding clean frequencies a cinch and the pre-programmed frequency preset groups supports 14 intermodulation-free channels. Lastly, the headphone output is a 3.5mm stereo jack connector, which has been designed to accommodate a large number of different types of low impedance earphones. - The SPR4500 IEM Bodypack Receiver has a frequency range of 570.1 to 600.5MHz.
- Diversity bodypack receiver with two matched antennas
- Reference radio electronic design with signal attenuator to ensure reliable transmission
- Premium audio quality with ultra linear frequency response
- Enhanced automatic setup shows the number of free channels
- Preset groups support TV channels
- Quick frequency change for monitor engineers
- High-end and powerful headphone amplifier
- Combined on / off and volume control for ease of use
- Stereo, mono and dual mode for individual mix
In the Box AKG SPR4500 IEM Bodypack Receiver (BD8) Belt Clip 2 x AA Batteries 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SPR4500 IEM Bodypack Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SPR4500 Specs | Frequency Range | 570.1-600.5MHz | | Switching Bandwidth | ≤ 30.5MHz (country-dependent) | | Audio Bandwidth | 35Hz-20MHz (± 3 dB) | | THD | <0.8% typ. | | Signal to Noise Ratio | typ. >90 dB(A) | | Modular Distortion | FM, MPX stereo | | Channel Separation | > 40 dB(A) | | Audio Output | 3.5mm jack socket, 150 mW (rms) / 16 ohms | | Battery Life | 6-10 hours, volume dependent, 2 AA batteries or BP 4000 | | Certifications | Remaining battery life (Patent no. AT 408.280, GB 2.349.230, US 6,344,730) | | Dimensions | 2.8 x 3.5 x 1" (70 x 91 x 25mm) | | Weight | 5.8 oz. (165 g) |
