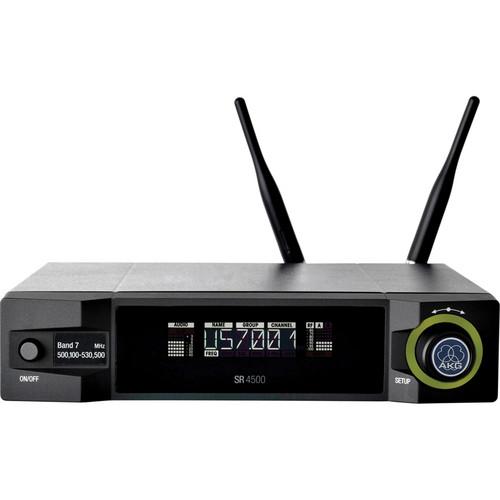

User Manual for AKG SR 4500 Rack Mount True Diversity UHF Wireless Receiver Click to enlarge the picture
Contents of the user manual for the AKG SR 4500 Rack Mount True
- Product category: Wireless Receivers AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Receivers
|
User manual for the AKG SR 4500 Rack Mount True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The SR 4500 from AKG is a compact, all-metal, true diversity, UHF wireless receiver, ideal for use as a part of a WMS 4500 wireless system. The receiver has 8 UHF bands that are each 30 MHz wide, providing up to 1200 selectable frequencies. If several frequency bands are used, the receiver allows up to 70 channels to operate simultaneously.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software. - True diversity receiver with all-metal case
- Available in eight UHF bands 30 MHz wide each, with up to 1,200 selectable frequencies
- Using several frequency bands allows up to 70 channels to be operated simultaneously.
- Transmitter battery status monitoring and tone code squelch
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- Backlit, programmable color display and jog wheel with selectable warning signal for ease of use
- Output for controlling external devices
- Integrated data interface for controlling and monitoring from a PC via System Architect
UPC: 885038021520 In the Box AKG SR 4500 Rack Mount True Diversity UHF Wireless Receiver Power Supply Rack Mounting Hardware 2 x Antennas 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SR 4500 Specs | Modulation | FM | | Carrier Frequency | Band 7 / 500 - 530 MHz | | Modulation | FM | | Deviation | Rated: 20 kHz at 1 kHz (sine wave) | | Squelch Threshold | Adjustable between -70 and -100 dBm | | Audio Frequency Response | 35 Hz - 20 kHz | | Total Harmonic Distortion (THD) | < 0.3% (at 1 kHz) | | Signal to Noise Ratio | 120 dBA | | Connectors | 1 x 3-Pin XLR Output (balanced)
1 x 1/4" TS Output (unbalanced) | | Current Consumption | 400 mA typical | | Power Requirement | 12 VDC from external power supply | | Dimensions (WxHxD) | 7.8 x 1.7 x 7.4" (200 x 44 x 190 mm) | | Weight | 2.2 lb (972 g) |
