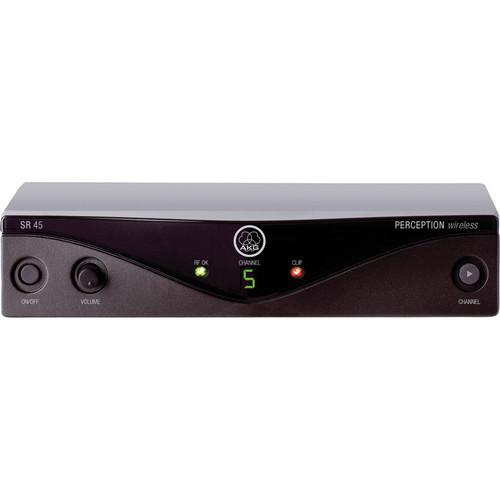

User Manual for AKG SR45 Perception UHF Wireless Receiver Click to enlarge the picture
Contents of the user manual for the AKG SR45 Perception UHF Wireless Receiver
- Product category: Wireless Receivers AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Receivers
|
User manual for the AKG SR45 Perception UHF Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The SR45 Perception High-Performance Wireless Stationary Receiver from AKG is a single-channel analog high-performance diversity wireless receiver that can transmit on your choice of 8 fixed frequencies and can be used with either the HT45 handheld transmitter or the PT45 bodypack transmitter. The unit is designed for instrumental and vocal performances in small clubs, as well as for use in houses of worship and in conference rooms.The SR45 provides a peak and RF signal LED for easy monitoring of systems status. Audio signal is output via XLR and 1/4" jack connectors, and the receiver comes with a universal, switched mode power supply kit for worldwide use. - 30 MHz selection bandwidth
- Audio clip and RF control LED on receiver for easy monitoring of your performance
- Switched mode power supply universal connector kit for worldwide use
- Automatic squelch circuit that switches the receiver off if the received signal is too weak. This works to suppress interference noise the receiver may pickup while the transmitter is off
In the Box AKG SR45 Perception UHF Wireless Receiver (Band M: 823.1 - 831.9 MHz) Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SR45 Perception UHF Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SR45 Specs | Frequency Bandwidth | 40 to 20,000 Hz | | Carrier Frequency Range | Band M: 823.1 - 831.9 MHz | | Signal to Noise Ratio | 105 dB-A | | Total Harmonic Distortion (THD) | 0.8% (at 1 kHz) | | Switching Bandwidth | 30 MHz | | Recommended Simultaneous Channels | 5 | | Frequency Selection | 8 fixed frequencies | | Range | Line of Sight: 98.4' (30.0 m) | | Modulation | FM | | Sensitivity | -100 dBm | | Outputs | Balanced XLR (Male)
Unbalanced 1/4" (Female) Mono Balanced XLR audio output adjustable from mic to line level. Output level at rated deviation: 500 mV RMS.
1/4" connection is unbalanced | | Contacts | 3-pin | | Power | Internal Power Supply:No
Type:DC socket
Voltage: 12 to 12 V | | Operating Temperature | 14 to 155°F (-10 to 55°C) | | Miscellaneous Features | Transmitter Synchronization:Manual
HiQnet Compatible:No
Racksize:1/2 Racksize (19")
Rackheight:1 RU | | Dimensions (L x W x H) | 7.5 x 7.8 x 1.7" (190.0 x 200.0 x 44.0 mm) | | Weight | 12.6 oz (360.0 g) |
