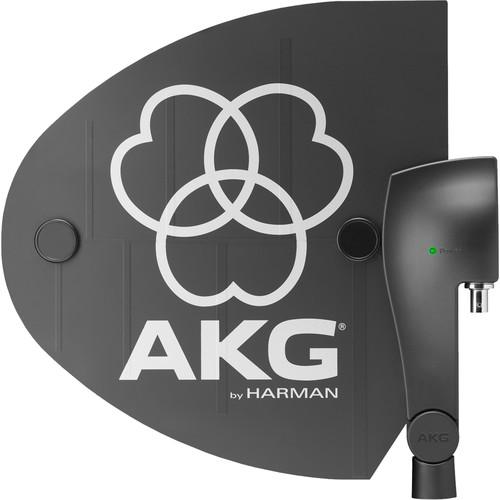

User Manual for AKG SRA2 B EW Active Directional Wide-Band UHF Antenna Click to enlarge the picture
Contents of the user manual for the AKG SRA2 B EW Active Directional
- Product category: Antennas AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Antennas
|
User manual for the AKG SRA2 B EW Active Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG SRA2 B/EW is an active directional UHF antenna designed for use with wireless microphone systems to compensate for cable loss in receiving applications. It features a built-in amplifier that provides a total of 22 dB of signal gain, ideal for long cable runs up to 1000'. The antenna operates in ultra-wide frequency range from 470 to 952 MHz, which makes it compatible with a wide variety of receivers. It also offers a covering angle of 70° to reduce unwanted radio signals.Equipped with a waterproof construction, the SRA2 B/EW is well suited for outdoor applications in extreme weather. The unit ships with a universal thread adapter to mount on floor stands with 3/8" or 5/8" screws. - Key Features
-
- Integrated high-performance antenna booster offers 22 dB total gain for cable lengths up to 1000'
- Remote powering via the antenna cable simplifies installation process
- Operates in ultra-wide frequency range from 470 to 952 MHz for universal use
- 70° covering angle to reduce unwanted radio signals
- Water-resistant construction to withstand extreme weather conditions
- Includes universal thread adapter to mount on floor stands with 3/8" or 5/8" screws
In the Box AKG SRA2 B/EW Active Directional Wide-Band UHF Antenna (470 to 952 MHz) Universal Thread Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SRA2 B EW Active Directional Wide-Band UHF Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3009H00180 Specs | General | Switching Bandwidth (From/To): 470 to 952 MHz
Antenna Gain: 21.5 dBi
Covering Angle: 70° | | Antenna Output | Amount: 1
Type: BNC
Gender: Female
Note: RF output (50 Ohms)
Recommended Load Impedance: 50 Ohms | | Power | 8 to 8 V, from powering interface | | Design | Body: Plastic
Finish: Black | | Dimensions (L x H x W) | 9.4 x 9.1 x 1.0" / 240.0 x 230.0 x 26.0 mm | | Weight | 8.8 oz / 250.0 g |
