Product description

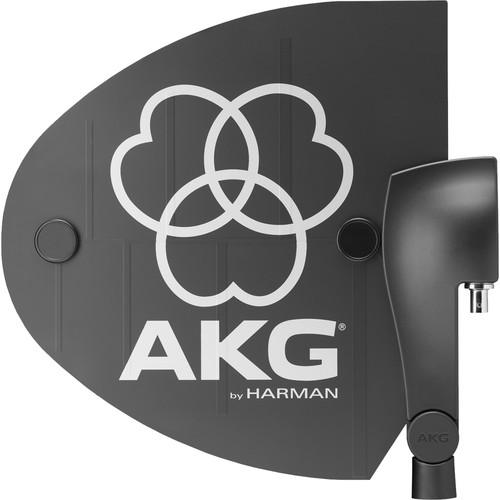

The AKG SRA2 EW is a passive directional UHF antenna designed for use with wireless microphones and in-ear monitoring systems to compensate for cable loss in transmitting and receiving applications. It provides a total antenna gain of 6 dB without requiring power, and is ideal for short cable runs up to 33'. The antenna operates in ultra-wide frequency range from 470 to 952 MHz, which makes it compatible with a wide variety of receivers. It also offers a covering angle of 70° to reduce unwanted radio signals. Equipped with a waterproof construction, the SRA2 B/EW is well suited for outdoor applications in extreme weather. The unit ships with a universal thread adapter to mount on floor stands with 3/8" or 5/8" screws.
    Key Features
    • Works as a transmitting and receiving antenna for wireless mics and in-ear monitoring
    • Passive technology requires no powering
    • For short cable lengths up to 33'
    • Operates in ultra-wide frequency range from 470 to 952 MHz for universal use
    • 70° covering angle to reduce unwanted radio signals
    • 6 dB antenna gain for long-distance applications
    • Water-resistant construction to withstand extreme weather conditions
    • Includes universal thread adapter to mount on floor stands with 3/8" or 5/8" screws
In the Box AKG SRA2 EW Passive Directional Wide-Band UHF Antenna (470 to 952 MHz)
  • Universal Thread Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AKG SRA2 EW Passive Directional Wide-Band UHF Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AKG 3009H00170 Specs

    General Switching Bandwidth (From/To): 470 to 952 MHz
    Antenna Gain: 4.5 dBi
    Covering Angle: 70°
    Antenna Output Amount: 1
    Type: BNC
    Gender: Female
    Note: RF output (50 Ohms)
    Recommended Load Impedance: 50 Ohms
    Design Body: Plastic
    Finish: Black
    Dimensions (L x H x W) 9.4 x 9.1 x 1.0" / 240.0 x 230.0 x 26.0 mm
    Weight 8.8 oz / 250.0 g
