User Manual for AKG SST4 - Stereo Transmitter for Wireless Monitoring Click to enlarge the picture
Contents of the user manual for the AKG SST4 - Stereo Transmitter for
- Product category: Transmitters AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Transmitters
|
User manual for the AKG SST4 - Stereo Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

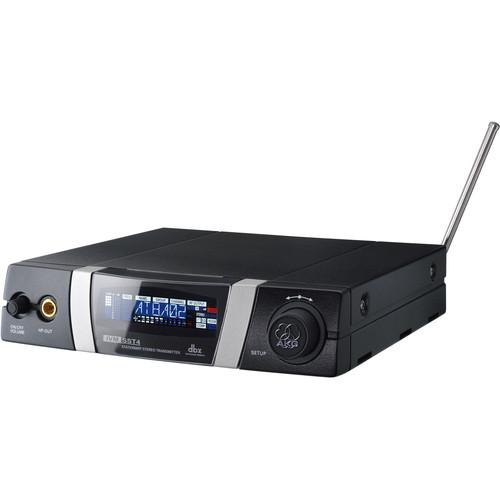

Product description The SST4 from AKG is a compact, all-metal stereo transmitter for wireless in-ear monitoring. It features integrated signal processing to meet the needs of the performer and the environment, and to provide a natural sound experience. It has 14 UHF channels to choose from, and up to 1200 frequencies that can be selected manually, which allows you to use the transmitter with any WMS 400 or 4000 wireless mic system.
The SST4 has an integrated DBX compressor, multiple EQ settings, and binaural room simulation algorithms for excellent performance. The RF output of the unit is adjustable up to 100mW for system matching, and a large backlit display provides vital info. - Transmits between 570-600MHz with 14 intermodulation-free channels and 1200 manually-selectable frequencies
- RF output can be adjusted up to 100mW
- Integrated DBX compressor, EQ settings, and binaural room simulations for high performance and flexibility
In the Box AKG SST4 - Stereo Transmitter for Wireless Monitoring (Band 8 - 570-600MHz) Power Supply Rack Mounting Kit Antenna Color Coding Kit 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SST4 - Stereo Transmitter for Wireless Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SST4 Specs | Carrier Frequency | 570-600MHz | | Modulation | FM, MPX Stereo | | Carriers Per Frequency Band | 14 | | RF Output | 10, 20, 50, 100mW (Selectable, Depending on Local Legislation) | | Audio Bandwidth | 35Hz - 20kHz | | Total Harmonic Distortion (THD) | < 0.8% (Typical) | | Signal to Noise Ratio | > 90dBA | | Antenna | 50 Ohm Rod Antenna with BNC Connector | | Connectors | 2 x XLR/TRS Combo Input Jacks
2 x 1/4" Audio Loop Jacks
1 x 1/4" TRS Line Output | | Power | 12VDC, 0.5A | | Dimensions (WxDxH) | 7.8 x 7.4 x 1.7" (200 x 190 x 44mm) | | Weight | 2.4 lbs (1.1kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
