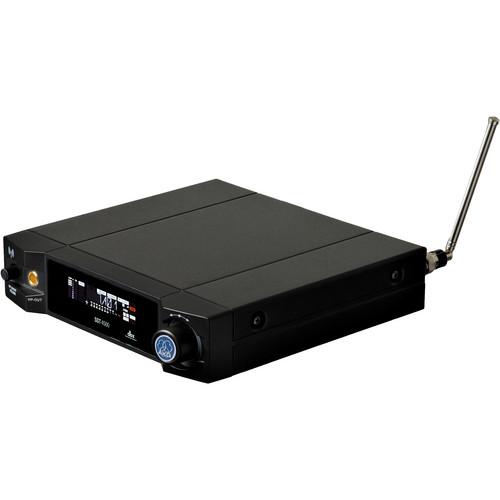

User Manual for AKG SST4500 IEM Stereo Transmitter BD7-50mW Click to enlarge the picture
Contents of the user manual for the AKG SST4500 IEM Stereo Transmitter BD7-50mW
- Product category: Transmitters AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Transmitters
|
User manual for the AKG SST4500 IEM Stereo Transmitter BD7-50mW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The SST4500 IEM Stereo Transmitter BD7-50mW from AKG is a stereo transmitter that supports the receiver with premium sound performance. The SST4500 IEM lets you adjust the RF output (50mW) within the approved range, which is important when the in-ear monitor system is used in conjunction with the wireless microphone system.The backlit display gives a concise view of all the settings and levels you will need to monitor when using the transmitter. The brightness of the display can be reduced in cases when you are working in a dark venue.The input signal level is digitally adjustable within a range of ±20 dB. Additionally, the unit allows you to set up a stationary wireless high-end mono transmission with the SPR4500 IEM wireless receiver, so that a wireless connection of 1000' (304.8 m) can be achieved easily.Lastly, the transmitter shall provide two 1/4" TS jack audio loop outputs for flexible mix setups, a 1/4" TRS stereo jack output for line signal and a 1/4" TRS stereo jack output for headphones. - Stereo transmitter with patented digital MPX generation
- Premium sound performance with ultra linear frequency response
- Adjustable radio output power of 50mW (country dependent)
- Low cut, dBx compressor, equalizer and unique binaural room simulations for a natural listening experience
- Available in seven 30MHz wide UHF bands with 1200 frequencies each
- Preprogrammed frequency preset groups
- Stereo, mono and dual mode
- PC control with optional HUB4000 Q and System Architect software
- Rugged half 19" (482.2mm) all metal case diversity transmitter
In the Box AKG SST4500 IEM Stereo Transmitter BD7-50mW AC12 EU/US/UK 500mA Power Supply Power Supply Rack Mounting Kit UHF Antenna 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG SST4500 IEM Stereo Transmitter BD7-50mW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG SST4500 Specs | Carrier Frequency Range | 500.1-530.5MHz | | Switching Bandwidth | ≤ 30.5MHz (country-dependent) | | Audio Bandwidth | 35Hz-20MHz (± 3 dB) | | THD | <0.5% typ. | | Signal to Noise Ratio | >90 dB(A) typ. | | Modulation | FM, MPX stereo | | Audio Inputs | 2 x XLR / jack hybrid socket (balanced XLR, unbalanced TS ¼" jack) | | Audio Outputs | 2 x loop TS ¼" jack sockets unbalanced
1 x line TS ¼" jack sockets balanced
1 x TS ¼" jack sockets balanced | | RF Output | 50mW | | Certifications | Remaining battery life (Patent no. AT 408.280, GB 2.349.230, US 6,344,730), Method of Simulating Sound Impression (Patent no. EP 641.143 (DE, DK, FI, FR, GB, IT, NL), JP 3.565.908, US 5.544.249), Stereo Multiplex Encoder (Patent no. ZL 0211301956) | | Dimensions | ½ 19" 1U rack: 7.8 x 1.7 x 8.5" (200 x 44 x 216mm) | | Weight | 2.4 lb. (1.1kg) |
