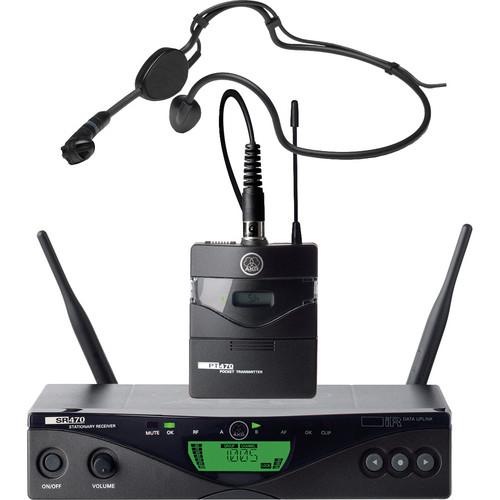

User Manual for AKG WMS 470 Sports Set Wireless Headworn Microphone System Click to enlarge the picture
Contents of the user manual for the AKG WMS 470 Sports Set Wireless
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG WMS 470 Sports Set Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG WMS 470 Sports Set Wireless Headworn Microphone System delivers quality, reliable wireless transmission, flexible features and intuitive control for cable-free guitar playing and other instruments on stage. The WMS 470 Sports Set consists of the SR470 diversity receiver, PT470 bodypack transmitter and C 544 L headworn microphone. The C 544 L headworn microphone features a rugged headband that wraps behind the neck. Its moisture shield protects the cardioid element from perspiration and humidity, making it an ideal choice for aerobics instruction, coaches and more.Users can select up to 1200 frequencies across the 30MHz tuning range. This also allows for operation of up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands.Automatic setup allows for quick and easy configuration to those who are less familiar with operating wireless microphone / instrument systems. Infrared sync between the transmitter and receiver allows for remote channel syncing. The transmitter omits 50mW of output power, is lightweight and operates for up to 14 hours on a single AA (lithium) battery. Additional features include all-metal receiver construction, balanced and unbalanced audio outputs and up to 16 pre-programmed frequencies per group over the 30.5 MHz tuning range. - Half 19" all metal case diversity receiver
- Automatic setup function designed for less experienced operators
- Up to 16 pre-programmed frequencies per group
- Pilot Tone prevents unexpected start-up noise
- Infrared link of all frequency and setup data to the transmitter
- Transmitter battery status monitoring
- Programmable warning functions using a two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
- Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omnidirectional antennas
In the Box AKG WMS 470 Sports Set Wireless Headworn Microphone System Power Supply AA LR6 Battery C 544 L Rugged Headworn Microphone 2 x BNC UHF Antennas RMU 4000 1U Rack Mount Kit Terminal Connector for Locking the On-Mute/PRG-Off switch 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS 470 Sports Set Wireless Headworn Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3308H00380 Specs | | | Frequency Range | Band 8 / 570.1 - 600.5MHz | | Switching Bandwidth | -/< 30.5MHz (country dependent) | | Sensitivity | 6.3 dBV / -100dBm | | Diversity Circuitry | Microprocessor-controlled diversity | | Modulation | Wideband FM | | Audio Bandwidth | 35 - 20,000Hz (±3dB) | | THD | -/< 0.3% | | Signal-to-Noise Ratio | typ. 120 dB(A) | | Audio Outputs | 1 x XLR sockets balanced
1 x TS 1/4" (6.3mm) jack sockets unbalanced | | Dimensions | 1/2 19inch 1U rack
7.8 x 1.7 x 7.4" (202 x 44 x 190mm) | | Weight | 2.2 lb (972g) | | | | Switching Bandwidth | -/< 30.5 MHz (country dependent) | | RF Output Power | 10 or 50mW (ERP, country dependent) | | Modulation | Wideband FM | | Audio Input | TB3M / 3-pin mini-XLR socket (max. 2.5Vrms) | | Audio Bandwidth | 35 - 20 000Hz (± 3dB) | | THD | -/< 0.7% | | Signal-to-Noise Ratio | > 120 dB(A) | | Battery Life | -/< 7 hours with one 1.5 V LR6 AA alkaline battery
-/< 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh) -/< 14 hours with one 1.5 V FR6 AA lithium battery | | Dimensions | 2.4 x 2.9 x 1.2" (60 x 73.5 x 30mm) | | Weight | 3.2 oz (90g) |
