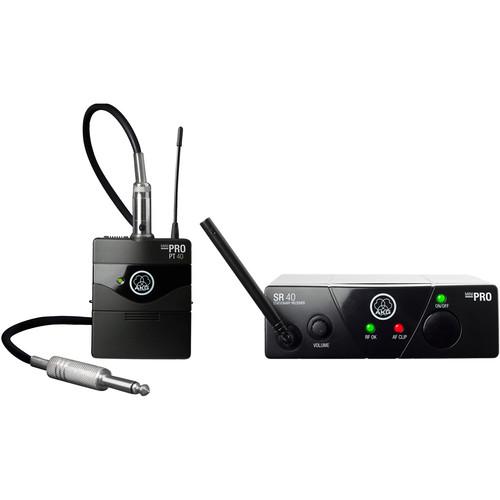

User Manual for AKG WMS40 Mini Single Instrumental Set Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the AKG WMS40 Mini Single Instrumental Set
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG WMS40 Mini Single Instrumental Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The WMS40 Mini Single Instrumental Set Wireless Microphone System from AKG is a true plug and play wireless solution that provides clear audio sound. It can be used with guitar and bass instruments, headsets, and instrumental mics in applications to capture audio for live stage, rehearsals, hotels, gyms, and more. In addition, it has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation. The WMS40 is a fixed frequency system and includes a SR40 single wireless receiver, PT40 mini pocket wireless transmitter, MKG L instrument cable, and a universal power supply. UPC: 885038038948 In the Box AKG WMS40 Mini Single Instrumental Set Wireless Microphone System (Band: B) SR40 Mini Wireless Receiver PT40 Mini Wireless Bodypack Transmitter AA Battery MKG L Instrument Cable Power Supply Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS40 Mini Single Instrumental Set Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3348H00120 Specs | | | Audio Frequency Response | 40 to 20 kHz | | Signal to Noise | 110 dBA | | Total Harmonic Distortion (THD) | 0.8 % @ 1 kHz | | Peak Deviation | 45 kHz | | Nominal Deviation | 15 kHz | | Radio Output Power | 10 mW | | Transmitter Synchronization | Manual | | Audio Input | 3-pin mini XLR-F | | Channels | 3 | | Number of Selectable Frequencies | 1 fixed frequency | | Range | 66' (20 m) | | Modulation | FM | | Pilot Tone | No | | Encryption | No | | Maximum Audio Level | 12 dB | | Battery | 1 x LR6 AA alkaline | | Operating Time | 30 hours | | Material of Construction | Plastic | | Dimensions (L x H x W) | 2.4 x 3.0 x 1.2" (60 x 75.5 x 30 mm) | | Weight | Not specified by manufacturer | | | | Audio Frequency Response | 40 to 20 kHz | | Signal to Noise | 110 dBA | | Total Harmonic Distortion | 0.8% @ 1 kHz | | Operating Temperature Range | 14 to 131°F (-10 to 55°C) | | Radio Sensitivity | -100 dBm | | Channels | 3 | | Number of Selectable Frequencies | 1 fixed frequency | | Frequency Selection | Fixed | | Range | 66' (20 m) | | Modulation | FM | | Encryption | No | | Pilot Tone | No | | Transmitter Synchronization | Not necessary | | HiQnet Compatible | No | | Rack Compatibility | 1/3 rack size (19")
Rack height: 1 RU | | Antenna | 1 x fixed external antenna | | Audio Output | 1 x balanced TRS 1/4" (6.3 mm) female jack
Balanced audio output adjustable from mic to line level
Output level at rated deviation: 500 mV rms | | Internal Power Supply | No
Type: DC socket
Voltage: 12 V | | Material of Construction | Metal | | Dimensions (L x H x W) | 5.2 x 1.7 x 5.2" (132 x 43 x 133 mm) | | | | Package Weight | 2.375 lb | | Box Dimensions (LxWxH) | 11.6 x 9.5 x 2.7" |
