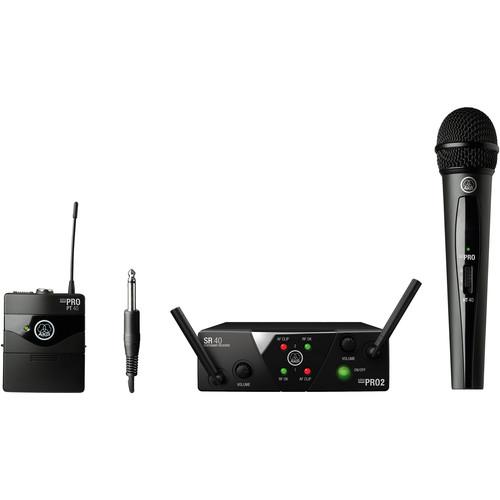

User Manual for AKG WMS40 Mini Wireless Handheld & Bodypack Dual System Click to enlarge the picture
Contents of the user manual for the AKG WMS40 Mini Wireless Handheld &
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG WMS40 Mini Wireless Handheld & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The WMS40 Mini Wireless Handheld & Bodypack Dual System from AKG features a SR40 mini dual-channel receiver, HT40 handheld transmitter, PT40 bodypack transmitter, and MKG L instrument cable. The system is small, portable, easy to set up, and is suitable for houses of worship, hotels, gyms, or band applications. The handheld microphone transmitter has a dynamic cardioid capsule that provides maximum gain before feedback for speech applications. It operates on a single AA battery that can run for up to 30 hours. The receiver offers two balanced outputs via 1/4" jack connectors. The PT40 wireless bodypack transmitter has a mini XLR audio connector that makes it compatible with all kinds of guitars, basses, and instrumental pickups. There is also a gain control for adjustment of the input volume and a noiseless On/Off/Mute switch. Plus, it operates up to 30 hours on a single AA battery. In addition, a lavalier or headset (sold separately) can also be used with the bodypack transmitter. The WMS40 Mini Wireless Handheld & Bodypack Dual System also has 3 LEDs indicating On/Off and RF status. Operation is fairly straightforward; simply connect the SR40 mini to a PA amplifier input, power the transmitters and receiver and you're ready for wireless performances in presentations, band rehearsals, and more. - Up to 30 hours of operation with one single AA battery
- Receiver power supply operates on any AC voltage from 110 to 240 VAC and includes EU, UK, and US adapters
- Easy to set up, plug-&-play operation
- Gain control on pocket transmitter
- HT40 Mini offers a metal wire-mesh cap and an On/Off/Mute switch
UPC: 885038038894 In the Box AKG WMS40 Mini Wireless Handheld & Bodypack Dual System (Channels A & B) SR40 Mini Dual Receiver HT40 Handheld Transmitter PT40 Bodypack Transmitter 2 x AA Batteries Stand Adapter MKG L Instrument Cable EU, UK & US Power Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS40 Mini Wireless Handheld & Bodypack Dual System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3352X00050 Specs | | | Frequency Band | Channels A & B | | Audio Bandwidth | 40 Hz to 20 kHz | | Signal to Noise | 110 dBa | | Total Harmonic Distortion (THD) | 0.8% at 1 kHz | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Radio Sensitivity | -100 dBm | | Channels | 2 | | Number of Selectable Frequencies | 2 fixed frequencies | | Selection | Fixed | | Radio Range | Line of Sight: 66' / 20 m | | Switchable RF Power | No | | Modulation | FM | | Transmitter Synchronization | Not necessary | | Rack Size | 1/3, 19" | | Rack Height | 1 RU | | Antenna | External fixed | | Output | 2 x 1/4" / 6.3 mm TRS female
Balanced audio output adjustable from mic to line level
Output level at rated deviation: 500 mV rms | | Powering Options | Internal Power Supply: No
Type: DC socket Voltage: 12 V | | Material of Construction | Body: Metal | | Dimensions (L x H x W) | 5.2 x 1.4 x 5.2" / 132 x 43 x 133 mm | | Weight | 20.5 oz / 581.0 g | | | | Audio Bandwidth | 40 Hz to 20 kHz | | Signal to Noise | 110 dBa | | Total Harmonic Distortion (THD) | 0.8% @ 1 kHz | | Operating Temperature Range | 14 to 131°F / -10 to 55°C | | Peak Deviation | 45 kHz | | Recommended Simultaneous Channels | 3 | | Number of Selectable Frequencies | 1 fixed | | Radio Range | Line of Sight: 66' / 20 m | | Switchable RF Power | No | | Modulation | FM | | Nominal Deviation | 15 kHz | | Radio Output Power | 10 mW | | Transmitter Synchronization | Manual | | Battery | 1 x LR6 AA alkaline | | Operating Time | 30 hours | | Material of Construction | Body: Plastic | | Dimensions (H x W) | 9.1 x 2.0" / 230 x 51 mm | | Weight | 6.9 oz / 195 g | | | | Audio Bandwidth | 40 Hz to 20 kHz | | Signal to Noise | 110 dBa | | Total Harmonic Distortion (THD) | 0.8% @ 1 kHz | | Operating Temperature Range | 14 to 131°F / -10 to 55°C | | Peak Deviation | 45 kHz | | Nominal Deviation | 15 kHz | | Radio Output Power | 10 mW | | Transmitter Synchronization | Manual | | Audio Input | Mini 3-pin XLR female | | Maximum Audio Level | 12 dB | | Recommended Simultaneous Channels | 3 | | Number of Selectable Frequencies | 1 fixed frequency | | Radio Range | Line of Sight: 66' / 20 m | | Modulation | FM | | Battery | 1 x LR6 AA alkaline | | Operating Time | 30 hours | | Material of Construction | Body: Plastic | | Dimensions (L x H x W) | 2.4 x 3.0 x 1.2" / 60 x 75.5 x 30 mm | | Weight | Not specified by manufacturer |
