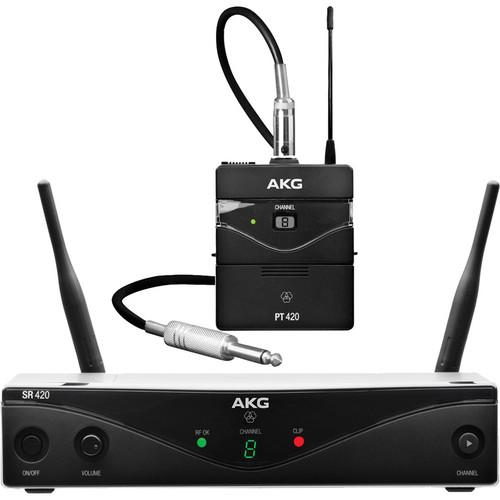

Product description The AKG WMS420 UHF Wireless Instrumental System is designed for live sound reinforcement applications such as for public address, presentations, installations, and performances that require up to eight simultaneously operating systems over a 30 MHz bandwidth. This system consists of a PT420 Beltpack Wireless Microphone Transmitter, an SR420 UHF Stationary Wireless Receiver, two detachable RF antennas, an AC adapter for the receiver, a AA-size battery for the transmitter, and a 1/4" instrument cable.
The UHF receiver features two detachable antennas that enable connection to a wide range of professional RF accessories such as antenna splitters and remote mounted directional antennas for use with multi-channel systems. The front panel of the receiver features an on/off button, a rotary volume control, a button for selecting one of the available eight carrier frequencies within the system's range, an LCD display that shows the selected receiving channel, an RF OK LED to indicate the presence of a signal, and a CLIP LED to indicate when the audio level is too high.
The back panel of the receiver features a squelch control knob that will automatically mute the audio output if the strength of the radio transmission frequency becomes too weak. The back panel also features a DC IN port with strain relief for connecting the AC adapter, a balanced XLR-3F output for connecting to a live mixer, and an unbalanced 1/4" output for connecting to a guitar or instrument amplifier.
The beltpack wireless transmitter comes with a 1/4" instrument cable, but will also work with any of AKG's line of MicroMics. The beltpack features a noiseless on/off/mute switch, a gain control knob, and an LED indicator light. The transmitter is powered by a single AA battery which provides between six and eight hours of operating time with a range of approximately 30 meters. The transmitter also includes charging contacts for use with rechargeable batteries and AKG's CU400 rechargeable base station (sold separately). - Detachable Antennas
- Enables the use of professional RF accessories such as antenna splitters and remote antennas in multi-channel systems
- Squelch Control
- Automatically mutes the audio output if the signal strength of the transmission frequency falls below an adjustable threshold
- Rechargeable Contacts on Transmitter
- Enables the use of rechargeable AA batteries
UPC: 885038036524 In the Box AKG WMS420 UHF Wireless Instrumental System (Band A: 530.025 to 559.00 MHz) SR420 Stationary Receiver PT420 Beltpack Transmitter 1/4" Instrument Cable 2 x Receiver Antennas AC Power Adapter AA-Size Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS420 UHF Wireless Instrumental System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3415H00010 Specs | | | Carrier Frequency | Band A: 530.025 to 559.00 MHz | | Diversity | Antenna switching | | RF Output | 10, 20, or 50 mW (depending on frequency band) | | Maximum Channel Output | Up to eight compatible channels within one frequency band | | Frequency Selection | Fixed frequencies | | Modulation | FM | | Range | 98' (30 m)
Further distances can be achieved using external antennas | | Audio Bandwidth | 40 to 20,000 Hz (±3 dB) | | Rack Mountable | 1/2 RU | | Dimensions (L x H x D) | 5.91 x 1.77 x 7.87" (150 x 45.0 x 200 mm) | | Weight | 13.2 oz (373 g) | | | | Type | XLR-3F mini | | Carrier Frequency | Band A: 530.025 to 559.00 MHz | | Maximum Level | 12 dB | | Impedance | 1 ohm | | Audio Bandwidth | 40 to 20,000 Hz (±3 dB) | | Signal to Noise Ratio | 105 dB-A | | THD | 0.8% at 1 kHz | | Transmitter Synchronization | Manual | | Battery Type | AA battery (LR 6 AA alkaline battery or HR 6 ASA NIHM rechargeable battery) | | Battery Life | Six to eight hours on one AA battery | | Dimensions | 2.36 x 2.91 x 1.18" (60.0 x 74.0 x 30.0 mm) | | Weight | 2.12 oz (60 g) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 17.0 x 13.4 x 3.2" |
