User Manual for AKG WMS4500 CK77 Instrument Set Click to enlarge the picture
Contents of the user manual for the AKG WMS4500 CK77 Instrument Set
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG WMS4500 CK77 Instrument Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

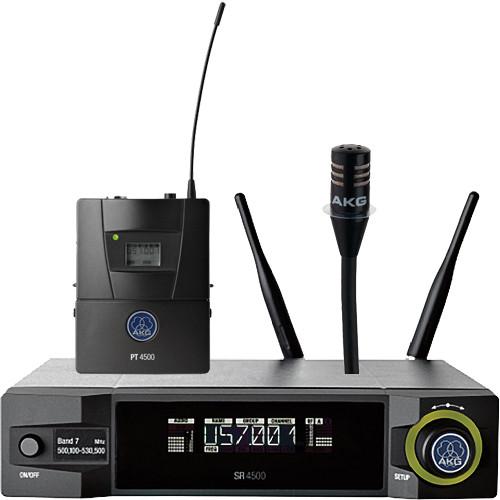

Product description The BD7: 500.1 to 530.5 MHz, of the AKG WMS4500 CK77 Instrument Set is a reference multichannel wireless microphone system providing high channel quantity, reliability, and easy setup. The CK77 WR-L’s ruggedness and high sound quality make it a handy tool for theater and broadcast applications. The CK77 Set includes a SR4500 Wireless Stationery Receiver with a frequency of BD7: 500.1 to 530.5 MHz, 50mW transmission power that provides maximum ease of use with an automatic setup function and scan of the radio frequency environment; a PT4500 Bodypack Transmitter with enhanced wireless audio quality for instrumental and vocal use; a CK77 WR-L Lavalier Microphone designed to protect the transducer from moisture and perspiration; a belt clip; a 19“rack mount kit; LR6 batteries; and whip antennas.
The package is a reliable workhorse in huge installations and on tour. An optional network remote control allows frequency co-ordination and monitoring of multi-channel systems via PC software System Architect, Apple iPhone/iPad/iPod or via Soundcraft Vi consoles.
The SR4500 Wireless Stationery Receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during sound check with information on the systems signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. Its precise battery life readout in hours is a valuable advantage in wireless applications.
The PT4500 Transmitter is an analog reference wireless body-pack transmitter with superior wireless audio quality for instrumental and vocal use. The pilot tone prevents unexpected system startup noise, continuously sending transmitter data, including mute switch position and remaining battery life, to the receiver. An optional RMS4000 external mute switch (sold separately) allows the user to mute the transmitter remotely. The transmitter offers a battery life of 15 hours with 2 standard AA-size alkaline batteries. With the integrated charging contacts, the optional BP4000 battery-pack (sold separately) can be charged inside the transmitter.
The CK77 WR is a small, omnidirectional professional lavalier microphone. The dual-diaphragm capsule has been designed to protect the transducer from moisture and perspiration. The CK77 WR uses 2 vertical diaphragms mounted back to back to cancel out mechanical and cable noise by mixing the signals of both capsules out of phase. Its ruggedness and superior sound quality make it a handy tool for theater and broadcast applications. The screw-on module capsule allows quick and easy service of the microphone. - Instrument Set
-
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- HiQnet network remote control and monitoring from PC via Harman System Architect software, Apple iPhone/iPad/iPod or Soundcraft Vi consoles
- Up to 70 simultaneous channels for safe channel management in huge productions
- Superior audio quality for highly demanding vocals, guitar and e-bass
- Pilot tone transmission for transmitter battery status monitoring and tone code squelch
- Transmitter
-
- Superior audio quality provides enhanced sound for guitar, electric bass, and highly demanding vocals
- Up to 50 mW transmission power for maximum radio signal strength for long-distance applications
- 15 hour battery life with 2 standard AA-size alkaline batteries
- Real-time display of the remaining operating time (battery lifetime) in hours
- Integrated charging contacts for quick charging of BP4000 battery-packs (sold separately) inside the transmitter
- CK77 WR-L Microphone
-
- Adjustable headband and left/right selectable boom for maximum comfort and flexibility
- Dual-diaphragm transducer for suppression of cable noise
- Resistant to moisture, perspiration, and salt withstands stage performances
- Interchangeable capsule module for quick and easy service
- Omnidirectional polar pattern for unchanging sound quality in all directions
- Includes H40/1 Tie Clip, W77 Windscreen, and H41 Tie Pin
In the Box AKG WMS4500 CK77 Instrument Set (BD7: 500.1 to 530.5 MHz, 50 mW) SR 4500 Rack Mount True Diversity UHF Wireless Receiver PT 4500 Wireless Bodypack Transmitter CK77WR/L Omnidirectional Lavalier Condenser Microphone Stand Adapter 19" Rack Mount Kit Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS4500 CK77 Instrument Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3208Z00280 Specs | | | Carrier Frequency Range | BD7: 500.1 to 530.5 MHz | | Modulation | FM | | Audio Bandwidth | 35 to 20,000 Hz | | THD | <0.3% typical | | Signal / Noise | Ratio: >120 dB(A) typical | | RF | Radiation: 50 mW maximum (ERP) | | Battery Life | With 2 AA Size Dry Batteries: 15 hours typical
With BP4000 Battery Pack (sold separately): 12 hours typical | | Dimensions | 2.8 x 3.5 x 1.0" (70.0 x 91.0 x 25.0 mm) | | Weight | 3.4 oz (95.0 g) | | | | General | Audio Frequency bandwidth: 20 to 20,000 Hz
Sensitivity: 8 mV/Pa
Equivalent Noise Level: 37 dB-A
Signal to Noise: 68 dB-A
Electrical Impedance: 3,500 Ω
Recommended Load Impedance: 10,000 Ω | | Polar Pattern | Polar Pattern: omnidirectional
Number: 1 | | Interface | Powering
Voltage: 1.5 to 12 V
Current: 0.6 mA | | Audio Output | Type: Mini XLR
Gender: Female
Contacts: 3-pin | | Dimensions | Height: 0.55" (14.00 mm)
Diameter: 0.2 to 0.2" (5.5 to 5.5 mm) | | Weight | 0.01 oz (0.40 g) |
