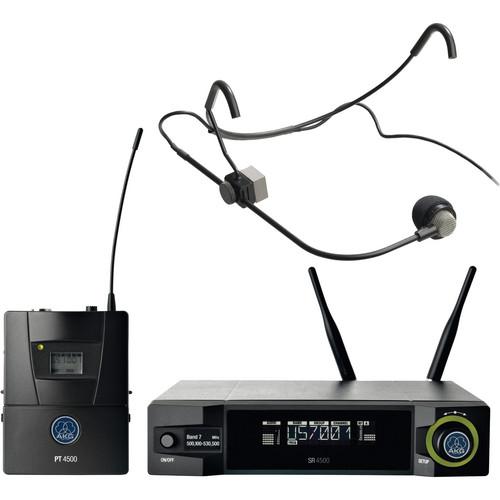

Product description The WMS4500 CM-311 L Wireless Head-Worn Condenser Microphone Set from AKG contains the PT4500 Pocket Transmitter, the SR4500 Receiver and the CM-311 L Head-Worn Condenser Mic. It is designed as a wireless set for vocalists and speakers performing in noisy environments that commonly occur in live sound situations. The CM-311 L is a head-worn condenser microphone that is designed to provide isolated, close proximity vocal pickup and offer a comfortable fit for the performer. It is intended to deliver a full, clear and distortion-free sound with maximum rejection. Incorporating Differoid (differential cardioid) noise canceling technology, the CM-311 L cancels sounds beyond a few inches away from sources such as guitar amps and crowd noise. This allows for a higher degree of isolation and less bleed in the vocal channel. It also helps to cancel out sound from the floor monitors, thus preventing it from feeding back through the mic. This allows up to 12 dB more gain before feedback. Also, the mic is equipped with an adjustable headband and boom to ensure a comfortable fit. The PT4500 pocket transmitter connects to your microphone via 3-pin Mini XLR connector. Housed in an aluminum body and weighing in at just over 3 ounces, the PT4500 is designed to be both rugged and lightweight. It has an RF output power of up to 50mW to maximize resistance to interference and dropouts. It also has a backlit display for reading it on stage, as well as a pilot tone system that sends transmitter status data to the receiver. Vital parameters such as mute switch position and remaining battery life can be monitored remotely helping to prevent dropouts, thus improving the overall performance. The unit can operate for up to 15 hours on standard AA batteries, or up to 12 hours on the optional rechargeable BP 4000 battery pack. The SR4500 is a true diversity UHF receiver that is designed for use with the PT4500 transmitter. The system is available in 8 UHF bands that are 30 MHz wide each. Each frequency preset provides up to 19 intermodulation-free channels and there are a total of 1,200 frequencies to select from. Using several frequency bands allows you to operate as many as 70 channels simultaneously. A large, backlit color display and a jog wheel make the SR4500 easy to use, and a programmable LED ring indicates important system parameters at a glance. The SR4500 also features Auto Setup and Environment Scan functions which automatically analyze the local RF environment, find usable frequency groups, and set frequencies. Furthermore, the optional HUB4000 Q ethernet interface allows you to connect multiple SR4500 receivers for integration into the HiQnet audio networking system. This allows for remote monitoring and configuration from your Windows based computer. - True diversity receiver housed in all-metal case
- Bodypack transmitter with aluminum body
- 30 MHz wide UHF band, with up to 1,200 selectable frequencies
- Using several frequency bands allows up to 70 channels to be operated simultaneously
- Transmitter battery status monitoring and tone code squelch
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- Backlit, programmable color display and jog wheel on receiver
- 3-pin Phoenix logic output on receiver for controlling functions on external devices such as channel muting on an AS 8 automatic mixer
- Integrated data interface for controlling and monitoring from a PC via System Architect software with optional HUB4000 ethernet interface
- Transmitter up to 50mW RF output to maximize range and minimize interference
- 15 hour transmitter battery life with 2 AA batteries
- Differoid noise canceling technology for high gain before feedback and increased isolation when compared with conventional cardioid microphones
- Headband design for comfort and freedom of movement
In the Box AKG WMS4500 CM-311 L Wireless Head-Worn Condenser Microphone Set (Band 1: 650 - 680 MHz) SR 4500 Rack Mount True Diversity UHF Wireless Receiver vwxxttyftq PT 4500 Wireless Bodypack Transmitter CM311L - Headworn Microphone Belt Clip 19" Rack Mount kit 2 x LR6 Batteries Power Supply 2 x Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS4500 CM-311 L Wireless Head-Worn Condenser Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3206X00010 Specs | | | Transducer | Electret condenser | | Polar Pattern | Cardioid | | Equivalent Noise | 26 dB-A | | Sensitivity | 1.25 mV/Pa (-58 dBV) | | Frequency Range | 50 Hz to 17 kHz | | Signal-to-Noise Ratio | 68 dB (A-Weighted) | | Maximum SPL | 148 dB | | Power Requirements | 18 to 48 V phantom power to DIN/IEC | | Impedance | 75 ohms balanced | | Output Connectors | 3-pin Mini XLR | | Cable | 42" (106 cm) | | Dimensions | Headband: 5.5" (13.97 cm), diameter
Boom: 7" (17.78 cm) x 3" (7.62 cm), (L x W) | | Weight | 2.1 oz (61 g) | | | | Antenna | 2 x UHF | | Modulation | FM | | Carrier Frequency | Band 1: 650 - 680 MHz (25kHz Steps) | | Audio Frequency Response | 35 Hz - 20 kHz | | Total Harmonic Distortion | < 0.3% | | Signal to Noise Ratio | > 120 dBA | | Connectors | 1 x 3-Pin balanced XLR Output, adjustable to -30, 0, +6 dB
1 x 1/4" TS output | | Base Dimensions (WxHxD) | 7.8 x 1.7 x 7.4" (200 x 44 x 190 mm) | | Weight | 2.2 lb (972 g) | | | | Modulation | FM | | Carrier Frequency | Band 1: 650 - 680 MHz (25 kHz Steps) | | RF Output | max. 50 mW (ERP) | | Audio Frequency Response | 35 Hz - 20 kHz | | Total Harmonic Distortion (THD) | <0.3% typical | | Signal to Noise Ratio | > 120 dBA | | Battery | 2 x AA Batteries, Up to 15 Hours
Optional rechargeable BP 4000 Battery, Up to 12 Hours | | Dimensions (HxWxD) | 2.8 x 3.5 x 1" (70 x 90 x 25 mm) | | Weight | 3.4 oz (95 g) |
