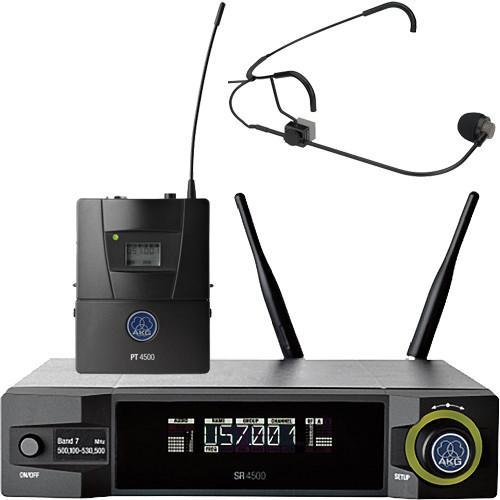

User Manual for AKG WMS4500 CM311 Set Reference Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the AKG WMS4500 CM311 Set Reference Wireless
- Product category: Wireless Systems AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Systems
|
User manual for the AKG WMS4500 CM311 Set Reference Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The BD1: 650.1 to 680.0 MHz AKG WMS4500 CM311 Set is a reference multichannel wireless microphone system providing high channel quantity, reliability, and easy setup. The CM311 Set includes a SR4500 Wireless Stationery Receiver that has a frequency of BD1: 650.1 to 680.0 MHz, 50mW of transmission power, and comes with a PT4500 Bodypack Transmitter. The package also contains a CM311 Reference head-worn microphone that connects to the transmitter. The system also includes a stand adapter, two AA batteries, two antennas, and one rack mounting kit.
The sound quality and reliability of the system makes it suitable for both installations and touring applications. An optional network remote control allows frequency co-ordination and monitoring of multi-channel systems via PC software System Architect, Apple iPhone/iPad/iPod or via Soundcraft Vi consoles.
The SR4500 Wireless Stationery Receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during sound check with information on the system's signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. The precise battery life readout in hours is a helpful when managing wireless applications.
The PT4500 Transmitter is an analog reference wireless body-pack transmitter with high wireless audio quality for instrument and vocal use. The pilot tone prevents unexpected system startup noise, continuously sending transmitter data, including the mute switch position and remaining battery life, to the receiver. An RMS4000 external mute switch (sold separately) allows the user to mute the transmitter remotely. The transmitter offers a battery life of 15 hours with 2 standard AA-size alkaline batteries. With the integrated charging contacts, the BP4000 battery-pack (sold separately) can be charged inside the transmitter.
The CM311 reference head-worn condenser microphone is designed for touring and live-sound applications with differoid noise-canceling technology to help reject ambient noise. It provides a cardioid polar pattern using a condenser capsule with an internal shock mount, a robust headband construction, and a mini XLR connection. -
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- HiQnet network remote control and monitoring from PC via Harman System Architect software, Apple iPhone/iPad/iPod or Soundcraft Vi consoles
- Up to 70 simultaneous channels for safe channel management in huge productions
- Pilot tone transmission for transmitter battery status monitoring and tone code squelch
In the Box AKG WMS4500 CM311 Set Reference Wireless Microphone System (BD1: 650.1 to 680.0 MHz, 50mW) SR 4500 Rack Mount True Diversity UHF Wireless Receiver PT 4500 Wireless Bodypack Transmitter CM311 Headworn Microphone Stand Adapter 19" Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS4500 CM311 Set Reference Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG 3206Z00010 Specs | | | RF Carrier Frequency Range | BD1: 650.1 to 680.0 MHz | | Modulation | FM | | Audio Bandwidth | 35 to 20,000 Hz | | THD | <0.3% typical | | Signal / Noise | >120 dB(A) typical | | Audio Outputs | Balanced 3-Pin XLR (Output level adjustable to -30, 0, +6 dB)
Unbalanced 1/4" TS Jack | | RF Power | 50 mW max (ERP) | | Power Supply | 12 V 500 mA | | Dimensions (W x H x D) | 7.80 x 1.70 x 7.40" (200 x 44.0 x 190 mm) | | Weight | 11.3 oz (125 g) | | | | Frequency Band | BD1: 650.1 to 680.0 MHz | | Modulation | FM | | Audio Bandwidth | 35 to 20,000 Hz | | THD | <0.3% typical | | Signal to Noise Ratio | >120 dB(A) typical | | RF Power | 50 mW max (ERP) | | Battery Life | 2x AA dry batteries: 15 hours typical
BP4000 12 hours typical | | Weight | 3.4 oz (95 g) | | Dimensions | 2.8 x 3.5 x 1.0" (70 x 91 x 25 mm) | | | | Frequency Bandwidth | 50 to 17,000 Hz | | Sensitivity | 1.25 mV/Pa | | Equivalent Noise Level | 26 dB-A | | Signal to Noise Ratio | 68 dB-A | | Impedance | 75 Ohms | | Voltage | 18 to 48 V | | Audio Output | Mini XLR-3F | | Dimensions (L x W x H) | 0.669 x 0.550 x 0.300" (17.76 x 13.97 x 7.62 x 0.300 mm) | | Weight | 0.13 lb (61 g) |
