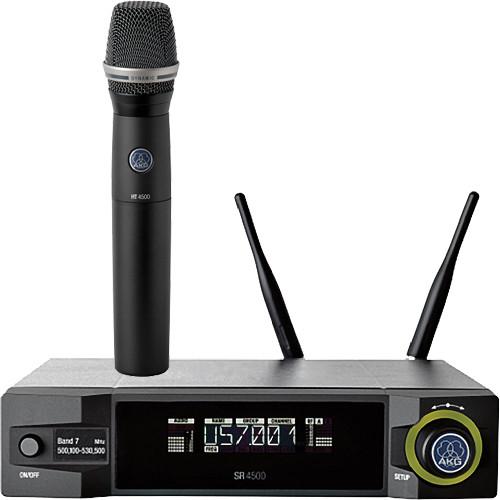

Product description The BD7: 500.1 to 530.5 MHz AKG WMS4500 D7 Set is a reference multichannel wireless microphone system providing high channel quantity, reliability, and easy setup. The Vocal Set D7 includes a HT4500 Hand-Held Transmitter featuring a D7 reference dynamic vocal microphone, which combines the subtle and open sound of a condenser capsule with the powerful resonance of a dynamic microphone; a SR4500 Wireless Stationery Receiver with a frequency of BD7: 500.1 to 530.5 MHz, 50mW of transmission power that provides maximum ease of use with an automatic setup function and scan of the radio frequency environment; a D5 WL1 Premium Dynamic Vocal Microphone Head for lead and backing vocals delivers powerful sound even on a noisy stage; a Stand Adapter; a 19“rack mount kit; LR6 batteries; and whip antennas.
With high audio quality, the WMS4500 package is a reliable workhorse in huge installations and on tour. An optional network remote control allows frequency co-ordination and monitoring of multi-channel systems via PC software System Architect, Apple iPhone/iPad/iPod or via Soundcraft Vi consoles.
The SR4500 Wireless Stationery Receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during sound check with information on the systems signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. Its precise battery life readout in hours is a valuable advantage in wireless applications.
The HT4500 is an analog reference wireless handheld transmitter that connects to a choice of 4 different microphones to cover a wide range of applications. The dipole-antenna design ensures reliable transmission even when a single pole of the antenna is completely covered by the user's hand. The pilot tone continuously sends transmitter data, including the mute switch position and remaining battery life to the receiver. The HT4500 offers an extended battery lifetime of 15 hours with 2 standard AA alkaline batteries. With integrated charging contacts, the optional BP4000 battery pack (sold separately) can be charged inside the transmitter. The readout of its exact battery life in hours is a valuable advantage in wireless applications.
The D5 WL1 Premium Dynamic Vocal Microphone Head for lead and backing vocals delivers a powerful sound even on a noisy stage. Its frequency independent supercardioid polar pattern ensures maximum gain before feedback. The D5 WL1 stands ensure a crisp sound that cuts through every mix. It is designed to fit the HT 4500 Handheld Transmitter. - SR 4500 Rack Mount True Diversity UHF Wireless Receiver The SR 4500 from AKG is a compact, all-metal, true diversity, UHF wireless receiver, ideal for use as a part of a WMS 4500 wireless system. The receiver has 8 UHF bands that are each 30 MHz wide, providing up to 1200 selectable frequencies. If several frequency bands are used, the receiver allows up to 70 channels to operate simultaneously.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software. - True diversity receiver with all-metal case
- Available in eight UHF bands 30 MHz wide each, with up to 1,200 selectable frequencies
- Using several frequency bands allows up to 70 channels to be operated simultaneously.
- Transmitter battery status monitoring and tone code squelch
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- Backlit, programmable color display and jog wheel with selectable warning signal for ease of use
- Output for controlling external devices
- Integrated data interface for controlling and monitoring from a PC via System Architect
UPC: 885038021520 - HT 4500 Wireless Handheld Microphone Transmitter The AKG HT 4500 is a professional-quality wireless handheld microphone transmitter that can be used as part of a WMS 4500 wireless system. Ideal for a wide variety of applications, there are 6 different interchangeable mic elements available, including dynamic and condenser cardioid and hypercardioid capsules. The mic operates on a 30MHz UHF band and has up to 1200 selectable frequencies with several preset frequency banks for quick matching to a receiver.
The transmitter has an RF output power of up to 50mW for maximum resistance to interference and dropouts. The mic has a backlit display and a pilot tone system that sends transmitter status data to a receiver, including mute switch position and remaining battery life. The mic can operate for up to 15 hours on standard AA batteries, or up to 12 hours on the optional BP 4000 battery pack. The BP 4000 has an integrated Smart battery Management System, and the mic has charging contacts for easy recharging on an optional charger. Note: Mic elements are sold separately. - Up to 50 mW RF output for maximum immunity to interference and dropouts
- Operates for up to 15 hours on AA size dry batteries, 12 hours on optional BP 4000 battery pack with integrated Smart Battery Management System
- 30MHz wide UHF band, up to 1200 selectable frequencies
- Choice of six interchangeable microphone elements
- Backlit display and jog switch for ease of use
- Charging contacts for easy battery charging on optional charger
- D5/WL1 Supercardioid Dynamic Microphone Capsule The AKG D5/WL1 is a supercardioid, dynamic microphone capsule designed to mount on the D5 handheld transmitter. The supercardioid polar pattern is most effective at eliminating off-axis noise and feedback. The capsule features a dual shockmount for enhanced protection against handling noise. The D5 handheld transmitter is a rugged handheld microphone with the sonic characteristics necessary to cut through loud stage performances.
- The supercardioid polar pattern provides a focused pickup pattern for enhanced feedback and noise suppression.
- The rugged D5 features a dual shockmount capsule for enhanced protection against handling noise.
- Patented AKG Laminated Varimotion Diaphragm accurately reproduces vocals.
UPC: 885038019503 In the Box Bundle Items SR 4500 Rack Mount True Diversity UHF Wireless Receiver sverebdtfesvuussexe HT 4500 Wireless Handheld Microphone Transmitter D5/WL1 Supercardioid Dynamic Microphone Capsule
Also Includes - Stand Adapter
- 19" Rack Mount Kit
- Power Supply
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS4500 D7 Set Reference Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SR 4500 Rack Mount True Diversity UHF Wireless Receiver
| Modulation | FM | | Carrier Frequency | Band 7 / 500 - 530 MHz | | Modulation | FM | | Deviation | Rated: 20 kHz at 1 kHz (sine wave) | | Squelch Threshold | Adjustable between -70 and -100 dBm | | Audio Frequency Response | 35 Hz - 20 kHz | | Total Harmonic Distortion (THD) | < 0.3% (at 1 kHz) | | Signal to Noise Ratio | 120 dBA | | Connectors | 1 x 3-Pin XLR Output (balanced)
1 x 1/4" TS Output (unbalanced) | | Current Consumption | 400 mA typical | | Power Requirement | 12 VDC from external power supply | | Dimensions (WxHxD) | 7.8 x 1.7 x 7.4" (200 x 44 x 190 mm) | | Weight | 2.2 lb (972 g) | - HT 4500 Wireless Handheld Microphone Transmitter
| Modulation | FM | | Carrier Frequency | Band 7 / 500 to 530 MHz | | RF Output | 50mW | | Audio Frequency Response | 35Hz - 20kHz | | Total Harmonic Distortion (THD) | < 0.3% | | Signal to Noise Ratio | > 120dBA | | Battery | 2 x AA Batteries, Up to 15 Hours
Optional BP 4000 Battery, Up to 12 Hours | | Dimensions (LxDiameter) | 9.7 x 1.5" (247 x 39mm) | | Weight | 11.3 oz (125g) | - D5/WL1 Supercardioid Dynamic Microphone Capsule
| Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 70Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 76 dB | | Maximum Input Sound Level | 147/156 dB SPL (for 1% / 3% THD) | | Power Requirements | No | | Output Impedance | | | Output Connectors | Screw-on | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer | | | | Box Dimensions (LxWxH) | 4.4 x 3.3 x 3.1" |
