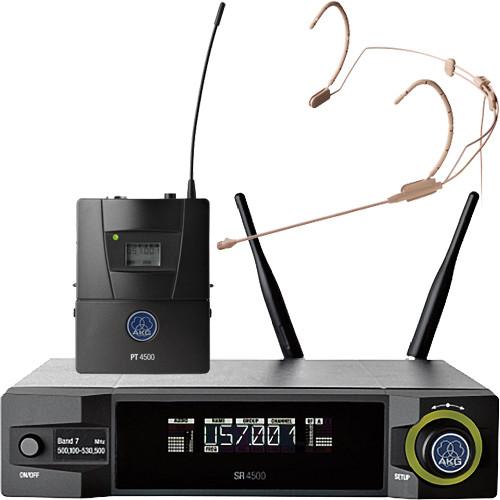

Product description The BD7: 500.1 to 530.5 MHz AKG WMS4500 HC577 Set is a reference multichannel wireless microphone system providing high channel quantity, reliability, and easy setup. The CM311 Set includes a SR4500 Wireless Stationery Receiver that has a frequency range of BD7: 500.1 to 530.5 MHz, 50 mW of transmission power, and comes with a PT4500 Bodypack Transmitter. The package also contains an HC577 Reference head-worn microphone that connects to the transmitter. The system also includes a stand adapter, two AA batteries, two antennas, and one rack mounting kit.
The sound quality and reliability of the system makes it suitable for both installations and touring applications. An optional network remote control allows frequency co-ordination and monitoring of multi-channel systems via PC software System Architect, Apple iPhone/iPad/iPod or via Soundcraft Vi consoles.
The SR4500 Wireless Stationery Receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during sound check with information on the system's signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. The precise battery life readout in hours is a helpful when managing wireless applications.
The PT4500 Transmitter is an analog reference wireless body-pack transmitter with high wireless audio quality for instrument and vocal use. The pilot tone prevents unexpected system startup noise, continuously sending transmitter data, including the mute switch position and remaining battery life, to the receiver. An RMS4000 external mute switch (sold separately) allows the user to mute the transmitter remotely. The transmitter offers a battery life of 15 hours with 2 standard AA-size alkaline batteries. With the integrated charging contacts, the BP4000 battery-pack (sold separately) can be charged inside the transmitter.
The HC577 reference head-worn condenser microphone is designed for on-stage applications. It uses a dual-diaphragm transducer to suppress cable noise, an interchangeable capsule module with an omni-directional polar pattern, and a construction which resists moisture, perspiration, and salts. - SR 4500 Rack Mount True Diversity UHF Wireless Receiver The SR 4500 from AKG is a compact, all-metal, true diversity, UHF wireless receiver, ideal for use as a part of a WMS 4500 wireless system. The receiver has 8 UHF bands that are each 30 MHz wide, providing up to 1200 selectable frequencies. If several frequency bands are used, the receiver allows up to 70 channels to operate simultaneously.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software. - True diversity receiver with all-metal case
- Available in eight UHF bands 30 MHz wide each, with up to 1,200 selectable frequencies
- Using several frequency bands allows up to 70 channels to be operated simultaneously.
- Transmitter battery status monitoring and tone code squelch
- Auto Setup, Environment Scan, and Rehearsal functions for quick and easy setup
- Backlit, programmable color display and jog wheel with selectable warning signal for ease of use
- Output for controlling external devices
- Integrated data interface for controlling and monitoring from a PC via System Architect
UPC: 885038021520 - PT 4500 Wireless Bodypack Transmitter The AKG PT 4500 is a professional-quality wireless bodypack transmitter that can be used as part of a WMS 4500 wireless system. The transmitter operates on a 30MHz UHF band and has up to 1200 selectable frequencies with several preset frequency banks for quick matching to a receiver.
The transmitter has an RF output power of up to 50mW for maximum resistance to interference and dropouts. It has a backlit display and a pilot tone system that sends transmitter status data to a receiver, including mute switch position and remaining battery life. The unit can operate for up to 15 hours on standard AA batteries, or up to 12 hours on the optional BP 4000 battery pack. The BP 4000 has an integrated Smart Battery Management System, and the transmitter has charging contacts for easy recharging on an optional charger. - Bodypack transmitter with rugged aluminum body
- 30 MHz wide UHF band, up to 1200 selectable frequencies
- Backlit display and jog switch for ease of use
- Up to 50mW RF output for maximum immunity to interference and dropouts
- Optional remote mute switch
- Operates for up to 15 hours on AA size dry batteries, 12 hours on optional BP 4000 battery pack with integrated Smart Battery Management System
- Charging contacts for easy battery charging on optional charger
UPC: 885038021742 - HC577 Headworn Microphone The AKG HC577 Headworn Microphone is designed for professional performance, broadcast and presentation application. The HC577's profile and inconspicuous design is intended to remain virtually invisible when worn. An AKG CK 77 omnidirectional capsule provides pristine audio quality while keeping noise to a minimum. The lightweight frame feature dual-ear temple pieces for extreme stability and optimum comfort.
- Omnidirectional Pattern
- An AKG CK 77 omnidirectional capsule provides pristine audio quality while keeping noise to a minimum.
- Insensitive to Moisture and Salt
- A patented body design protects the microphone's dual-diaphragm transducer from moisture and perspiration.
- Lightweight Frame
- The lightweight frame feature dual-ear temple pieces for extreme stability and optimum comfort.
In the Box Bundle Items SR 4500 Rack Mount True Diversity UHF Wireless Receiver twsvtyxcevsaeavveacvverf PT 4500 Wireless Bodypack Transmitter HC577 Headworn Microphone - W 77/P Flesh Tone Foam Windscreen
Also Includes - Stand Adapter
- 19" Rack Mount Kit
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG WMS4500 HC577 Set Reference Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SR 4500 Rack Mount True Diversity UHF Wireless Receiver
| Modulation | FM | | Carrier Frequency | Band 7 / 500 - 530 MHz | | Modulation | FM | | Deviation | Rated: 20 kHz at 1 kHz (sine wave) | | Squelch Threshold | Adjustable between -70 and -100 dBm | | Audio Frequency Response | 35 Hz - 20 kHz | | Total Harmonic Distortion (THD) | < 0.3% (at 1 kHz) | | Signal to Noise Ratio | 120 dBA | | Connectors | 1 x 3-Pin XLR Output (balanced)
1 x 1/4" TS Output (unbalanced) | | Current Consumption | 400 mA typical | | Power Requirement | 12 VDC from external power supply | | Dimensions (WxHxD) | 7.8 x 1.7 x 7.4" (200 x 44 x 190 mm) | | Weight | 2.2 lb (972 g) | - PT 4500 Wireless Bodypack Transmitter
| Modulation | FM | | Carrier Frequency | Band 7 / 500 - 530MHz | | RF Output | 50mW | | Audio Frequency Response | 35Hz - 20kHz | | Total Harmonic Distortion (THD) | < 0.3% | | Signal to Noise Ratio | > 120dBA | | Battery | 2 x AA Batteries, Up to 15 Hours
Optional BP 4000 Battery, Up to 12 Hours | | Dimensions (HxWxD) | 2.8 x 3.5 x 1" (70 x 90 x 25mm) | | Weight | 3.4 oz (95g) | - HC577 Headworn Microphone
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 68 dB | | Maximum Input Sound Level | 133 dB (for 1% THD) | | Power Requirements | 1.5 V to 12 V | | Output Impedance | < = 3.5 kohms | | Output Connectors | 3-pin mini XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 8.1 x 5.7" (205 x 145mm) | | Weight | 28 g (0.99 oz) | | | | Box Dimensions (LxWxH) | 8.0 x 5.6 x 2.75" |
