User Manual for Akitio 12TB Thunder2 Quad Mini Click to enlarge the picture
Contents of the user manual for the Akitio 12TB Thunder2 Quad Mini
- Product category: Hard Drive Enclosures & Docks Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Hard Drive Enclosures & Docks
 |
User manual for the Akitio 12TB Thunder2 Quad Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

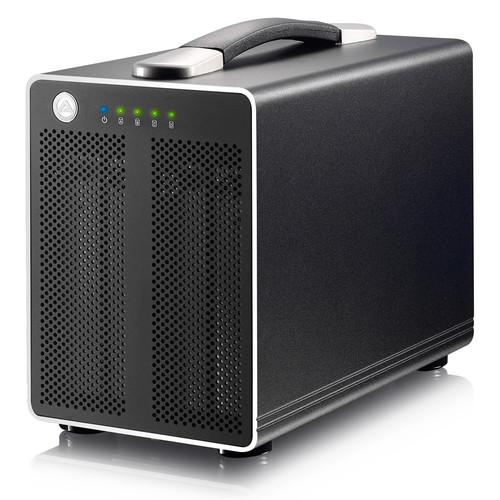

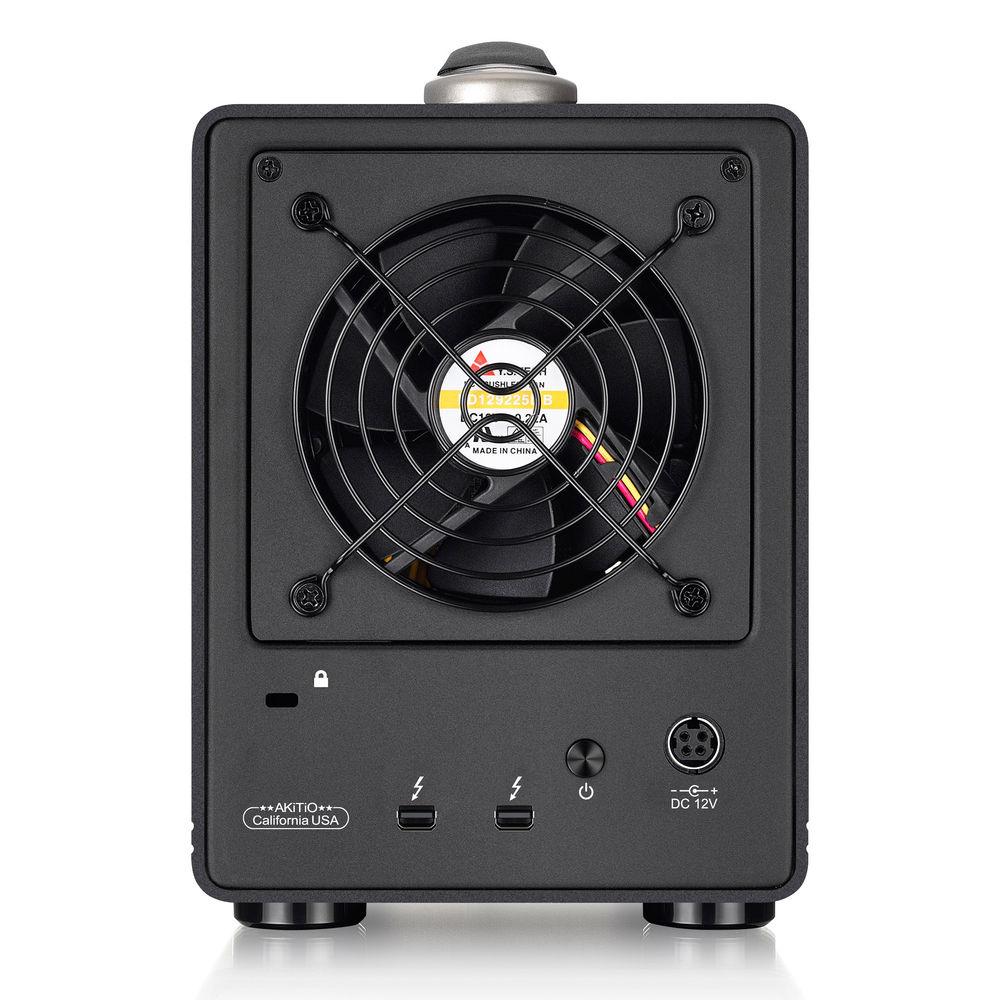

Product description Provided by third party: Faster than ever, you can now achieve speeds of up to 1375MB/s with this 4-bay Thunderbolt 2 technology storage enclosure. The removable trays allow for easy installation and replacement of the drives. They are designed for 2.5" SATA 6Gb/s drives, SSDs where speed is the priority and HDDs when it's important to maximize the storage capacity. An ultra durable aluminum casing provides efficient heat dissipation, plus a large rear fan keeps your drives cool during long hours of operation.
- Key Features
-
- Thunderbolt 2 interface for lighting fast transfer speeds of up to 20Gbps
- Comes with two Thunderbolt 2 ports, supporting storage and display
- Holds up to four 2.5" drives with SATA 6Gb/s interface
- Removable trays for easy SSD and/or HDD installation
- Supports AKiTiO Data Multiplier application
- Large fan for active cooling
- High-speed I/O performance
- By incorporating the awesome Thunderbolt 2 interface and combining it with four SSD drives in a RAID 0 software RAID, AKiTiO's Thunder2 Quad Mini is ready to deliver an extremely fast throughput performance of up to 1375MB/s. Even individually, the SATA 6Gb/s interface allows each drive to run at full SATA-III speeds.
- Dual Thunderbolt ports for daisy chain

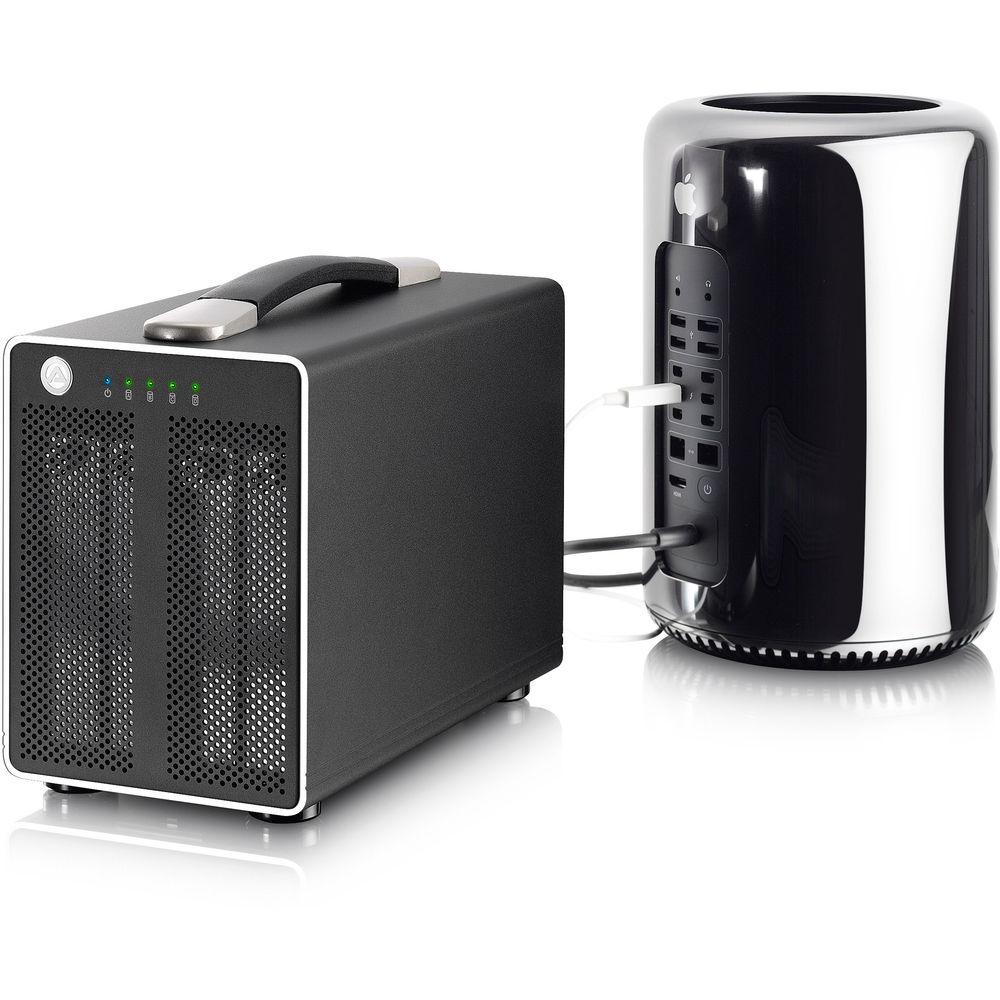

- The second Thunderbolt 2 port lets you daisy chain up to five Thunderbolt devices together. For example, you can attach additional external drives and even a display all connected to your computer through a single cable.
- 4K workflow with Thunderbolt 2 technology
- Thunderbolt 2 technology incorporates DisplayPort 1.2 support, which allows for video streaming to a single 4K video monitor. If you are a video editor, you can now use a single port to connect your external storage drives and a 4K display.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio 12TB Thunder2 Quad Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-TBQM-TIAA-AKT3UH Specs | | | Device Type | Hard drive array | | | | Built-In Devices | LED panel | | Installed Devices / Modules Qty | 4 | | Supported Devices / Modules Qty | 4 | | Supported Drives | SATA-600 | | | | Total Array Capacity | 12 TB | | HDD Array External Interface | Thunderbolt 2 | | | | Type | SATA | | Interface Type | SATA 6Gb/s | | Data Transfer Rate | 600 MBps | | Max Storage Devices Qty | 4 | | | | Type | SSD | | Capacity | 4 x 3 TB | | | | Expansion Bays | 4 (total) / 0 (free) x internal - 2.5" | | Interfaces | 2 x Thunderbolt 2 | | | | OS Required | Apple MacOS X 10.9 or later, Microsoft Windows 7 / 8 / 10 | | | | Features | Aluminum enclosure, built-in cooling fan, daisy chaining support | | Cables Included | 1 x Thunderbolt cable | | Compliant Standards | VCCI, FCC | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V - 50/60 Hz | | | | Width | 3.8 in | | Depth | 7.5 in | | Height | 4.5 in | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 41
