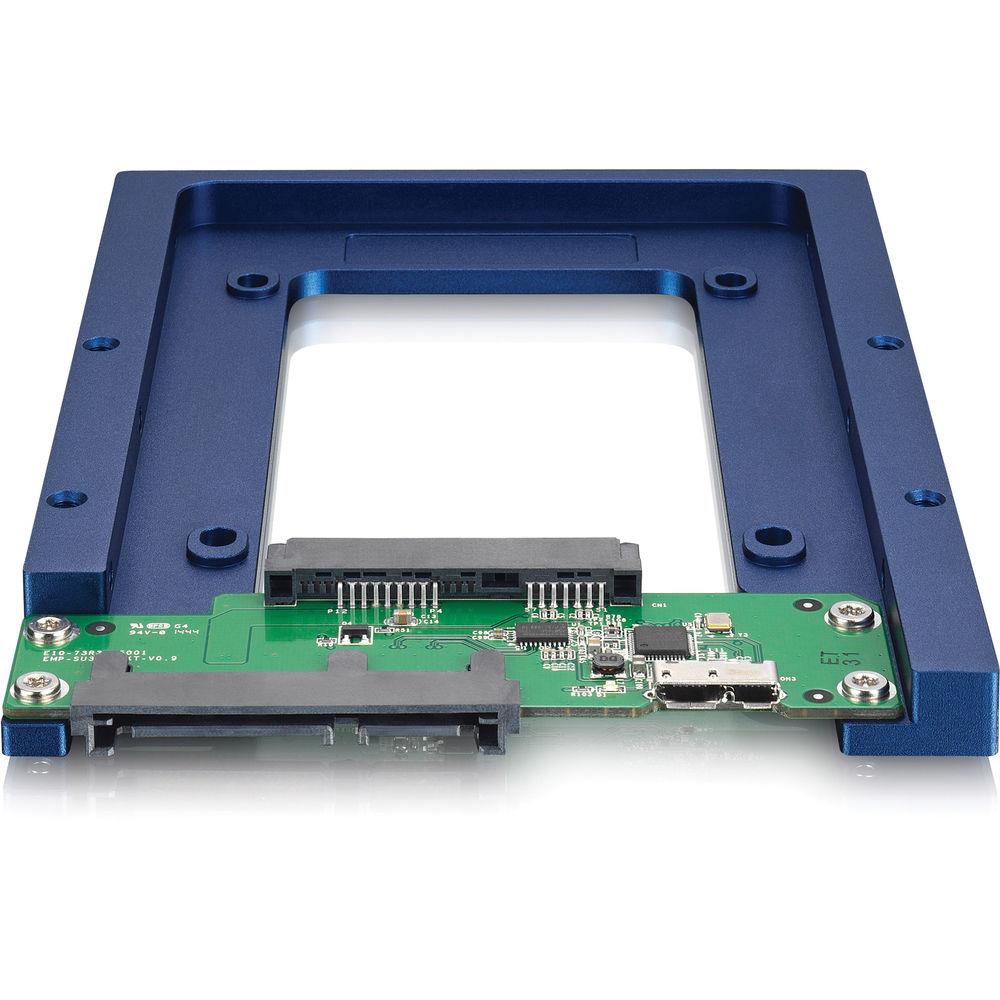

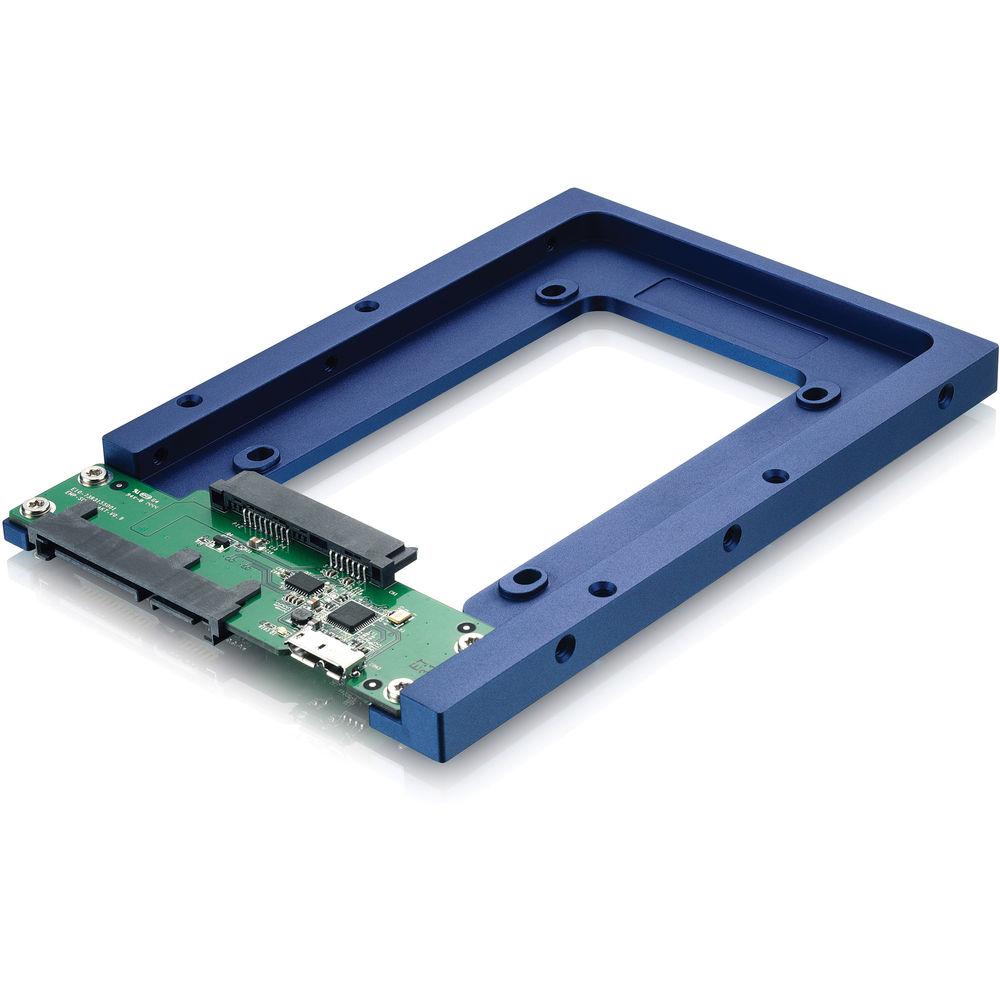

Product description The Neutrino Bridge from Akitio lets you use your 2.5" drive as an external drive for a notebook or in a desktop's 3.5" drive bay. This two-in-one product is designed to connect internally via a SATA interface or externally using its micro-B USB 3.1 port with 10 Gb/s speeds. The Neutrino bridge is also compatible with Akitio's Neutrino line of external storage devices. - USB 3.1 interface with transfer speeds up to 10 Gb/s
- Dual-interface with USB 3.1 and SATA III connectivity
- Backwards compatible with USB 3.0 and USB 2.0 devices
- Supports SATA III drives for increased transfer rates
- Fully bus-powered over USB (can be used without power adapter)
- LED activity indication for USB interface
UPC: 888038001196 In the Box Akitio Neutrino Bridge (Enclosure Only) Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Neutrino Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-NEUB-U3AB-AKT Specs | Case Material | All aluminum frame | | Application | • 2.5" SATA III (6 Gb/s) SSD or HDD
• Height 7 mm - 15 mm | | Interface/Ports | • 1 x Micro-B USB 3.1 SuperSpeed port
• 1 x SATA III 7+15-pin connector | | Data Transfer | USB 3.1 up to 10 Gb/s (1,250 MB/s)
USB 3.0 up to 5 Gb/s (625 MB/s)
SATA III up to 6 Gb/s (750 MB/s) | | PC System Requirements | USB 3.1: Windows 7 or above
USB 3.0: Windows XP or above
Computer with USB 3.1 or USB 3.0 connector | | Mac System Requirements | USB 3.1: Mac OS 10.10.2 or above
USB 3.0: Mac OS 10.7 or above
Computer with USB 3.1 or USB 3.0 connector | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 5 to 95% (non-condensing) | | Power Supply | USB: Bus Power 5 V / 900 mA
(host computer has to provide sufficient USB bus power)
SATA: Requires SATA power cable | | Dimensions | 5.79 x 4.00 x 0.39" / 14.7 x 10.2 x 1.0 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.7 x 6.5 x 1.5" |
