User Manual for Akitio Node Lite Thunderbolt 3 PCIe Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Akitio Node Lite Thunderbolt 3 PCIe
- Product category: Expansion Chassis Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Expansion Chassis
 |
User manual for the Akitio Node Lite Thunderbolt 3 PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

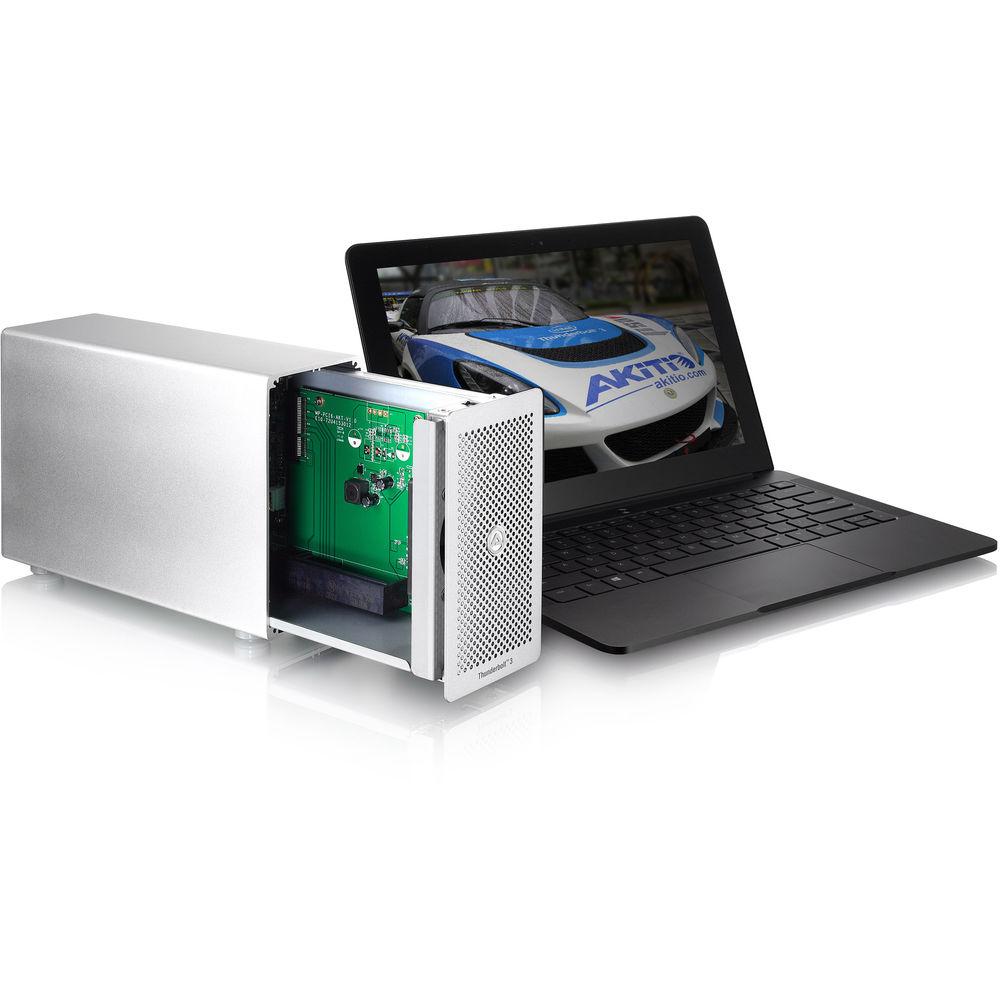

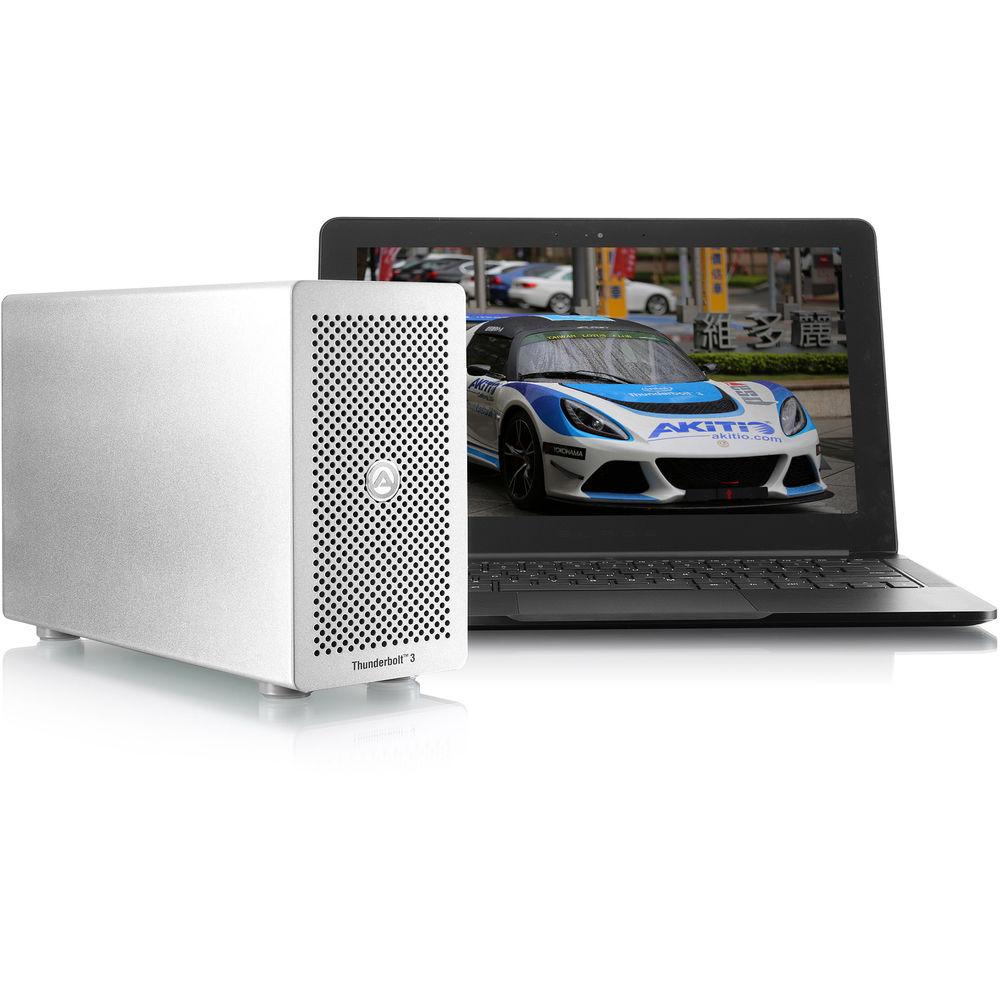

Product description The AkiTio Node Lite Thunderbolt 3 PCIe Expansion Chassis provides one PCIe 3.0 x16 slot for Thunderbolt 3 systems. The slot is compatible with half-length, full-height, and double-width PCIe cards, supporting up to 25W of power. The Node Lite comes with a DisplayPort 1.2 output for expanding a system's onscreen workspace as well as a second Thunderbolt 3 port that lets the system daisy chain with up to five Thunderbolt devices. Each of the two Thunderbolt 3 ports transmits data at a rate of up to 40 Gb/s and offers a USB Type-C design, so you can connect the provided Thunderbolt 3 cable on the first try. - Supports PCIe Gen 3.0 x4 Cards
- The PCIe x16 slot accepts half-length, full-height, and double-width cards and provides a maximum of 25W. Thunderbolt 3 offers four PCIe Gen 3 lanes and transfers data at up to 40 Gb/s to provide ample bandwidth for both the internal PCIe card as well as any additional Thunderbolt devices in the daisy chain.
- Thunderbolt 3
- Thunderbolt 3 features a USB Type-C interface and brings speeds of up to 40 Gb/s, creating one compact port that does it all - delivering a fast, versatile connection to any dock, display, or data device. This interface connects to Thunderbolt devices, displays, and USB devices. A single cable now provides ample data and video bandwidth, while also supplying power to bus-powered devices.

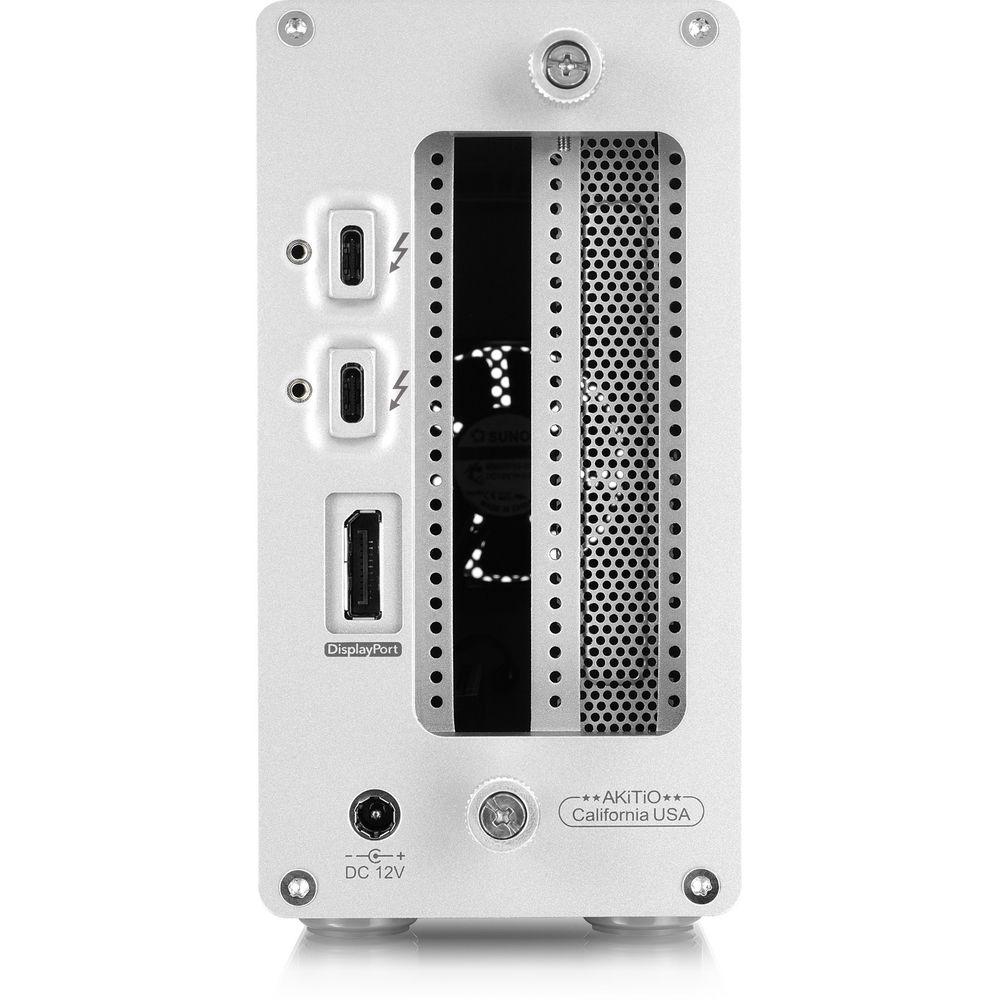

The Node Lite has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy-chained), USB 3.1 (10 Gb/s), and DisplayPort devices. - DisplayPort
- The DisplayPort connector makes it easy to connect an additional monitor to extend your workspace. This video output frees up the second Thunderbolt 3 port for daisy-chaining with other Thunderbolt 3 devices.
UPC: 880380026742 In the Box Akitio Node Lite Thunderbolt 3 PCIe Expansion Chassis Power Adapter Thunderbolt 3 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Node Lite Thunderbolt 3 PCIe Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-T3NL-T3DIY-AKTU Specs | | | Expansion Slots | 1 x PCIe x16 | | Ports | 2 x USB Type-C Thunderbolt 3
1 x DisplayPort 1.2 | | Data Transfer Rates | Thunderbolt 3: 40 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 6 A | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 95% | | | | Construction Material | Aluminum | | Certifications | CE, FCC, VCCI, as per Manufacturer | | Dimensions | 9.2 x 5.9 x 3.0" / 23.4 x 15.0 x 7.6 cm | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 12.992 x 10.236 x 4.173" |
