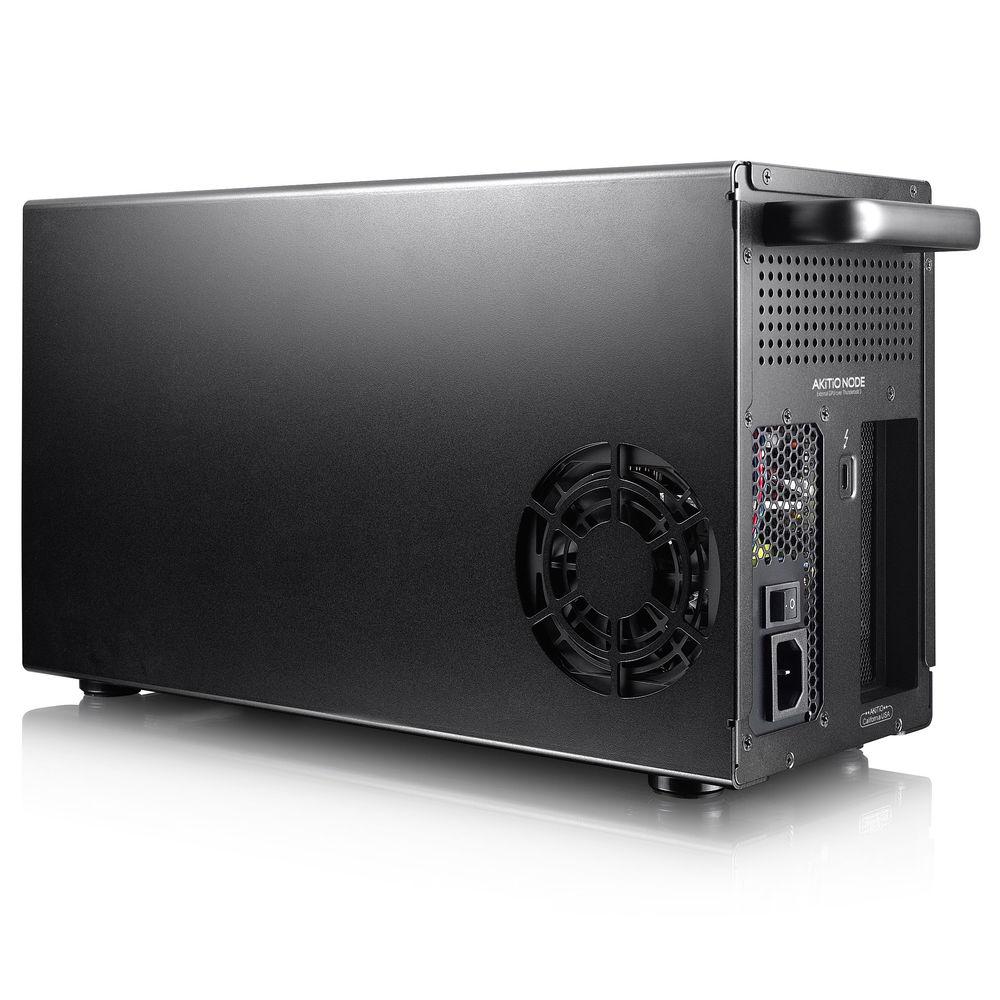

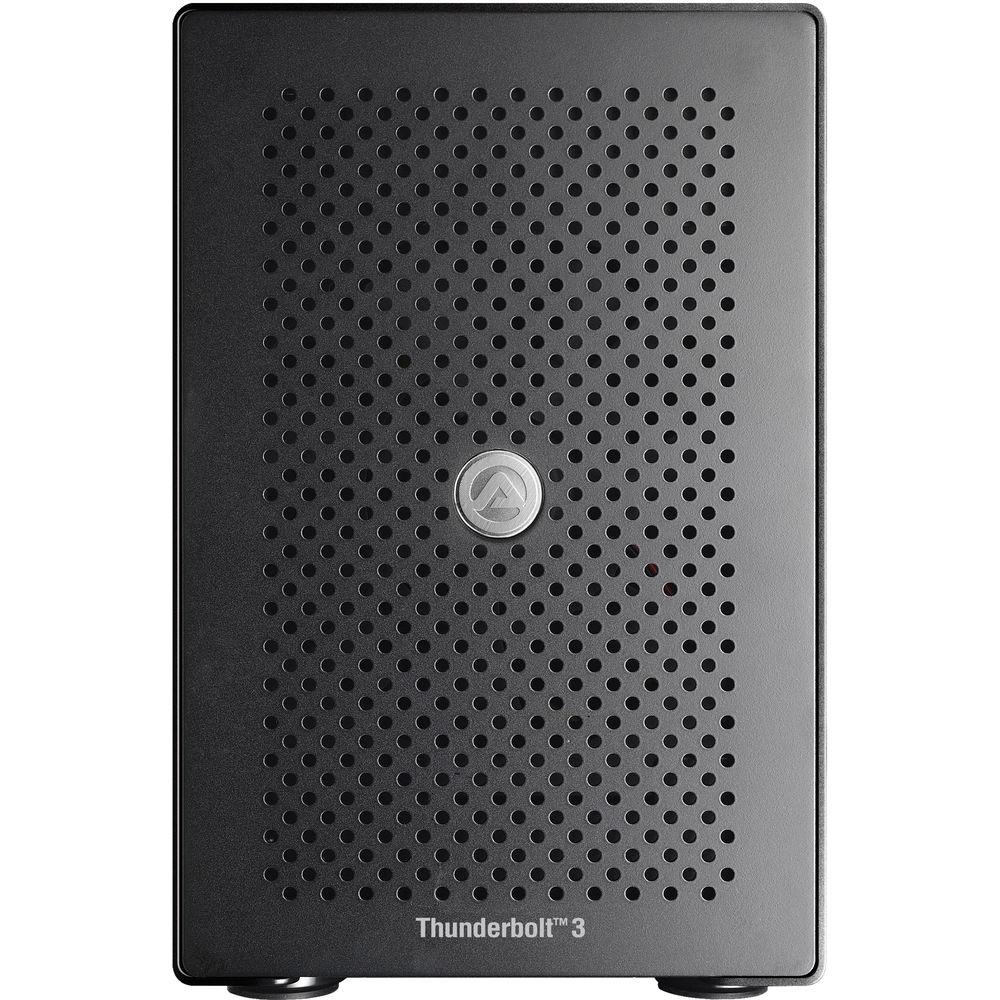

User Manual for Akitio Node Thunderbolt 3 External PCIe Box for GPUs

Click to enlarge the picture
Akitio Node Thunderbolt 3 External PCIe Box for GPUs Contents of the user manual for the Akitio Node Thunderbolt 3 External PCIe
  • Product category: Expansion Chassis Akitio
  • Brand: Akitio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Akitio Expansion Chassis

Akitio Node Thunderbolt 3 External PCIe Box for GPUs Akitio Node Thunderbolt 3 External PCIe Box for GPUs Akitio Node Thunderbolt 3 External PCIe Box for GPUs Akitio Node Thunderbolt 3 External PCIe Box for GPUs Akitio Node Thunderbolt 3 External PCIe Box for GPUs Akitio Node Thunderbolt 3 External PCIe Box for GPUs
User manual for the Akitio Node Thunderbolt 3 External PCIe contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Akitio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!



Product description

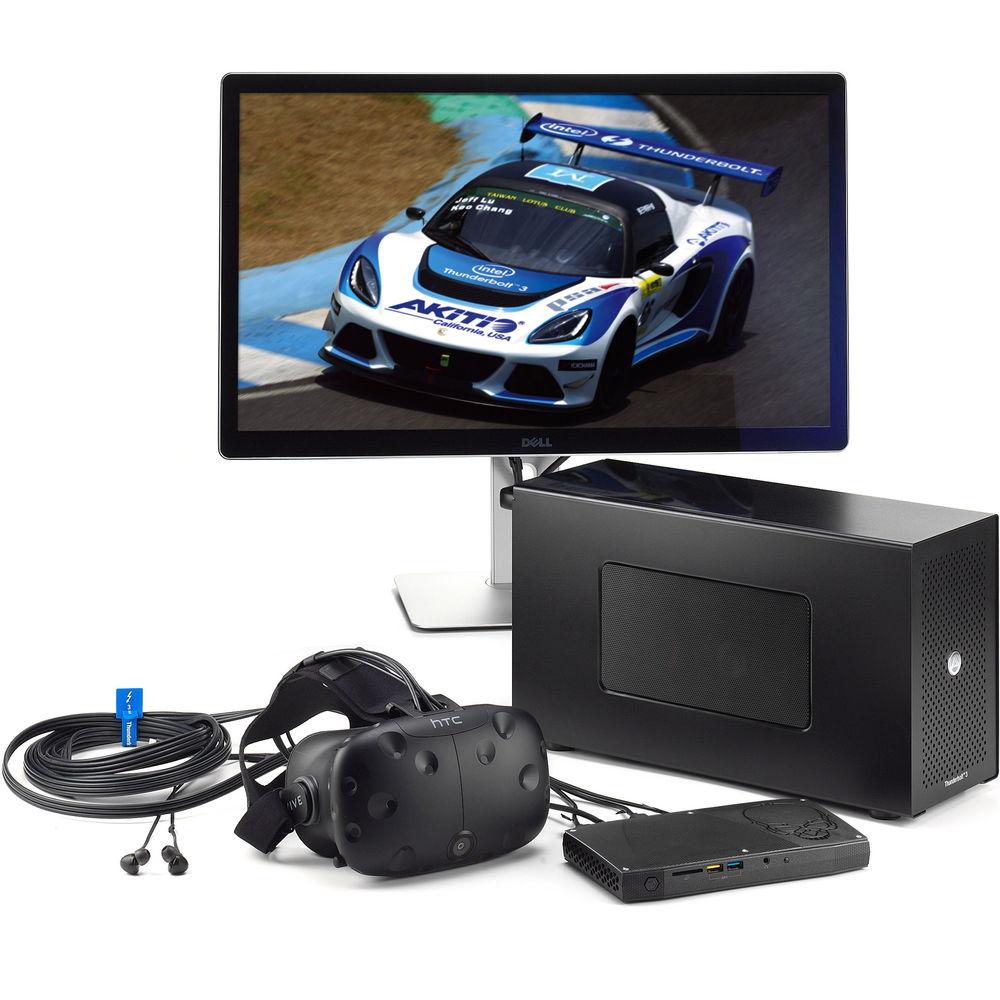

Connect an external graphics card to your computer using the power of Thunderbolt 3 with the Node Thunderbolt 3 External PCIe Box for GPUs from AKiTiO. Once connected, your system will be equipped with additional GPU power, enabling it to do things that are normally handled by a high-end workstation or gaming computer. If you're a video editor or colorist, a dedicated GPU helps reduce the time it takes to render footage and for VR enthusiasts, your system is better equipped to handle headsets and higher framerates. This housing utilizes a PCIe x16 slot that can support a full-length, full-height, and double-width cards and operates using an integrated 400W power supply. Included is a Thunderbolt 3 / USB Type-C cable.

General Features

  • Thunderbolt 3 for fast transfer speeds up to 40 Gb/s
  • One PCIe 3.0 x16 slot supporting full-length, full-height, and double-width cards
  • For use with standard and large graphics cards
  • Built-in 400W SFX power supply helps provide extra power to the GPU
  • PCIe 3.0 x16 slot supplies up to 75W of power
  • Four lane PCI Express 3.0 compliant interface

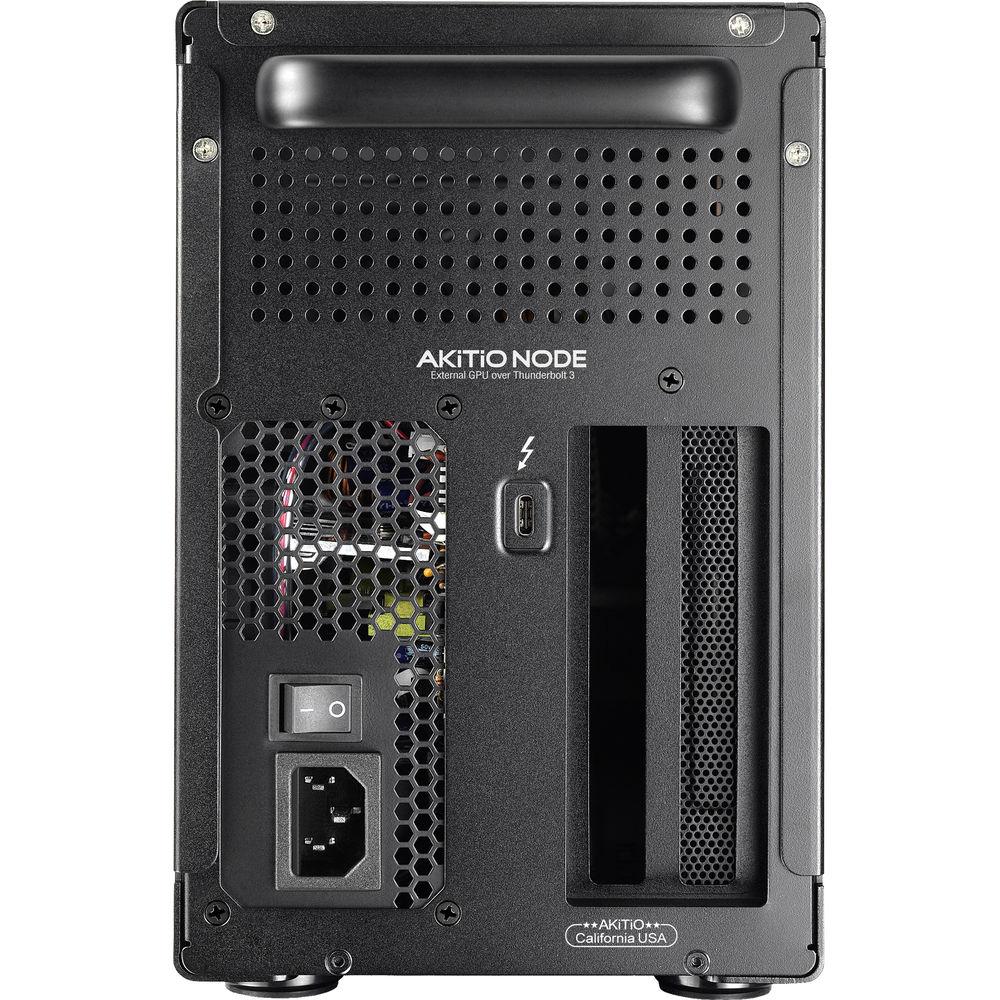

  • Removable back panel for double-width cards
  • Carry handle to easily transport the device
    Supports Standard and Large PCIe Gen3 x4 Cards
  • The PCIe (x16) slot accepts full-length, full-height, double-width cards with enough space available inside the enclosure for both standard and large graphics cards. The four PCIe 3.0 lanes and the Thunderbolt 3 interface are capable of transfer rates up to 40 Gb/s.
    400W SFX PSU

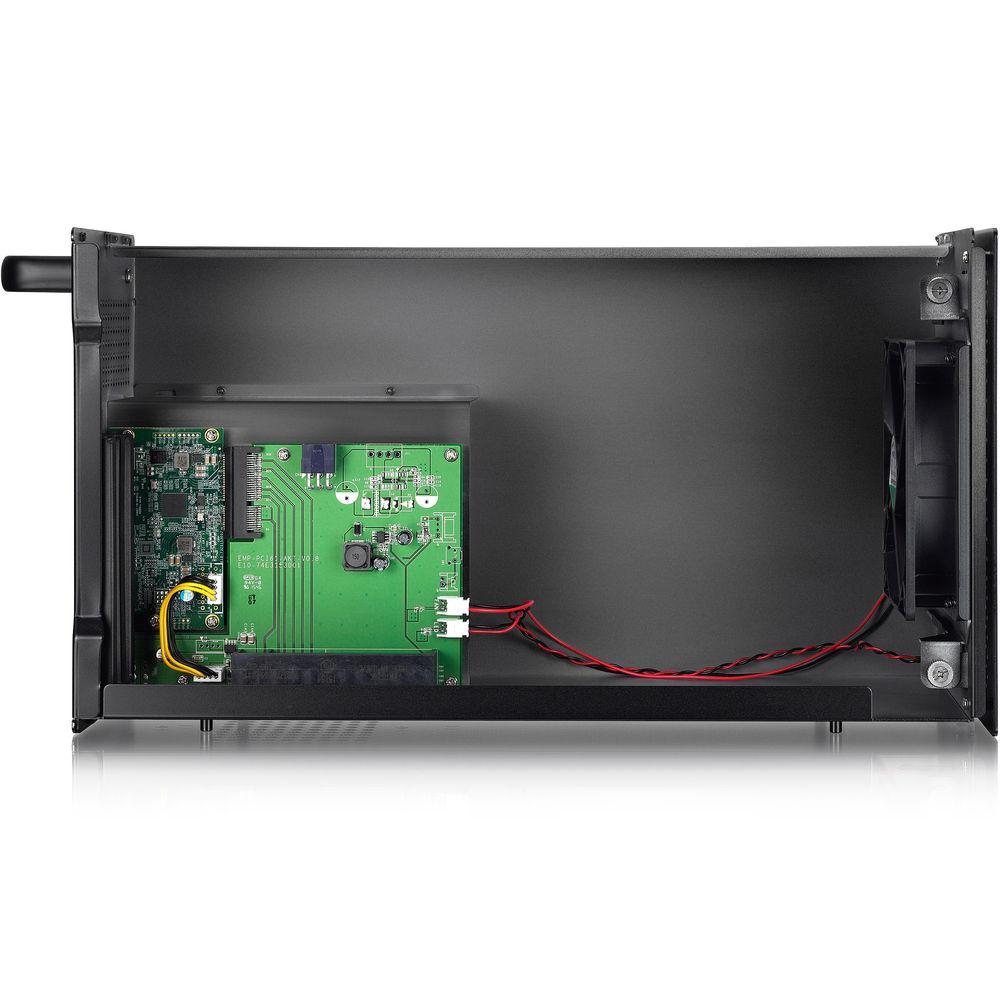

  • The built-in power supply provides enough power for the AKiTiO Node (~10W) as well as for graphics cards. If the standard 75W through the PCIe slot is insufficient, two extra pairs of 8-pin power connectors are available inside the AKiTiO Node that can be connected to the GPU, providing a total of about 390W.
    Thunderbolt 3
  • Thunderbolt 3 brings Thunderbolt to USB Type-C at speeds up to 40 Gb/s, creating one compact port that does it all - delivering a fast and versatile connection to virtually any dock, display, or data device. In combination with the AKiTiO Node, this makes it possible to upgrade your regular laptop or mini-PC and achieve a performance that usually requires high-end workstations or specialized gaming computers.
UPC: 888038002346 In the Box Akitio Node Thunderbolt 3 External PCIe Box for GPUs
  • Thunderbolt 3 / USB Type-C Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Akitio Node Thunderbolt 3 External PCIe Box for GPUs in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Akitio AK-NODE-T3IA-AKTU Specs

    Expansion Slots 1 x PCIe 3.0 x16
    Ports 1 x USB Type-C Thunderbolt 3
    Power Source Type 400 W Internal PSU
    Weight 8 lb / 3.6 kg
    Package Weight 13.6 lb
    Box Dimensions (LxWxH) 23.15 x 13.386 x 9.528"
