User Manual for Akitio SK-3501 U3.1 USB 3.1 Gen 2 Type-C Hard Drive Enclosure Click to enlarge the picture
Contents of the user manual for the Akitio SK-3501 U3.1 USB 3.1 Gen
- Product category: Hard Drive Enclosures & Docks Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Hard Drive Enclosures & Docks
 |
User manual for the Akitio SK-3501 U3.1 USB 3.1 Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

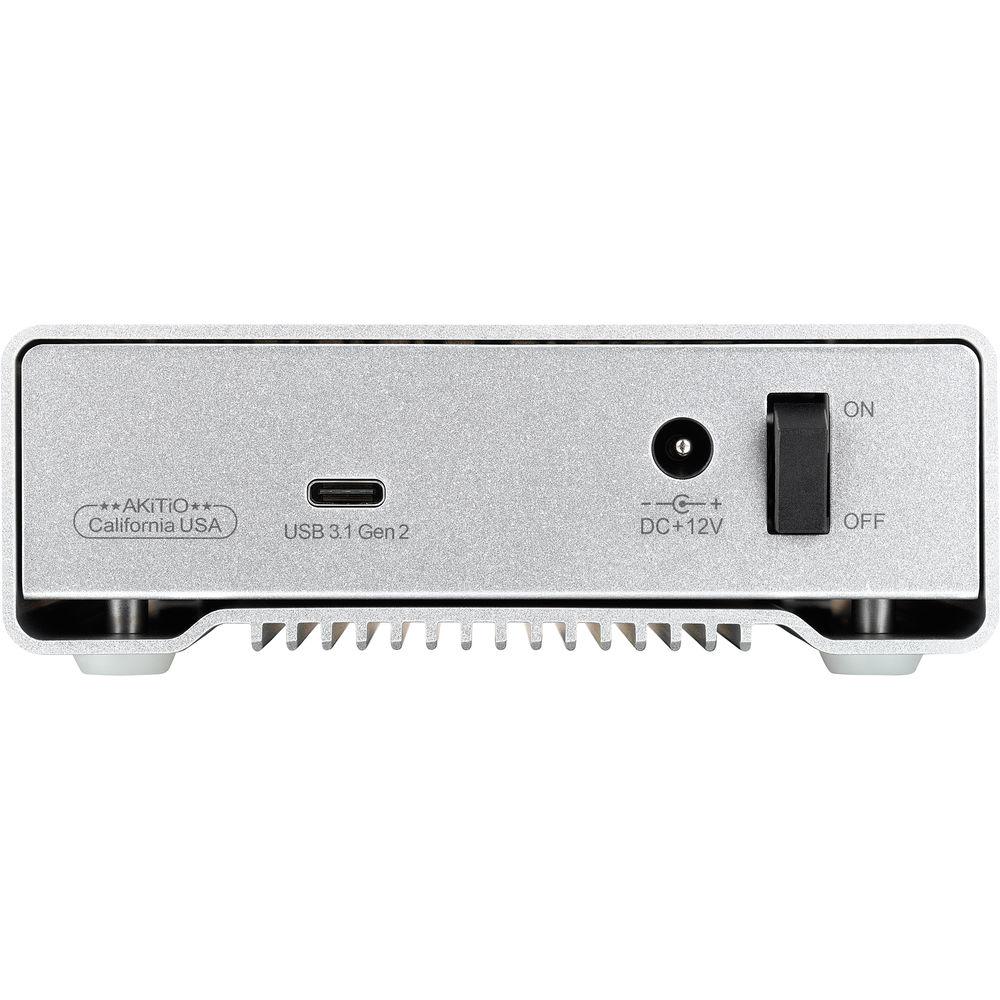

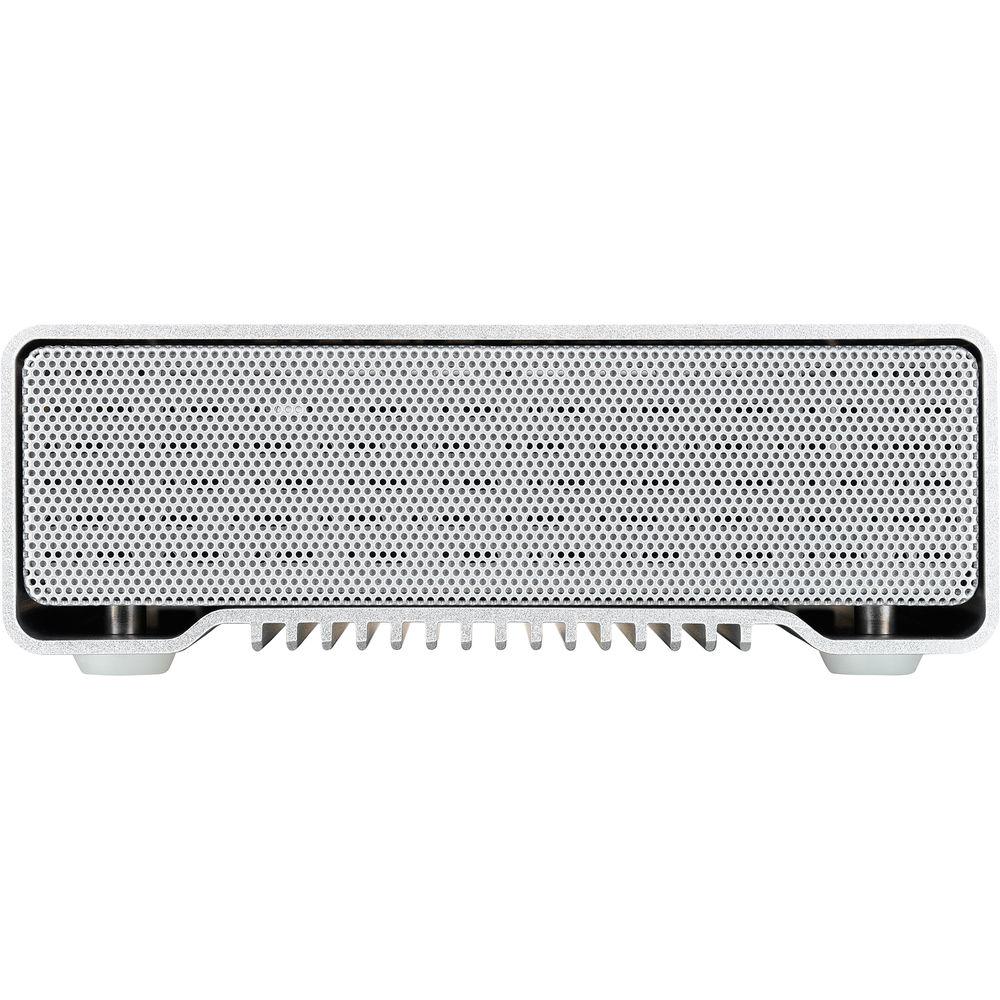

Product description Connect a single 3.5" or 2.5" SATA III hard drive to your USB Type-C system using the SK-3501 U3.1 USB 3.1 Gen 2 Type-C Hard Drive Enclosure from Akitio. The fanless aluminum enclosure features passive cooling using a large heatsink and can accommodate drives ranging in size from 80GB to 8TB. Furthermore, in addition to providing transfers speeds of up to 10 Gb/s, the USB 3.1 Gen 2 Type-C interface also supports Power Delivery and provides up to 15W of power to compatible laptops for device charging.
Akitio's SK-3501 U3.1 is compatible with USB 3.1 Gen 1 and may be used on USB Type-A systems via a USB Type-C to Type-A adapter. Supported operating systems include Windows 7 and later, as well as macOS 10.12 and later. Included is a USB Type-C to Type-C cable and a power adapter. Please note that the power adapter must always be used and that this device is not powered by the USB bus. Protection is provided by a limited 2-year warranty. General Features - 10 Gb/s USB 3.1 Gen 2 Type-C interface
- Supports the Universal Attached SCSI Protocol (UASP)
- USB power delivery provides 15W to compatible laptops
- Can house a single 2.5" or 3.5" SATA drive
- Supports SATA III 6 Gb/s drives
- Reversible USB Type-C connector
- Large heatsink for passive cooling
- Durable all aluminum enclosure
- 10 Gb/s USB 3.1 Gen 2
- By incorporating 10 Gb/s USB 3.1 Gen 2 technology, the SK-3501 U3.1 is able to deliver up to twice the speed of the USB 3.1 Gen 1 connection, which runs at only 5 Gb/s. However, the SK-3501 U3.1 is compatible with USB 3.1 Gen 1 and may also be used with USB Type-A via an adapter cable.
- Reversible USB Type-C Connector with Power Delivery

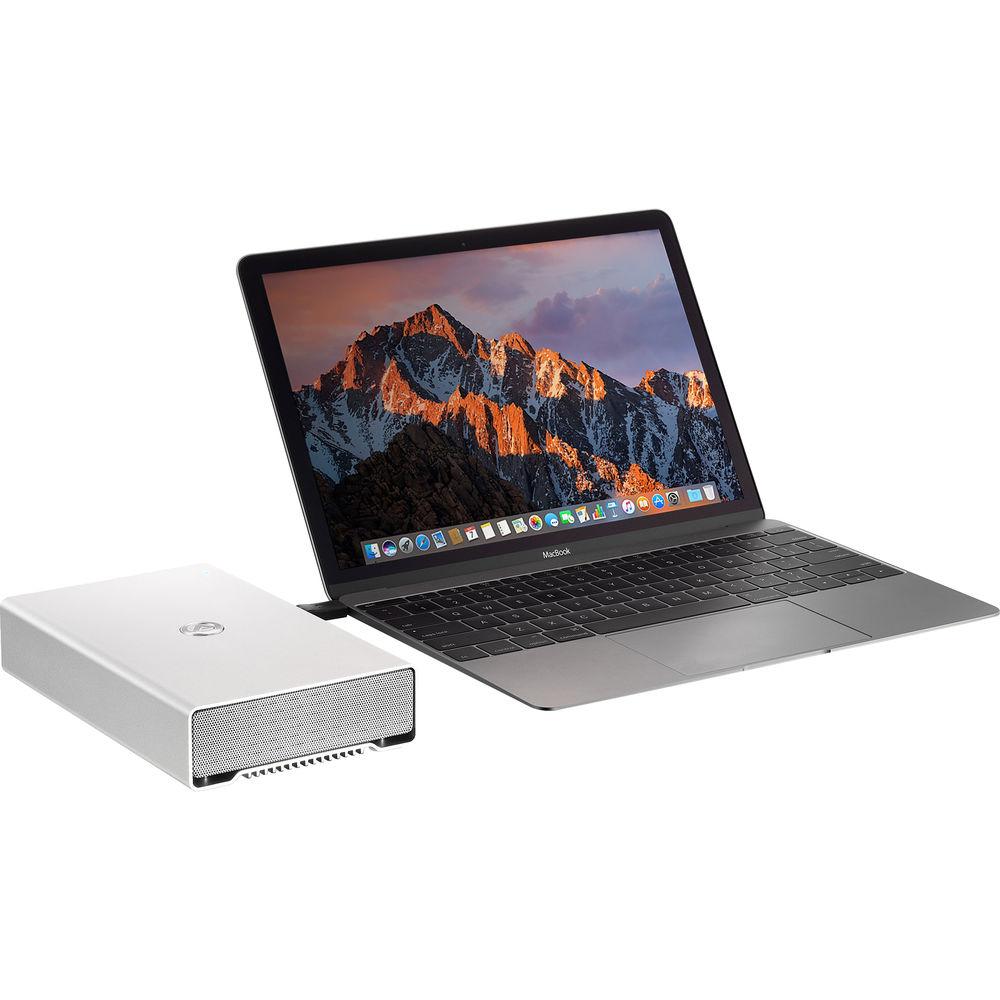

- The reversible USB Type-C connector enhances ease of use for connecting USB devices with a focus on minimizing user confusion for plug and cable orientation. The SK-3501 U3.1 supports power delivery (PD) over USB Type-C, providing 15W of power to laptops like the MacBook Pro (Late 2016) that support charging from a 5V/3A power source. This allows you to work with the external drive without the battery levels of your laptop dropping, even though the laptop is not plugged into any other power source.
UPC: 888038002513 In the Box Akitio SK-3501 U3.1 USB 3.1 Gen 2 Type-C Hard Drive Enclosure USB Type-C to Type-C Cable (3.3') Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio SK-3501 U3.1 USB 3.1 Gen 2 Type-C Hard Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-SM3-U31AS-AKTU Specs | | | Number of Bays | 1 x 2.5"/3.5" | | Maximum Filled Capacity | 8 TB | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Portable | | UASP Support | Yes | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | Windows 7 or Later
macOS 10.12 or Later | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.9 A | | | | Encryption | None | | Security Features | None | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Material of Construction | Aluminum | | Cable Length | 3.28' / 1 m | | Cooling | None | | Status Monitoring | None | | Dimensions (W x H x D) | 4.5 x 1.6 x 7.6" / 11.4 x 4.1 x 19.3 cm | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 3.5" |
